EBS Billy Sheehan Signature Drive

12 ratings | read 1 review

A pedal developed with Billy Sheehan that has unlimited tonal options.

The Billy Sheehan Signature Drive pedal was developed by EBS in close co-operation with Billy himself. It is based on the concept of mixing together a clean signal with a dist...

Read full description

See the specifications

Save

4 Artists Use This
Billy Sheehan

"My high end pickup, I go into my EBS signature drive, which has clean tone, and mixes in distortion to whatever level you want, so you never lose your initial bass tone," says Billy Sheehan, at 5:50 in this Premier Guitar rig rundown.
more
Steve DiGiorgio

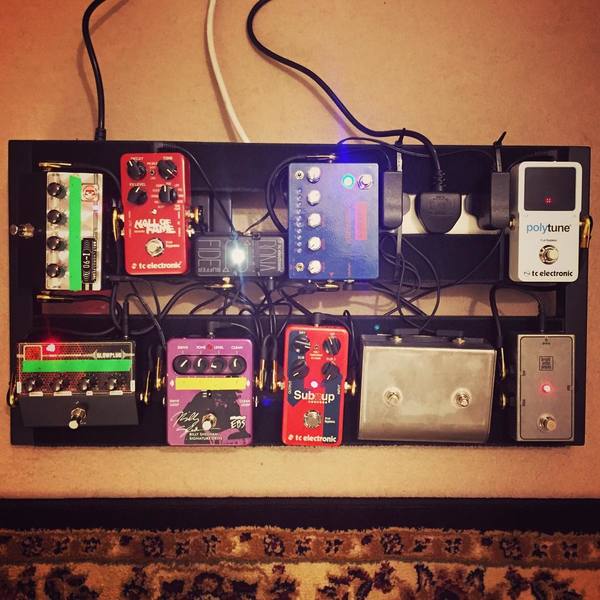

In this photo from Steve's Facebook page, one can see an EBS Billy Sheehan drive at the top of the pedalboard
more
Tom Doyle

He posted a picture of his pedalboard to Instagram
more
Bohte "BOH" Saisuke

Boh recently bought a few of the new, 2016 Bill Sheehan Signature Drive DELUXE pedals and replaced his original, purple versions. This photo shows that he is experimenting with having both versions on the board. Boh's Twitter Translated Comment "The distortion one was returned to the old."
more

More Bass Effects Pedals

Details

Description

A pedal developed with Billy Sheehan that has unlimited tonal options.

The Billy Sheehan Signature Drive pedal was developed by EBS in close co-operation with Billy himself. It is based on the concept of mixing together a clean signal with a distorted to be able to preserve low frequencies and find balance between distortion and definition.

Built-in Compressor
The option to add compression makes it possible to keep the note differentiation clearly audible even at heavily distorted sounds. There are three modes for the built-in compressor; High, Mid and Off. For the Mid setting, there's an additional trim pot inside to set the level. There's also a trim pot to set the Threshold for the compressor.

Clean Loop, Drive Loop - Endless possibilities!
The Billy Sheehan Signature Drive offers unlimited pre-post mix tone shaping by including a clean loop and a drive loop. It lets the user insert any other effect they wish within each loop to create your own signature effect! For example, connect an external EQ to the Drive Loop and shape the character of the distortion any way you want, or turn off the built-in compressor if you prefer to use a different type of compressor and put in the Clean Loop.

Controls
With the new extended size box from EBS, there are controls for Drive (gain for the overdrive engine), Tone (sets the frequency scoop for the drive), Level (sets level for drive channel post Drive Loop and pre final compressor) and Clean (sets level for the clean channel, post Clean Loop and pre final compressor).

Specifications

Drive, Tone, Level and Clean controls.
Three Compressor Modes - High, Mid, Off
Clean Loop and Drive Loop (connect a Y-cable for send and return).
Type: Analog Effect, Mechanical Switching
9V DC (Battery or Power Supply)

1 review

clinton_summers

246

This is a great overdrive pedal.

The drive and clean loop outputs should be on every pedal.

+1

over 1 year ago
