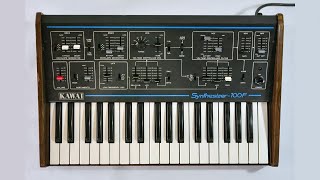

Although Kawai began manufacturing synthesizers under the company name of Teisco, they soon took over as Kawai which resulted in synths like the S100F above which can be found labeled either Teisco or Kawai (as pictured above). The Synthesizer 100F is a very good and classic single-vco monophonic analog synth. It has a small but usable 37 note keyboard. Sawtooth, square and noise waveforms and external sounds can be run through the synth's filters and envelopes and mixed with the oscillator.
Although there is only one oscillator, there's plenty of modulation ability to really liven up the sound. There's an LFO which can modulate the VCO, VCF and VCA. The VCF resonant filter is good and can be modulated by the LFO, Envelope 1, the external input or even the VCO! There's also a VCA section with Attack, Decay, Sustain and Release controls and finally there's a Hi-Pass filter. There is also a portamento effect for that final crucial analog synth effect! A typical analog synth with just about all the features and functions you'd need. It's got the classic wood side panels and a front panel layout that leads to very straight forward programming resulting in good analog bass, lead and synth sounds.
Specifications Polyphony - Monophonic Oscillators - 1 VCO: saw, square, noise, external audio in (2', 4', 8', 16', 32', 64' and "low" pitches) LFO - Saw, Triangle, square waveforms with adjustable Rate Filter - Low Pass resonant filter and High Pass non-resonant filter VCA - Simple AD, ADS or ADR envelope modes Keyboard - 37 notes Memory - None Control - CV/Gate Date Produced - 1977
While it only got a single oscillator it has plenty of modulation possibilities. The oscillator can be tuned so low that it acts like an LFO and you can modulate the self oscillating filter's cutoff with it. On top of that you can still use the LFO to modulat your oscillator which acts as an LFO. Real analog FM. You can also process external audio trough the filter. This synth is a bit overlooked. It might look a bit like an ordinary monophonic analog synth but it is so much fun to tweak and you get exciting results.
