Elation Seven Batten 72 LED Batten Fixture - What To Know & Where To Buy

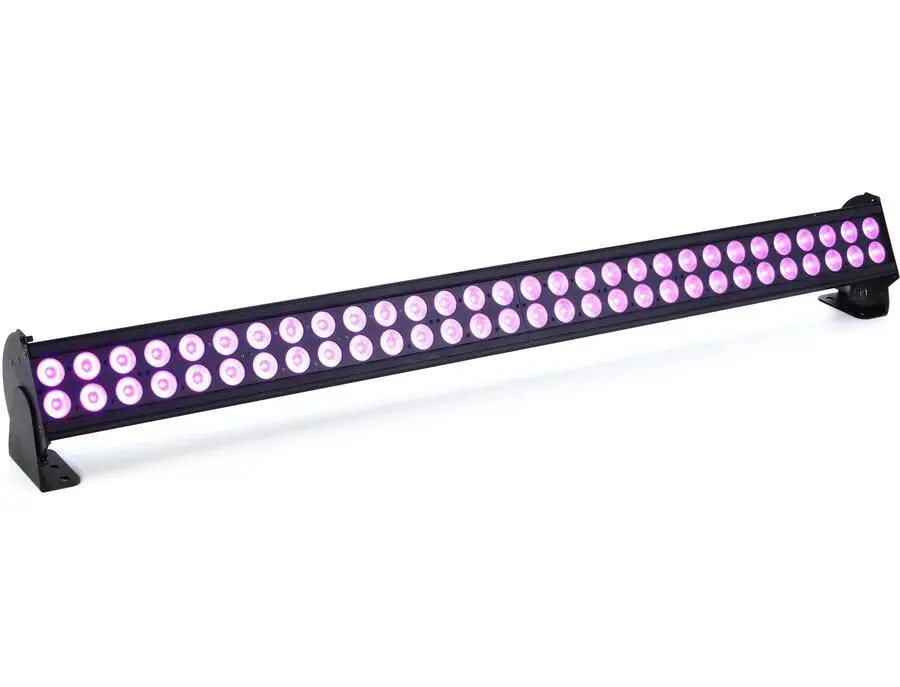

Elation Seven Batten 72 LED Batten Fixture main image

Pricing and availability

We compare 600+ stores and found this item at 1 store. Prices updated January 7, 2026.

Store

Reviews

Price

$5,136.00

View Deal

Price History

Based on price data from 1 merchant for "Elation Seven Batten 72 LED Batten Fixture". Prices shown reflect NEW condition. Tracking began Apr 2, 2026.

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

Illuminate your stage with the dynamic Elation Seven Batten 72 LED Batten Fixture, designed to bring vibrant color and captivating effects to any live venue or theatrical setting. This powerhouse lighting solution offers an impressive 6-foot display of 60 high-intensity 25-watt LEDs, each equipped with 7-in-1 RGBAW + Lime + UV color mixing capabilities. Whether you're crafting an intimate atmosphere or a grand spectacle, this fixture provides the flexibility and control you need to create jaw-dropping visual experiences.

With its array of features, including 10 flippable pixel mapping zones and 12 internal programs, the Seven Batten 72 allows for unparalleled creativity. Each LED is independently controllable, giving you the freedom to adjust hue, saturation, and intensity to suit your specific design needs. The fixture's support for DMX Art-Net, Kling-Net, and RDM protocols ensures seamless integration with existing systems, while the user-friendly 4-button OLED display simplifies configuration and real-time adjustments.

Constructed with durability in mind, the Seven Batten 72 boasts a rugged die-cast aluminum housing and reliable locking power cable I/O terminals, making it a reliable choice for both floor and ceiling mounting. Plus, with manual tilt adjustments and a built-in gel/frost filter slot, installation is as effortless as it is efficient. Whether you're lighting a concert, theater production, or film set, the Elation Seven Batten 72 is your ticket to an unforgettable performance.

Key Features:

60 x 25W LEDs with 7-in-1 RGBAW + Lime + UV color mixing
Special RGB Seven 3-channel mode for dynamic white control
10 pixel mapping zones with 12 internal programs
3-/5-pin DMX and RDM compatibility with Art-Net and Kling-Net support
User-friendly 4-button OLED display
Rugged die-cast aluminum housing with locking power I/O terminals
220° manual tilting and gel/frost filter slot for easy installation

Product specs

Type	7-color Batten
DMX	3-pin XLR In/Out, 5-pin In/Out, RJ45 Ethernet
DMX Modes	12 DMX Modes, 78 Total Channels
LED	60 x 25W LEDs
LED Type	7-in-1, RGBAW+Lime+UV
Beam Angle	23°
Pan & Tilt	±220°, Manual Adjust
Power Consumption	614W Maximum
Power Supply	Indoor Locking Power Input, Ouput
Remote	Art-Net, Kling-Net, and RDM Supported
Height	9"
Width	72"
Depth	4.5"
Weight	58 lbs

FAQs

What are the main DMX connectivity options for the Elation Seven Batten 72 LED Batten Fixture?: The Elation Seven Batten 72 offers 3-pin and 5-pin XLR DMX In/Out, as well as RJ45 Ethernet connectivity, providing versatile options for integrating into various lighting setups.
How many LEDs are in the Elation Seven Batten 72, and what colors do they produce?: This fixture contains 60 LEDs, each rated at 25W, and features a 7-in-1 color system producing RGBAW+Lime+UV, allowing for a wide range of vibrant colors and effects.
Can the Elation Seven Batten 72 be controlled remotely?: Yes, the Elation Seven Batten 72 supports remote control via Art-Net, Kling-Net, and RDM, enabling flexible and advanced control options for lighting designers.
What is the beam angle of the Elation Seven Batten 72 LED Batten Fixture?: The beam angle of the Elation Seven Batten 72 is 23°, providing a focused and precise light output suitable for various stage and event lighting applications.
Does the Elation Seven Batten 72 support manual pan and tilt adjustments?: Yes, the fixture allows for manual pan and tilt adjustments with a range of ±220°, offering flexibility in directing the light output.

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Elation Seven Batten 72 LED Batten Fixture.

Comparisons

0 0

The Elation Seven Batten is recommended over Cameo Zenit W600 for better cyc lighting due to its linear design which provides more efficient coverage.
Source

Features and functionality

0 0

The Elation Seven Batten can provide a more uniform light distribution across a cyc, reducing the need for additional fixtures and minimizing gaps in coverage.
Source
0 0

Diffusers on LED fixtures like the Elation Seven Batten are designed to spread light horizontally (60°), enhancing blend, while keeping it narrow vertically (10°) for focused cyc lighting.
Source

Use cases and applications

0 0

For a 15x45 cyc, it's ideal to use 7 or 8 Elation Seven Batten fixtures, ensuring full coverage with no gaps for optimal lighting.
Source

User experience

0 0

Tight placement of fixtures, such as the Elation Seven Batten, close to the cyc is crucial for even lighting, especially when operating on a budget.
Source
