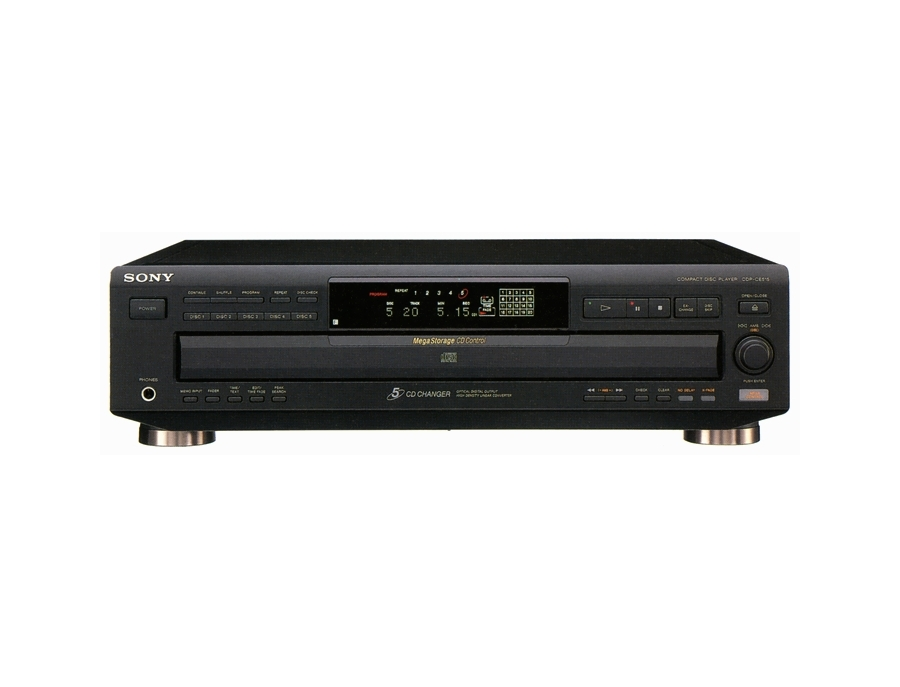

The CDP-CE515 Player by Sony.

Equipped with a Mega CD control function, another CDP-CE515 or CDP-CX200F can be connected as a cordless handset through the control A1 terminal and operated from the main body and remote control. The Mega CD Control allows two devices to be linked together to cross fade alternately. You can also choose between 30 seconds, 60 seconds, or 90 seconds at the beginning of a song and play it one after another in an up-tempo New Cross Fade Play.

The tray features a CD roulette system that allows up to five disks to be placed on the tray for program play across the disks, and a disk exchange function that allows new disks to be placed in an empty tray.

The D/A converter is equipped with a hybrid pulse D/A converter.

It is compatible with CD text. It is possible to display alphanumeric characters on the display part of the main body, and to display Chinese characters in addition to alphanumeric characters on the text display unit CTD-S100 (sold separately).

Multi-disk program with custom edit capability

It is equipped with functions such as Delete Play, Delete Bank, Music Scan and 6 mode repeat.

Equipped with an optical digital output terminal.

The control A1 terminal uses a monaural mini-plug to mini-plug cable.

Wireless remote control is included.

Attached remote control

Model Rating

Type CD Player

D/A converter Hybrid pulse D/A converter

Digital filter

Frequency characteristic 2 Hz to 20 kHz ± 0.5 dB

Dynamic range 98 dB or More (EIAJ)

Total harmonic distortion factor 0.0035% or less (EIAJ)

Wow and flutter Below the measurement limit (± 0.001% W. peak) (EIAJ)

Digital output Light : -18dBm (emission wavelength 660 nm)

Analog output 2Vrms

Headphone out 10 mW (32 Ω load)

Pwer 100 VAC, 50Hz/60Hz

Power consumption 11W

External dimensions Width 430x Height 120x Depth 395 mm

Weight Approx. 5.4 kg

Attachment Wireless Remote Control RM-DC53

Sold Separately Text Display Unit CTD-S100 (¥ 29,800)

Owner's manual
