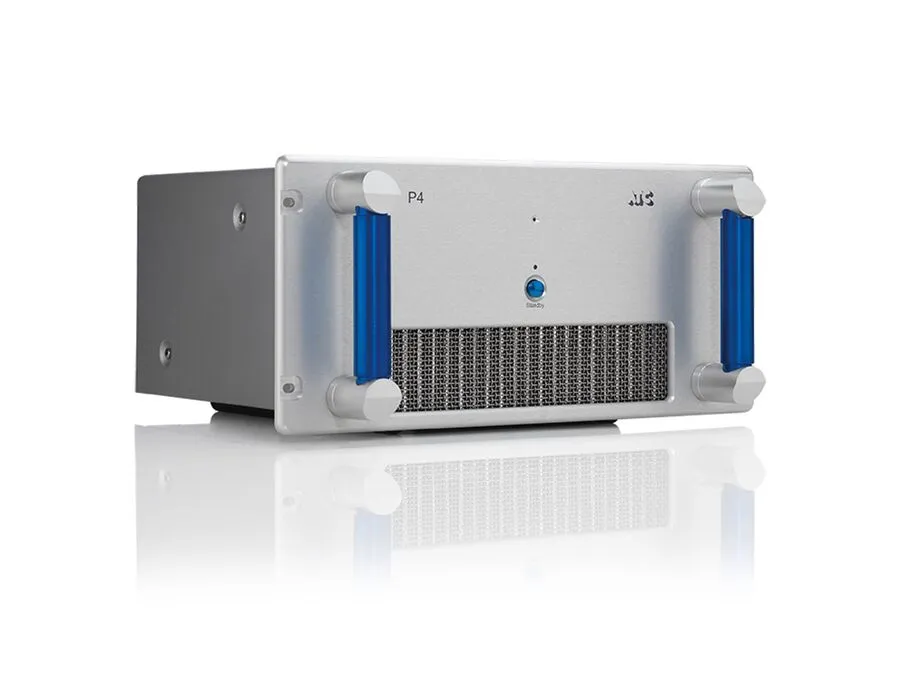

This page about ATC Loudspeakers P4 Power Amp is a stub. You can help improve it:
Pricing and availability
* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.
Description
- 4 channel 3-way mono-block design.
- ATC class A/B “Grounded Source Topology”.
- 850W total output.
- 4th order active crossovers with phase correction.
- Fast FET soft limiting driver protection.
- Triple fan cooling.
- 6 year warranty.
- Only available as part of an ATC active loudspeaker system.
Specification
- Output Power: HF 100W into 6Ω, Mid 200W into 16Ω, LF 275W x 2 into 8Ω
- Input Sensitivity: 2V
- Input Impedance: 10kΩ
- Frequency Response: 5Hz – 20 kHz ±0.1dB
- Signal to Noise Ratio: Better than 105dB
- Crosstalk: Better than 90dB
- Power Requirements: 100, 115, 230 Volts (region dependant 50/60Hz factory set)
- Dimensions: 19˝ Rack Mounting 5U high (222mm / 8.7˝), Overall Depth 538mm (21.2″), Front Panel and Handles 71mm (2.8˝), Rear Handles 40mm (1.6˝),
- Amplifier Body 427mm (16.8˝ )
- Weight: 35.8kg / 78.8lbs
