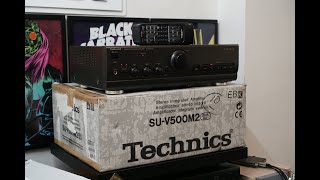

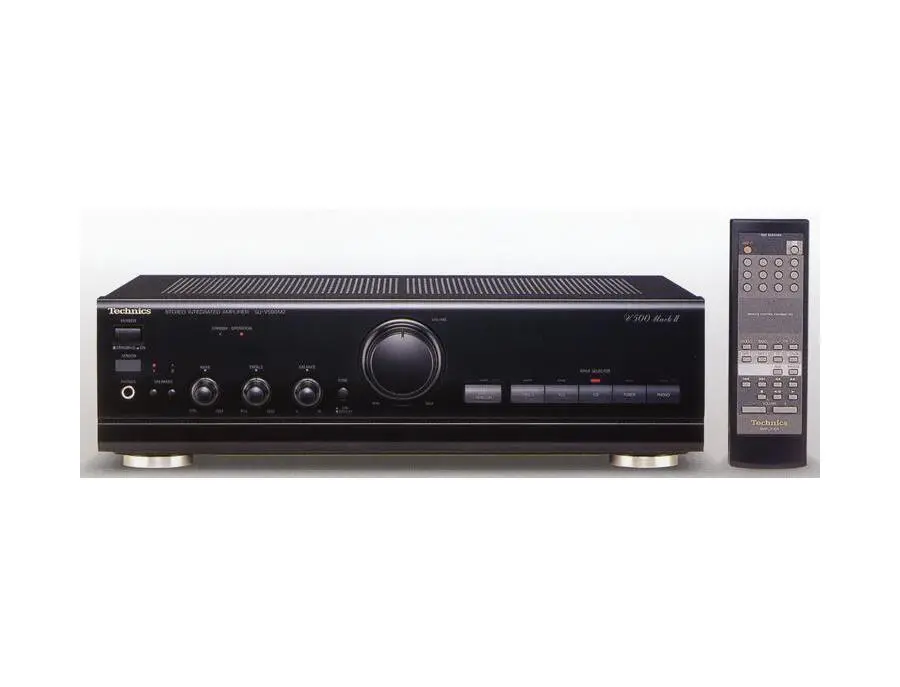

The SU-V500M2 Amplifier by Technics is a Bamboo mixing Integrated amplifier using electrolytic capacitor.

Equipped with a new class A circuit to suppress switching distortion and crossover distortion.

Equipped with two series A and B speaker terminals that can be driven simultaneously.

Equipped with phono inputs connected to an analog player and two tape inputs / outputs.

Specs:

Type Integrated amplifier

Rated output 30W + 30W (40 Hz to 20 kHz, 0.1%, 8 Ω)

Maximum practical power 45W + 45W (8 ohm, JEITA)

50W + 50W (6 ohm, JEITA)

55W + 55W (4 ohm, JEITA)

Rated distortion factor 0.2% (20 Hz to 20 kHz, Rated Output, 8 Ω)

Total harmonic distortion factor 0.2% (20 Hz to 20 kHz, Rated Output, 3 dB, 8 Ω)

Damping factor 60 (8 Ω)

Load impedance 4 Ω ~ 16 Ω (A or B), 8 Ω ~ 16 Ω (A + B)

Frequency characteristic Tuner, CD, aux, tape1, tape2 : 3 Hz to 60 kHz (+ 0 dB, -0.3 dB)

Equalizer deviation 30 Hz to 15 kHz (+ 1 dB, -1dB)

Input Sensitivity / Impedance Tuner, CD, aux, tape1, tape2 : 150mV/22k Ω

Phono MM : 2.5mV/47k Ω

Tone control characteristics ± 10 dB (50 Hz), ± 10 dB (20 kHz)

Signal-to-noise ratio Tuner, CDs, aux, tape1, tape2 : 82 dB (JEITA)

phono MM:80dB(JEITA)

Power consumption 95W

Pwer 100 VAC, 50/60Hz

External dimensions Width 430x Height 125x Depth 310 mm

Weight 6.0kg

Owner's manual
