Description

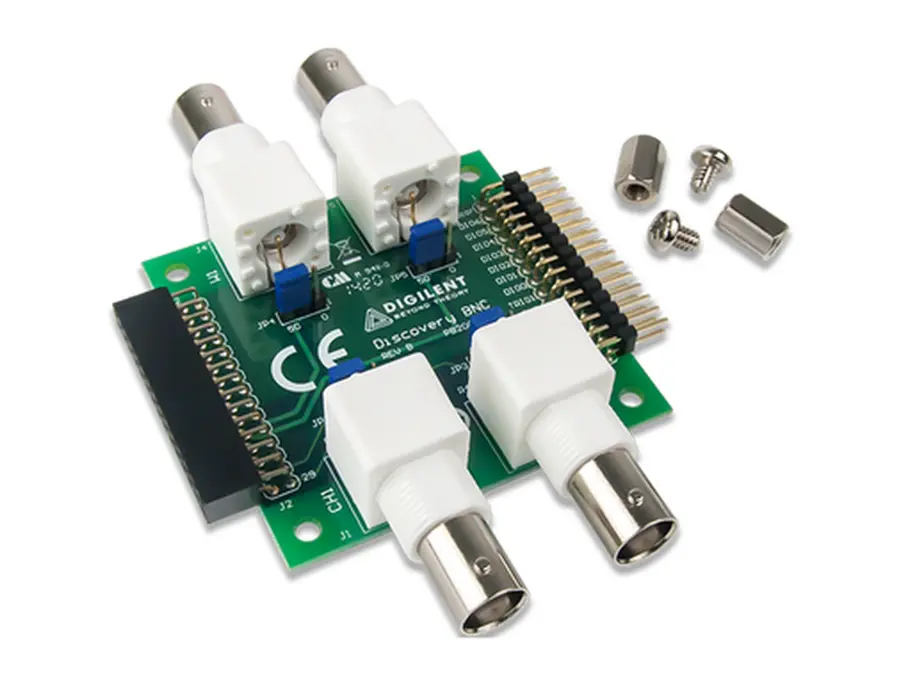

BNC probes offer the best signal integrity and highest available bandwidth for connecting an oscilloscope or waveform generator to a circuit under test, and are the standard in the industry. The BNC Adapter for Analog Discovery 2 provides this connection method to both the waveform generator and oscilloscope instruments, while keeping the option and convenience of the standard MTE cables for the other 10 instruments on the Analog Discovery 2. The BNC Adapter also adds the ability to AC or DC couple the oscilloscope and the option for either 0 or 50-ohm termination on the waveform generator, combining the portability and flexibility of the Analog Discovery 2 with industry standard features.
For a tutorial, Reference manual and other documentation, view the Support Materials tab.
Note: The BNC Adapter Board for the Analog Discovery does not have differential analog (scope) inputs
Videos
Peter Mathys
Analog Discovery 2: Flywire Assembly vs BNC Adapter
Analog Discovery 2: Flywire Assembly vs BNC Adapter
Peter Mathys
Reviews
Owner Insights
We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Digilent BNC Adapter for Analog Discovery.
Features and functionality
-
The Digilent BNC adapter is crucial for the Analog Discovery 2, as without it, the device cannot function effectively as an oscilloscope.
Source -
The Rigol 1054Z can be upgraded via firmware to unlock additional bandwidth and memory, providing enhanced performance for a budget-friendly scope.
Source -
The Digilent Analog Discovery 2 includes multiple tools like a logic analyzer, spectrum analyzer, and power supply, making it a versatile "Swiss army knife" for electronics enthusiasts.
Source
Comparisons
-
The Rigol 1054Z offers more bandwidth, better sample rate, and advanced trigger modes compared to the Digilent, making it a stronger choice for traditional oscilloscope needs.
Source
Use cases and applications
-
The Digilent is ideal for students or individuals needing portable lab equipment, combining multiple tools like a logic analyzer and function generator in one compact device.
Source -
It's particularly designed for educational settings, such as undergraduate EE labs, providing a comprehensive set of functions for students.
Source
Software and compatibility
-
The Digilent requires a laptop and specific software, which can be a disadvantage compared to stand-alone scopes like the Rigol, which do not rely on external devices.
Source -
Digilent provides a free "Real Analog" course material, which can enhance the learning experience for new users of the Analog Discovery 2.
Source
User experience
Value and pricing
-
The Rigol 1054Z, found locally for 326 EUR, is considered an excellent value for a first oscilloscope, especially with potential firmware upgrades to unlock full capabilities.
Source -
The Analog Discovery 2 Pro Bundle often includes a BNC adapter and probes, offering a complete starter kit with occasional discounts.
Source
