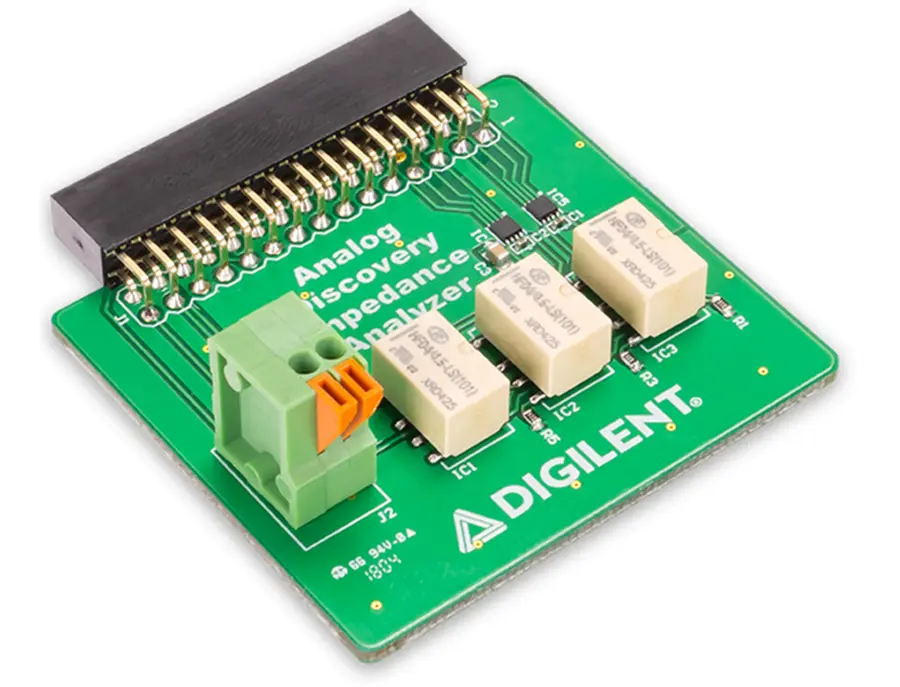

Unleash the full potential of your Analog Discovery with the Digilent Impedance Analyzer, an innovative tool designed to streamline your circuit analysis experience. This dynamic accessory transforms your Analog Discovery into a versatile Impedance Analyzer, empowering musicians and engineers alike to delve into the realms of inductive and capacitive elements with ease.

Thanks to its automatically adjusting reference resistors and relays, this analyzer eliminates the hassle of manually building reference circuits for each test. Simply plug it into your Analog Discovery, and it seamlessly integrates with WaveForms software, selecting the most appropriate configuration for the attached unknown impedance. The spring terminal block allows for easy attachment of components or leads, making it a user-friendly companion for both novice and experienced users.

Whether you're crafting intricate soundscapes or fine-tuning your gear, the Digilent Impedance Analyzer offers precise control over a wide range of parameters. With a capacitance measurement range from 50pF to 500µF and an inductance range from 10µH to 1000mH, this tool is your gateway to mastering the subtleties of impedance. It's not just an accessory; it's a pivotal part of your creative toolkit.

Key Features:

• Compatible with Analog Discovery 2 and Analog Discovery Legacy
• Automatically adjusts reference resistors and relays
• 2x15 female connector for direct integration
• 2-wire impedance analysis with WaveForms
• Capacitance measurement range: 50pF to 500µF
• Inductance measurement range: 10µH to 1000mH
• Excitation frequency range: 1Hz to 15MHz
• Requires WaveForms version 3.8.2 or later
