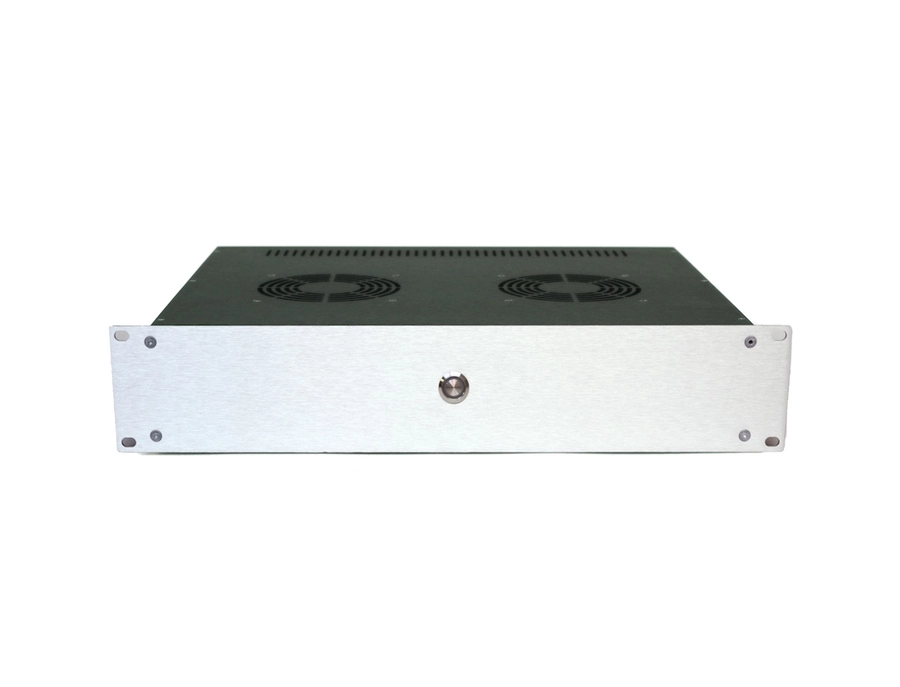

Our fully configurable multi-channel Ncore MA-01 amplifiers are built around your choice of Hypex NC***MP modules offering 4 different power outputs across 7 different modules. You can use the configurator to configure your Hypex N-core amplifier for your needs. ​This can be a stereo or mono amp as well as a peerless multi channel AV power amplifier. They also make an ideal base for active speakers like Linkwitz 521‘s or any of your DIY active speaker projects.

• up to 8 channel – choose from NC122MP, NC250MP, NC252MP, NC500MP, NC502MP and NC100HF Hypex Ncore modules
• Fully balanced and single ended operation
• No switches in the signal path
• AES-48 compliant
• 12V trigger
• 47K Ohms Input Impedance, low output impedance
• S/N Ratio 118dB – this is based on measurement of individual modules
• THD 0.0015
• 26dB Voltage Gain (except the NC100HF module which is 20dB
• Overall case size – Width 450 mm, Height 90 mm, Depth 350 mm
• Single button interface function control and warning
• Microprocessor controlled
• Muted start-up process
• DC detection and protection from DC produced during catastrophic amp failure
• DC connected inputs (make sure you have no DC on the inputs)
• Clip indication
• Active temperature control and indication
• Industry standard Multi function Neutrik connectors which can take and XLR or 1/4 Jack connector for balanced or single ended connection
• Custom made Audiophile quality CMC speaker connectors or Neutrik speakon connectors
• Gold PCB traces
• Gold plated internal connectors
• No silly marketing foo to confuse you
• 230V and 110V operation via the IEC connector as standard
