What is the operating range of the Audio-Technica ATW-701 Wireless BodyPack Guitar System?

The operating range of the Audio-Technica ATW-701 is typically 200 feet, providing ample mobility for performers on stage.

Does the Audio-Technica ATW-701 Wireless BodyPack Guitar System work with both electric guitars and microphones?

Yes, the UniPak transmitter included with the system features separate guitar and microphone trim controls, making it compatible with both electric guitars and microphones.

What type of power supply does the Audio-Technica ATW-701 require?

The system requires a 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode external power supply, which is included with the system.

How long does the battery last in the Audio-Technica ATW-701 Wireless BodyPack Guitar System?

The UniPak transmitter operates for approximately 8 hours on high power and 10 hours on low power, depending on the battery type and usage pattern.

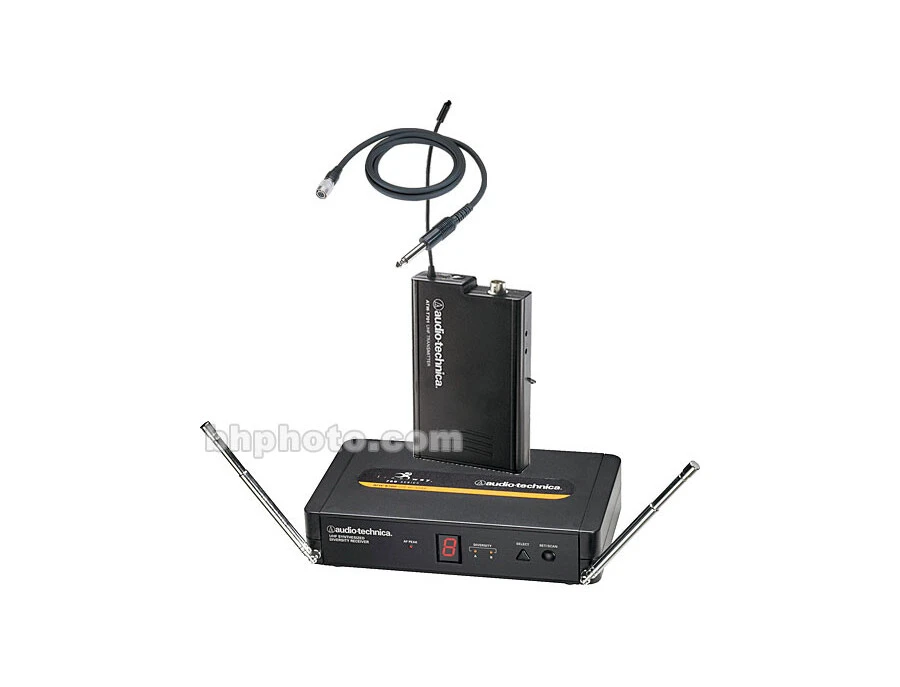

Audio-Technica ATW-701 Wireless BodyPack Guitar System

0 wishlisted

2 saved

Page last updated Aug 11, 2025

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

Elevate your stage presence and unleash your musical creativity with the Audio-Technica ATW-701 Wireless BodyPack Guitar System. Designed for the discerning musician who values both freedom and sound fidelity, this system delivers professional-grade wireless performance without breaking the bank. Whether you're performing in a cozy club or on a grand stage, the ATW-701 provides the reliability you need to focus on what really matters: your music.

At the heart of this system lies the ATW-R700 receiver and the ATW-T710 bodypack transmitter, paired seamlessly with a specially designed guitar cable. Experience crystal-clear sound with its 8 selectable frequency-coordinated UHF channels, ensuring you have the flexibility to adapt to any performance environment. The diversity operation enhances range and reliability, while the automatic frequency scanning simplifies setup, reducing potential interference.

For bands looking to go wireless together, the ATW-701 allows up to eight systems to be used simultaneously, ensuring that every member can enjoy the benefits of cable-free performance. With features like the Tone Lock squelch system, which eliminates interference when the transmitter is off, and an intuitive LED channel display, this system is both user-friendly and robust.

Whether you're a seasoned pro or an aspiring musician, the Audio-Technica ATW-701 is your ticket to a world of stage-wide freedom and superior sound quality.

Key Features:

ATW-R700 receiver and ATW-T710 bodypack transmitter included
Special guitar cable for easy instrument connectivity
8 selectable UHF channels (542.125MHz-561.250MHz)
Use up to 8 systems simultaneously with compatible channels
Automatic frequency scanning for easy setup
Diversity operation for enhanced range and reliability
LED channel display with antenna and AF peak indicators
Balanced XLR and unbalanced 1/4" output connectors
Tone Lock squelch system eliminates interference when the transmitter is off

Product specs

Operating frequencies	UHF band 542.125 MHz to 561.250 Mhz
Number of channels	8
Frequency stability	±0.005%, Phase Lock Loop frequency control
Modulation mode	FM
Normal deviation	±25 kHz
Operating range	200' typical
Operating temperature range	40 F to 110 F, (4 C to 40 C)
Frequency response	100 Hz to 12 kHz
Receiving System	Antenna-switching diversity
Image Rejection	55 dB minimum
Signal-to-noise Ratio	80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
Total Harmonic Distortion	<=1% (10 kHz deviation at 1 kHz) Sensitivity: 25 dBV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
Audio Output	Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation); Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
Output Connectors	Unbalanced 1/4" TS ("mono") phone jack; Balanced: XLRM-type
Power Supply	100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply
Dimensions (W x H x D)	2.56" x 4.13" x 0.73", (65.0 x 105.0 x 18.5 mm)
Weight	12.9 oz. (365 g)
Accessories Included	Power supply
RF Power Output	High: 10 mW; Low: 5 mW, nominal
Spurious Emissions	Under federal regulations
Dynamic Range	>100 dB, A-weighted
Input Connections	High impedance, low impedance, bias
Batteries (not included)	Two 1.5V AA alkaline
Current Consumption	High: 140 mA; Low: 130 mA, typical
Battery Life	Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
Net Weight (without batteries)	2.8 oz (80 grams)

FAQs

How many channels can the Audio-Technica ATW-701 Wireless BodyPack Guitar System use simultaneously?: The Audio-Technica ATW-701 can use up to 8 simultaneous systems, with all channels being compatible, allowing for flexible and interference-free performance.
What is the operating range of the Audio-Technica ATW-701 Wireless BodyPack Guitar System?: The operating range of the Audio-Technica ATW-701 is typically 200 feet, providing ample mobility for performers on stage.
Does the Audio-Technica ATW-701 Wireless BodyPack Guitar System work with both electric guitars and microphones?: Yes, the UniPak transmitter included with the system features separate guitar and microphone trim controls, making it compatible with both electric guitars and microphones.
What type of power supply does the Audio-Technica ATW-701 require?: The system requires a 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode external power supply, which is included with the system.
How long does the battery last in the Audio-Technica ATW-701 Wireless BodyPack Guitar System?: The UniPak transmitter operates for approximately 8 hours on high power and 10 hours on low power, depending on the battery type and usage pattern.
