Description

Edit description

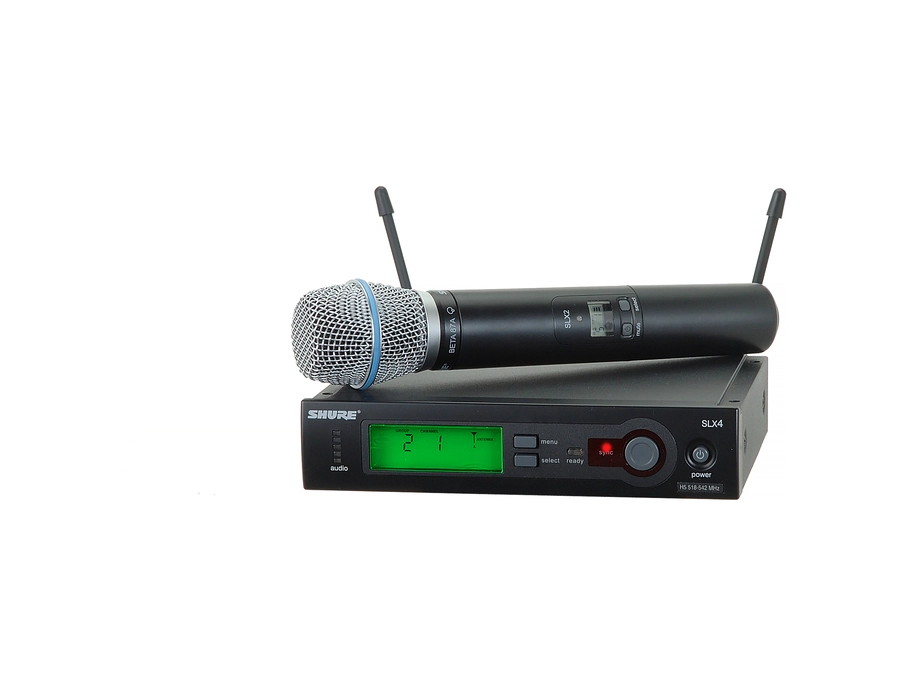

Elevate your live performances with the Shure SLX24/Beta87A, a wireless microphone system that combines studio-quality sound with robust wireless technology. Perfect for sound installations and working bands, this system is designed for quick setup and reliable use on stage. The SLX24/Beta87A features the renowned Beta87A capsule, known for its warm, accurate sound capture, making it ideal for vocalists who demand clarity and precision.

The SLX2 handheld microphone transmitter, equipped with the Beta87A condenser element, offers a supercardioid pattern to ensure maximum isolation from nearby instruments and vocalists, minimizing unwanted noise. The SLX4 diversity receiver complements the system with automatic frequency scanning and transmitter setup, ensuring seamless connectivity and exceptional wireless clarity. Both components are built with Shure's legendary durability, ensuring they withstand the rigors of stage performances night after night.

Whether you're performing in a small venue or a large concert hall, the SLX24/Beta87A's innovative features, including a backlit LC display and power lockout, ensure you maintain control over your performance. Experience the freedom of wireless with the reliability that only Shure can provide.

Key Features:

SLX2 Handheld Microphone Transmitter with Beta87A Capsule
SLX4 Diversity Receiver with automatic frequency scanning
Supercardioid polar pattern for maximum isolation
Timed backlit LC display for easy monitoring
Frequency and power lockout features
Mute functionality for complete control
Includes PS20 (120V AC) Power Supply and 1/4 Wave Antennas
Rack mounting hardware included for versatile setup options

Product specs

H5	518”542 Mhz, 30 mW
J3	572”596 Mhz, 30 mW
L4	638”662 Mhz, 30 mW
P4	702”726 Mhz, 30 mW
R13	794-806 Mhz, 20 mW
R5	800”820 MHz 20, mW
S6	838”865 MHz 10, mW
JB	806”810 MHz 10, mW
Q4	740”752 MHz 10, mW
User guideNOTE	This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies for wireless microphone products in your region.
Operating Range Under Typical Conditions	100m (300 ft.) Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/” 2dB)	Minimum 45 Hz, Maximum 15 kHz
Total Harmonic Distortion (ref. +/” 38kHz deviation, 1kHz tone)	0.5%, typical
Dynamic Range	>100dB A-weighted
Operating Temperature Range	”18C (0F) to +57C (+135F) note: battery characteristics may limit this range
Transmitter Audio Polarity	Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
Audio Input Level	+2 dBV maximum at -10dB position , -8 dBV maximum at 0dB position
Gain Adjustment Range	10dB
RF Transmitter Output	30 mW maximum (dependent on applicable country
Weight	816g (1lb. 13oz.)
Housing	Galvanized steel
Power Requirements	12”18Vdc at 150mA, supplied by external power
Battery Life	>8hours (alkaline)
Audio Output Level (ref. +/” 38kHz deviation with 1 kHz tone)	XLR connector (into 600 Ohms load): ”13dBV, 1/4inch connector (into 3000 Ohms load): ”2dBV
Output Impedance	XLR connector: 200 Ohms, 1/4inch connector: 1k Ohms
XLR output	impedance balanced pin 1: ground (cable shield), pin 2: audio, pin 3: no audio
Sensitivity	”105dBm for 12dBSINAD, typical
Image Rejection	>70dB, typical
Dimensions	42mmH x 197mmW x 134mmD (1.65 x 7.76 x

FAQs

What is the primary application of the Shure SLX24/Beta87A wireless microphone system?: The Shure SLX24/Beta87A is designed for professional sound reinforcement, broadcasting, and studio recording, offering reliable performance and durability for live and studio environments.
How does the Shure SLX24/Beta87A handle frequency selection?: The system features automatic frequency selection with 960 selectable frequencies across a 24MHz bandwidth, ensuring minimal interference and optimal signal clarity.
What is the operating range of the Shure SLX24/Beta87A?: Under typical conditions, the Shure SLX24/Beta87A has an operating range of up to 100 meters (300 feet), depending on RF signal absorption, reflection, and interference.
How long does the battery last on the Shure SLX24/Beta87A transmitter?: The transmitter offers a battery life of over 8 hours when using alkaline batteries, providing extended performance time for live events or recording sessions.
What are the connectivity options for the Shure SLX24/Beta87A receiver?: The receiver includes both XLR and 1/4-inch outputs, offering versatile connectivity for different audio setups and equipment configurations.

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Shure SLX24/Beta87A.

Features and functionality

0 0

The Shure SLX24/Beta87A can be purchased as a handheld wireless transmitter with an integrated Beta87A head, offering a streamlined setup for singers.
Source
0 0

Shure's SLXD series includes an automatic scan feature to find open channels, which is especially useful in urban areas with potential interference.
Source

Software and compatibility

0 0

Shure provides a Frequency Finder tool on their website to determine the best frequency range for your location, essential for avoiding interference in different regions.
Source

Use cases and applications

0 0

The Beta87A, with its supercardioid pattern, is designed primarily for sound reinforcement to minimize feedback, ideal for live performance settings with monitors.
Source

Setup and maintenance

0 0

Applying electrical or gaff tape to the capsule and grill can provide extra grip when attempting to remove a stuck capsule.
Source
0 0

Using a strap wrench or pipe grips with a fabric layer can help remove tightly affixed microphone heads without damaging the finish.
Source
0 0

Heating the metal head gently by leaving it in the sun may aid in loosening the threads for easier capsule removal.
Source
0 0

A piece of cloth with sunflower oil left overnight around the capsule seam can help loosen stuck components.
Source
0 0

Oscillating between tightening and loosening the capsule can eventually break it free, especially when combined with a small amount of WD-40.
Source
0 0

Tapping the connection point lightly with a rubber mallet can help release dirt and debris, potentially easing capsule removal.
Source
