ACX Audio XP 2040 main image

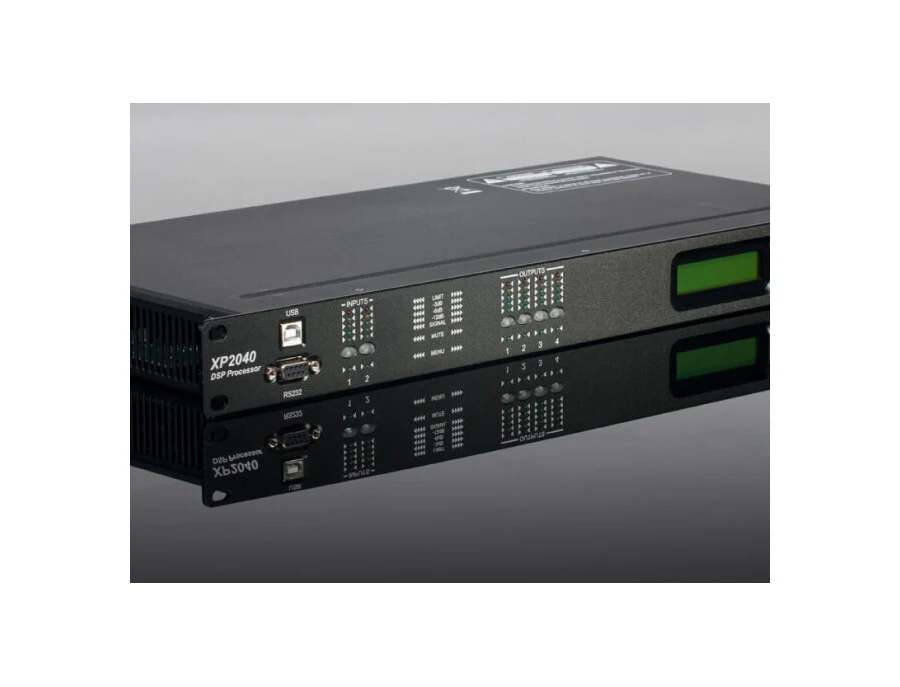

ACX Audio XP 2040

ACX Audio XP 2040

See more

0 wishlisted

0 saved

Page last updated Feb 25, 2026

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

Description

The XP series provides an outstanding value-to-performance ratio, as the only DSPs that sample 96kHz while being a 40-bit floating point DSP, and feature 24-bit converters within its price category

XP-M suffix versions offer additional capabilities through switchable premium-grade Mic/Line inputs, with individual 48V phantom power.

Three of the I/O model sizes keep stocking and deploying simple for rental, MI and live sound providers, while optimally providing cost-saving by minimising unneeded channel counts, making it an ideal solution for simpler sound setups that just want to get a specific job done, and fast.

The series is also controllable through a wide range of options allow for the ultimate in user flexibility. Currently controllable with Windows via ACX Console, Android via ACX Touch and the low-cost, wall-mounted XWP and Mini series. Support for iOS devices coming soon.

Specification

Input impedance: >10kΩ
Output impedance: 50Ω
Maximum level: +20dBu
Mic/Line: Mic(+40dB Fixed gain)/Line (0dB)
Type: Electronically balanced
Frequency response: +/-0.1dB (20 to 30kHz)
Dynamic range: 115dB typ (unweighted)
CMRR: >60dB @ 1kHz
Crosstalk: <-80dB @ 1kHz
Distortion: 0.002% (1kHz @ +4dBu)
Processor: 40-bit Floating point
Sampling rate: 96kHz
Analog converters: High-performance 24-bit
Propagation delay: 1.5ms
Connectors (XP 2040, 4080): XLR, USB, RS232, RJ45 Ethernet, lEC power socket
Connectors (XP 8080): Phoenix connector (included), USB, RS232, RJ45 Ethernet, lEC power socket
Power: 90-240 VAC(50-60Hz)
Dimensions: 19“x1.75"x9” (483x44x229mm)
Rack mount: 1RU, with vent between units
Weight: 11lbs/ 5kg
Warranty: 2 years parts and labor
