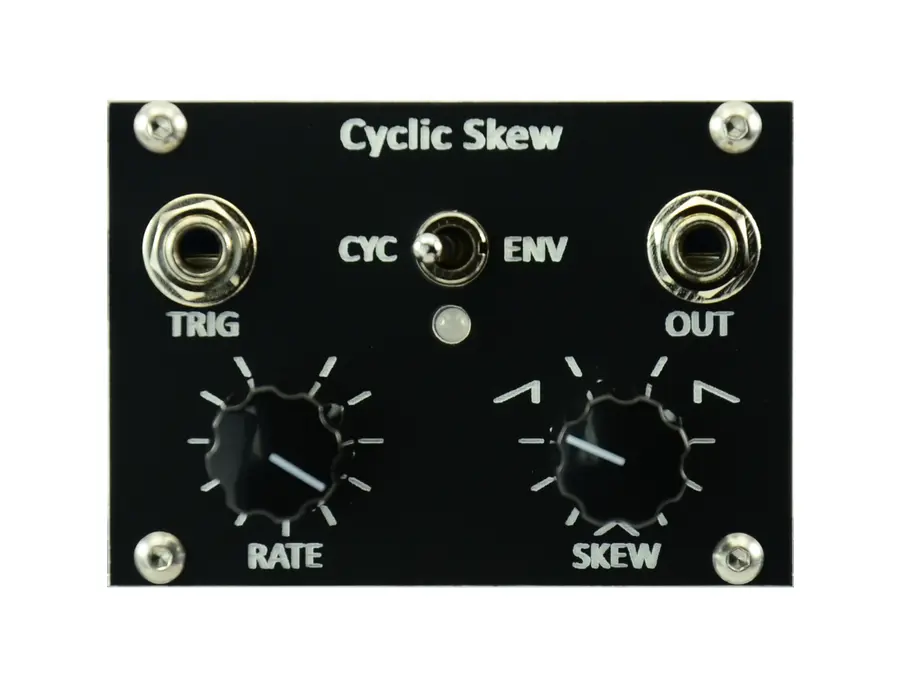

Step into the world of modular synthesis with the Pulp Logic Cyclic Skew, your new gateway to versatile modulation. This compact 1U Tile format module is engineered for sonic adventurers seeking dynamic control over their soundscapes. With its three distinct modes of operation—Cycle, Attack Release (AR), and Attack Sustain Release (ASR)—the Cyclic Skew offers a rich palette of modulation possibilities.

In Cycle mode, transform the module into a variable shape LFO, where you can adjust both the speed (from 0.1Hz to 20Hz) and the waveform shape using the "SKEW" control. Choose between a Sawtooth waveform and a Ramp waveform to tailor your sound precisely. The "TRIG" input acts as a reset, restarting the LFO cycle, while the "EOR" (End of Rise) output delivers a 10mS trigger each time the peak output voltage is reached.

Switch to AR or ASR modes and harness the power of one-shot envelope creation. In AR mode, each trigger input initiates a fresh envelope from its cycle's start. ASR mode takes it a step further by sustaining the envelope peak as long as the gate is high. The "EOR" output serves multiple utility functions, including trigger delay and gate-to-trigger conversion.

Fine-tune your modulation with the ability to select between Uni-polar and Bi-polar output via a PCB dip switch, enabling a more personalized synthesis experience. Whether you're crafting rhythmic patterns or ambient textures, the Cyclic Skew is a modular powerhouse ready to elevate your performance.

Key Features:

• Three modes: Cycle, Attack Release (AR), and Attack Sustain Release (ASR)
• Variable shape LFO with adjustable speed (0.1Hz to 20Hz) and waveform shape
• "TRIG" input for LFO reset and envelope initiation
• "EOR" output for utility functions like trigger delay
• Uni-polar and Bi-polar output selection via PCB dip switch
