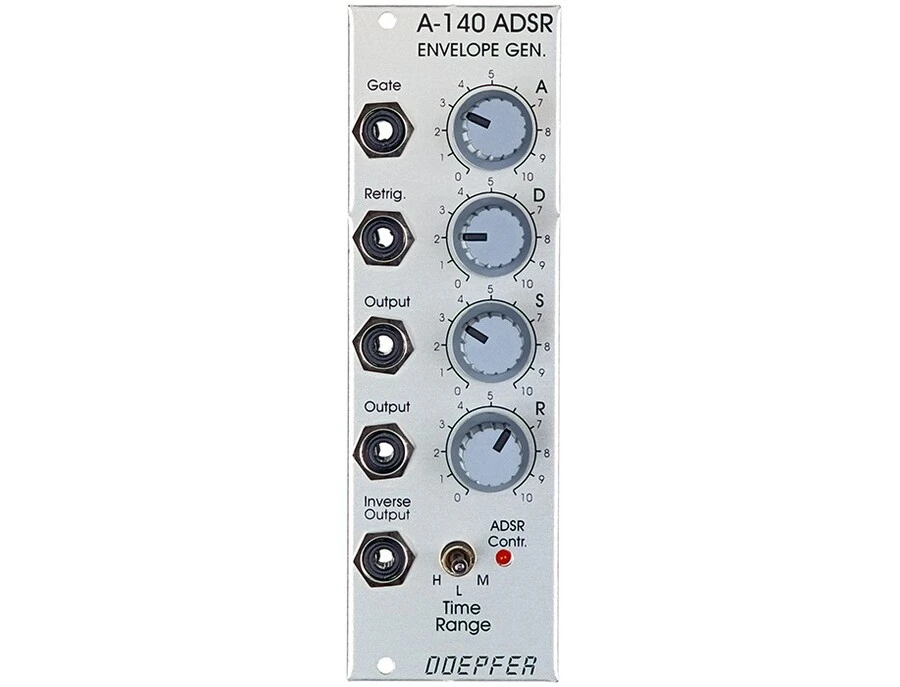

Dive into the heart of modular synthesis with the Doepfer A-140 ADSR Envelope Generator, a cornerstone for those looking to shape their sound with precision and versatility. Whether you're crafting quick, sharp attacks or dreaming up expansive, atmospheric releases, the A-140 stands as your reliable architect for envelope shaping. Its ability to produce both normal and inverted envelope outputs, coupled with a trio of time range modes, makes it a dynamic tool for modulating filters, oscillators, and beyond. From the rapid-fire pulses to the slow, unfolding evolutions, the A-140 bends to your musical will, offering an expansive palette for your creative expressions.

At its core, the Doepfer A-140 is not just an envelope generator; it's a gateway to exploring the depths of your sound. Its straightforward interface, combined with the capacity for intricate modulation, renders it an essential module in the Eurorack landscape. Its compatibility with a broad range of modules means it can either take center stage or support from the wings, depending on your setup. Whether you're a seasoned modular enthusiast or just beginning to explore the world of synthesis, the A-140 offers both simplicity and depth, making it a versatile addition to your sonic toolkit.

Key Features:

• ADSR (Attack, Decay, Sustain, Release) envelope generation with dual outputs for normal and inverted signal paths
• Selectable time ranges, offering flexibility from 50 microseconds to several minutes for precise control over envelope shaping
• Retriggerable via Retrig input, allowing for complex, evolving soundscapes
• Ideal for modulation of VCOs, VCFs, VCAs, and more, enhancing the dynamism and expressiveness of your modular rig
• Eurorack format, fitting seamlessly into your existing setup with an 8hp width

FAQs:

What is the Doepfer A-140 ADSR Envelope Generator?

The A-140 is an analog ADSR (Attack, Decay, Sustain, Release) envelope generator module for Eurorack systems. It produces control voltage shapes that modulate other modules like VCAs, VCFs, or VCOs, shaping dynamics, timbre, or pitch over time.

What does ADSR mean?

• Attack: Time to rise from 0 to max after gate input

• Decay: Time to fall from max to sustain level

• Sustain: Held voltage level while gate is high

• Release: Time to fall from sustain to 0 after gate ends

These parameters define the contour of a modulation signal.

What inputs and outputs does the A-140 have?

• Gate In: Triggers the envelope

• ADSR Out: Main output for the standard envelope

• Inverted Out: Sends an inverted envelope shape for counter-modulation

How do I use it to control amplitude via a VCA?

1. Send a gate signal to Gate In

2. Set A, D, S, R to shape your envelope

3. Patch ADSR Out to your VCA’s CV input

4. Send your VCO audio into the VCA

5. Output the VCA to your mixer

This creates dynamic volume shaping with each gate.

Can I modulate things other than volume?

Yes. Patch the envelope to any CV input on compatible modules, such as:

• Filter cutoff (VCF)

• Oscillator pitch (VCO)

• Effect parameters (reverb, delay, etc.)

• LFO rate or depth

Use the inverted output for mirrored modulation effects.

What’s the range of envelope times?

Exact ranges vary by revision, but generally:

• Attack, Decay, Release: From a few milliseconds up to several seconds
  This allows everything from snappy percussive hits to slow evolving swells.

Does it loop or retrigger itself?

No. The A-140 is not a looping envelope. It runs once per gate. To simulate looping, use external modules to re-trigger it at regular intervals, or look at loopable envelope or LFO modules.

What’s the difference between gate and trigger signals here?

• Gate: A sustained signal. Triggers full ADSR cycle including sustain.

• Trigger: A short pulse. Skips sustain, causing a fast A-D-R envelope.

For full ADSR behavior, use a gate input.

Is it a linear or exponential envelope?

The A-140 has an exponential-like curve for A, D, and R stages. This gives a more musical, natural feel than linear slopes.

Product specs

FAQs

What does the Doepfer A-140 ADSR Envelope Generator do in a modular synthesizer setup?

The Doepfer A-140 ADSR Envelope Generator shapes the amplitude of a sound over time, controlling the attack, decay, sustain, and release phases to create dynamic and expressive sounds.

Is the Doepfer A-140 suitable for both audio and CV modulation?

Yes, the Doepfer A-140 can be used for both audio and control voltage (CV) modulation, making it versatile for shaping audio signals or influencing other modules in a modular setup.

How does the Doepfer A-140 compare to other envelope generators in terms of features?

The Doepfer A-140 offers standard ADSR controls with additional retrigger and gate inputs, providing flexibility for complex modulation tasks in comparison to simpler envelope generators.

What is the width of the Doepfer A-140 ADSR Envelope Generator in a Eurorack system?

The Doepfer A-140 has a width of 8 TE / HP, which is a compact size suitable for most Eurorack modular synthesizer systems.

Can the Doepfer A-140 be used to modulate filter cutoff frequency?

Yes, the Doepfer A-140 can modulate filter cutoff frequency by connecting its output to a filter module's CV input, allowing dynamic filter sweeps and shaping.
