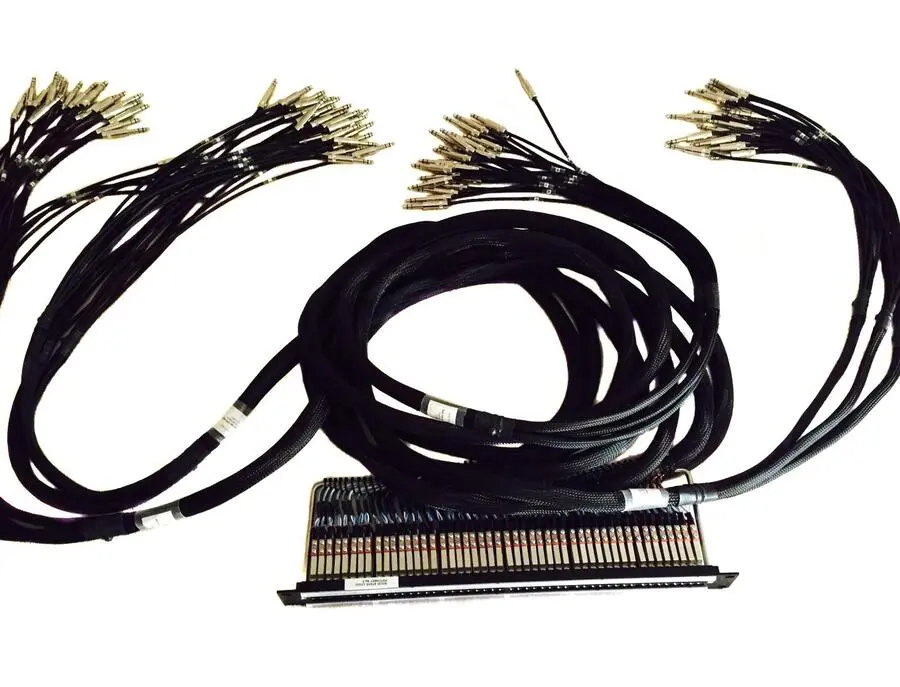

Discover a seamless integration for your studio with the Solid State Logic AWS 924 Patchbay. Designed to complement the AWS 924 console, this patchbay is an intricate blend of precision and functionality, providing a robust solution to organize your audio connections. The system comprises five meticulously handwired patchbays, demonstrating SSL's commitment to maintaining superior signal integrity and reliability.

With two dedicated tie line bays, connecting remote live rooms or accessing the console’s 24 SuperAnalogue mic preamps is straightforward and efficient. The control room is equipped with an additional mic panel, making it effortless to patch in instruments or microphones, ensuring your creative flow remains uninterrupted. The patchbay system is adaptable, accommodating additional tie lines to your control room's outboard gear, while DB-25 connectors offer easy integration with your AD/DA converters.

Designed for versatility, the AWS 924 Patchbay can be loomed for either left or right orientation, ensuring a tidy and organized setup. Once installed, the cables fit neatly into the console’s rear cable channel, maintaining a clean and professional studio environment. Whether you're upgrading your current setup or fitting out a new studio, this patchbay offers a level of customization and efficiency that meets the demands of discerning audio professionals.

Key Features:

• 5 handwired patchbays for optimal reliability
• 1 x 2RU Mic Panel (Mic Lines 01-16) with 25' interface cable
• 1 x 2RU Mic Panel (Mic Lines 17-24) with 25' interface cable
• 1 x 2RU Tie Line Panel with 16 combo jacks, 15' interface cable
• 10' wiring looms between patchbay and console
• 15' wiring looms to external equipment (DAW/outboard gear)
• AudioAccessories patchbays, Neutrik connectors, Gepco wiring
• Custom configurations available
• Includes installation manual and one-year warranty

Product specs

FAQs

What is the primary function of the Solid State Logic AWS 924 Patchbay?

The Solid State Logic AWS 924 Patchbay is designed to streamline audio routing in studio environments, providing a centralized location to connect and manage multiple audio signals efficiently.

How does the SSL AWS 924 Patchbay integrate with studio equipment?

The SSL AWS 924 Patchbay offers a rackmount format, making it easy to incorporate into existing studio setups for seamless integration with other rack-mounted gear.

Is the SSL AWS 924 Patchbay suitable for analog audio setups?

Yes, the SSL AWS 924 Patchbay is an analog patchbay, ideal for managing connections in studios that utilize analog audio equipment.

What are the dimensions of the SSL AWS 924 Patchbay?

The SSL AWS 924 Patchbay has a height of 3.5 inches and a width of 19 inches, fitting standard rack unit dimensions for easy installation in studio racks.
