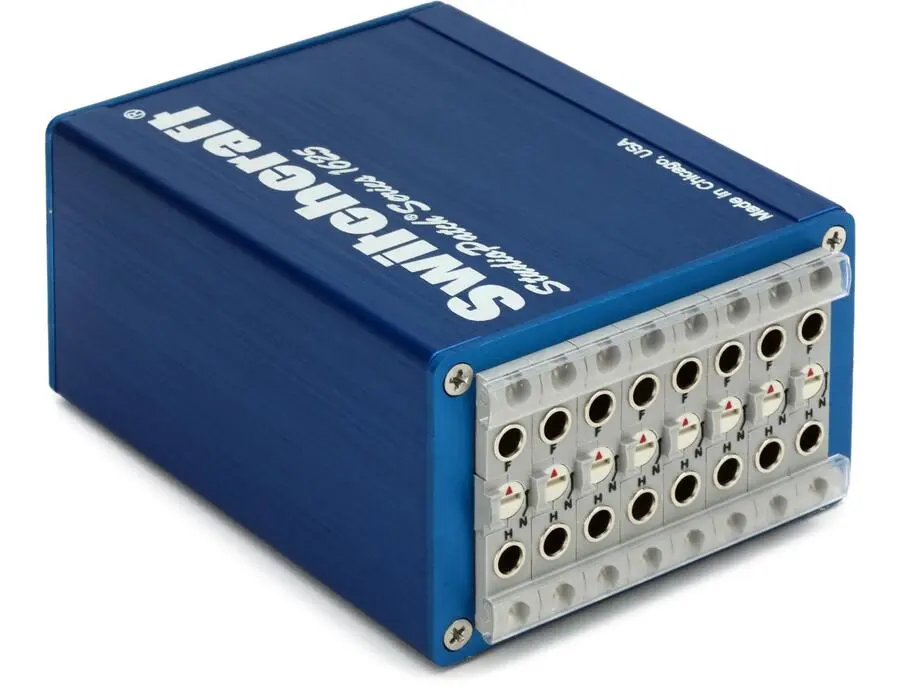

The Switchcraft Studio Patch 1625 16-point TT - DB25 Patchbay is your versatile companion in managing complex audio routing in both project studios and commercial facilities. As your audio needs grow, this modular patchbay is designed to keep pace without breaking a sweat. With 16 premium TT jacks, configured in 8 pairs, and rear-panel DB-25 connectors, you achieve seamless, solder-free installation that simplifies your setup process.

Thanks to the innovative EZ Norm technology, you can swiftly alter the normalling of each channel—full, half, or non-normalled—directly from the front panel using just a flat-head screwdriver. This flexibility ensures that you can tailor your patchbay to fit the unique requirements of your studio environment. Additionally, grounding switches provide the option to adjust each channel's sleeves between vertically strapped or isolated ground configurations, further enhancing the customizability of your setup.

The 1625's modular design allows up to five units to be mounted in a single 1.5U rack tray, optimizing both your channel count and rack space. Complementing its robust functionality, the patchbay offers changeable destination strips and a downloadable template for meticulous labeling and organization of your inputs and outputs. Whether you're connecting via DB25 to XLR or 1/4" TRS, the Studio Patch 1625 ensures your signal path remains clear and precise.

Key Features:

• 16 premium TT jacks in 8 pairs with DB-25 I/O
• EZ Norm technology for easy configuration changes
• Modular design for up to 5 units in a 1.5U rack tray
• Grounding switches for sleeve configuration adjustments
• Made in the USA with durable Bantam/TT jacks

Product specs

FAQs

What type of connections does the Switchcraft Studio Patch 1625 support?

The Switchcraft Studio Patch 1625 features TT connections on the front and DB-25 connections on the back, making it versatile for various studio setups.

How many patch points does the Switchcraft Studio Patch 1625 offer?

This patchbay provides 16 patch points, allowing for efficient routing of audio signals in a studio environment.

Is the Switchcraft Studio Patch 1625 suitable for analog or digital setups?

The Switchcraft Studio Patch 1625 is designed for analog setups, providing reliable connectivity for studio recording and mixing.

What functional modes are available on the Switchcraft Studio Patch 1625?

The patchbay offers Normal and Half Normal modes, enabling flexible signal routing options to suit different studio needs.

Can the Switchcraft Studio Patch 1625 be used in a desktop setup?

Yes, the Switchcraft Studio Patch 1625 is designed in a desktop format, making it easy to integrate into various studio configurations.
