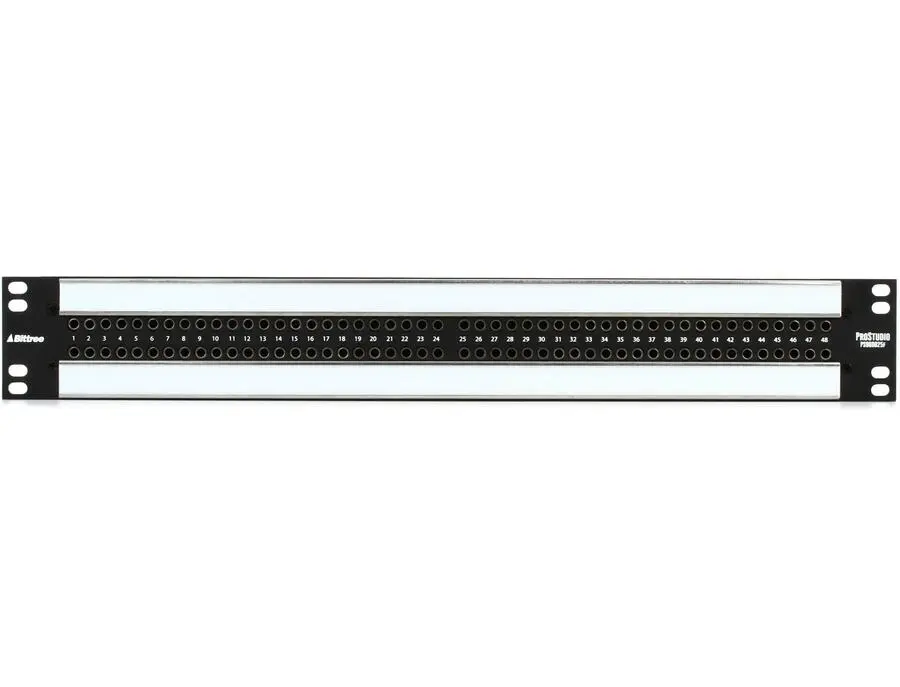

Introduce a touch of professional flair and operational efficiency to your home studio or commercial recording space with the Bittree ProStudio PS96DB25F 96-point TT - DB25 Patchbay. Elevating your setup from the amateur leagues, this patchbay is a testament to your commitment to quality and functionality. The Bittree ProStudio PS96DB25F merges the convenience of front-programmable configuration with the reliability of DB-25 rear connectors, all encased in a sleek 19" rackmount design. Whether you're rerouting signals on the fly or setting up a complex recording chain, this patchbay ensures that your studio remains organized, flexible, and ready to capture inspiration as it strikes.

Crafted for those who take their sound seriously, the Bittree ProStudio PS96DB25F facilitates effortless signal management without compromising on audio quality. Its high-density 2 x 48 jack configuration allows for extensive connectivity options, making it a versatile backbone for studios of any size. With its user-friendly interface and robust construction, this patchbay stands as an indispensable tool for achieving the polished sound that listeners and artists alike demand.

Key Features:

• Front-selectable TT (Bantam) audio patchbay for versatile patching solutions
• 19" rackmount 1.5RU design with a fully enclosed chassis for durability and ease of installation
• 2 x 48 jack configuration with even jack spacing, offering ample connectivity
• DB-25 rear connections (12 x 25-pin female DB-25 connectors) compatible with Protools and Tascam
• Selectable grounding and normalling options (ships full-normal with bused grounds) for customized signal routing
• Circuits can be easily changed via shunts under both designation strips, allowing for full-normal, half-normal, or non-normal configurations
• Grounding options include bused, isolated, or looped settings for optimal signal integrity
• Compatible with both analog and digital signals (110 ohm), ensuring broad application use
• Front-panel left-to-right numbering (1–48) for straightforward circuit identification
• Includes 2 x DS800-10 designation strips with over/under orientation for easy labeling and identification

Product specs

FAQs

What type of connections does the Bittree ProStudio PS96DB25F patchbay offer?

The Bittree ProStudio PS96DB25F features 96 points with 2 x 48 TT Bantam connectors on the front and 12 x DB-25 connectors on the back, compatible with ProTools/Tascam pinout.

Is the Bittree ProStudio PS96DB25F patchbay suitable for both analog and digital signals?

Yes, the Bittree ProStudio PS96DB25F is 110 ohm compatible, making it suitable for both analog and digital signals.

What are the configuration options for the Bittree ProStudio PS96DB25F patchbay?

The patchbay offers Full Normal, Half Normal, and Non-Normal function modes, allowing flexible routing and signal flow management.

How much rack space does the Bittree ProStudio PS96DB25F require?

The Bittree ProStudio PS96DB25F is a rackmount unit with a height of 2.6 inches, fitting into a standard 19-inch rack space.

What is the weight of the Bittree ProStudio PS96DB25F patchbay?

The Bittree ProStudio PS96DB25F patchbay weighs 5.1 lbs, making it relatively lightweight for easy installation in studio racks.
