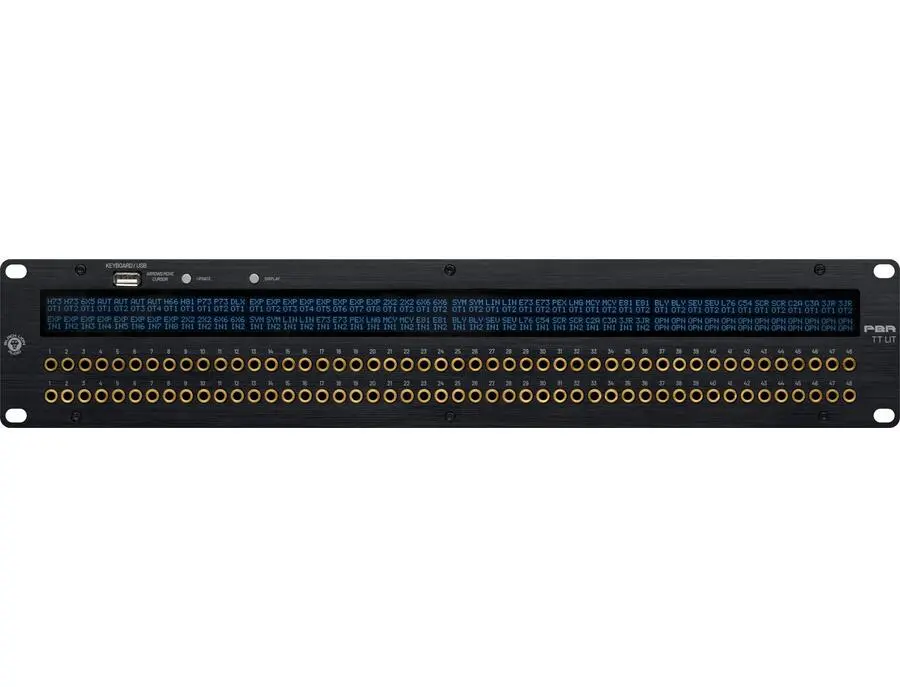

The Black Lion Audio PBR TT LIT 96-point Gold-plated TT/DB-25 Patchbay redefines studio connectivity with its seamless blend of audiophile-grade components and user-friendly design. Crafted to the high standards that Black Lion Audio is known for, this patchbay features 96 gold-plated TT connectors and 12 gold-plated DB-25 connectors, ensuring pristine signal transmission and exceptional durability in even the most demanding studio environments.

A standout feature of the PBR TT LIT is its 96 customizable LED displays, which allow you to clearly label each connection point without the hassle of traditional markers or tape. Personalize these displays easily by connecting a USB keyboard directly to the unit or utilizing the intuitive PatchCAD software, making it effortless to manage your complex setups. Flexibility is at the core of this patchbay's design, with switchable normalization modes—normal, non-normal, and half-normal—tailored to fit your studio's unique routing needs.

Constructed with a reinforced steel chassis and black-anodized aluminum faceplate, the PBR TT LIT offers both rugged durability and sophisticated aesthetics. Whether you're optimizing your workflow or elevating your studio's look, Black Lion Audio's patchbay is a reliable partner.

Key Features:

• 96 audiophile-grade, gold-plated TT connectors
• 12 gold-plated DB-25 connectors
• 96 customizable LED displays for clear labeling
• Supports up to 6 characters per channel
• Switchable modes: normal, non-normal, and half-normal
• Reinforced steel chassis with black-anodized aluminum faceplate
• Includes PatchCAD software for easy customization
• USB port for direct keyboard connection or USB drive use

Owner's manual

Product specs

FAQs

What are the main connectivity options for the Black Lion Audio PBR TT LIT Patchbay?

The Black Lion Audio PBR TT LIT Patchbay features 96 TT connectors on the front and 12 DB-25 connectors on the back, providing extensive connectivity for professional studio setups.

How does the LED display on the Black Lion Audio PBR TT LIT Patchbay enhance workflow?

The customizable LED display allows for user-defined channel labeling, making it easier to identify and manage connections, thereby streamlining studio workflow.

What makes the Black Lion Audio PBR TT LIT Patchbay suitable for professional studios?

With its 96-point gold-plated TT connectors and reinforced steel chassis, this patchbay ensures pristine signal quality and durability, ideal for demanding professional studio environments.

How can I customize the LED display on the Black Lion Audio PBR TT LIT Patchbay?

The PatchCAD software simplifies LED customization through a spreadsheet-style interface, allowing users to easily configure channel labels to suit their specific needs.

Does the Black Lion Audio PBR TT LIT Patchbay have any features to prevent noise interference?

Yes, the patchbay includes a grounding connection to eliminate noise from potential ground loops, ensuring clean audio signal transmission.
