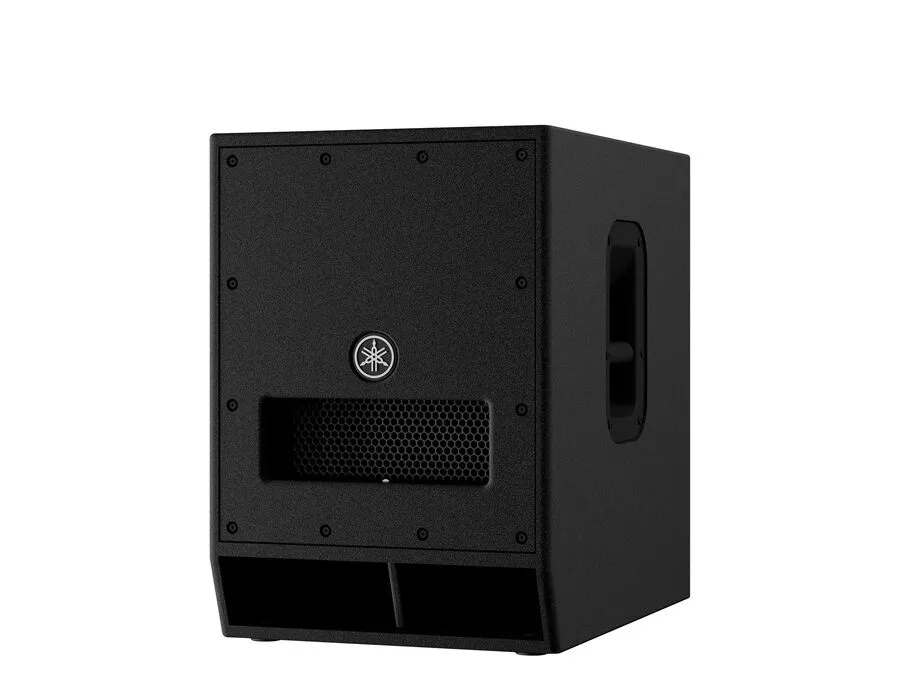

Elevate your stage presence with the Yamaha DXS12mkII, a powerhouse of deep, rich bass packed into a sleek and rugged design. This compact subwoofer is your ticket to delivering memorable performances, thanks to its advanced technology and robust construction. With a Class-D amplifier at its core, this unit doesn't just play your sounds; it breathes life into them, ensuring every beat is felt just as intensely as it's heard. Whether it's a cozy club or an intimate outdoor event, the DXS12mkII's exceptional clarity and dynamic bass response will make your music resonate with every listener.

Crafted for durability, the DXS12mkII boasts a LINE-X coated wooden enclosure, ensuring it stands up to the rigors of the road without compromising on aesthetics. Its cardioid mode setting is a game-changer for live setups, optimizing bass distribution to enthral your audience while keeping the stage sound clean and controlled. The seamless integration with Yamaha’s full-range speakers, courtesy of crossover switching, means you’re always at the top of your game, delivering perfectly balanced sound regardless of the venue.

Key Features:

• 800-watt continuous Class D amplification for powerful, efficient bass output
• 12" woofer with a 2.5" voice coil, achieving up to 134dB SPL for deep, impactful bass
• Frequency response from 42Hz to 150Hz, adjustable crossover points at 80, 100, and 120Hz
• Yamaha’s D-XSUB DSP processing enhances low-frequency extension and clarity
• Cardioid mode reduces onstage sound pressure while amplifying audience-directed bass
• Rugged, LINE-X coated wooden enclosure for durability and professional appearance
• Seamless compatibility with Yamaha’s full-range powered speakers through crossover switching
• Dual XLR inputs and parallel XLR outputs for easy integration and expansion

Owner's manual

Product specs

FAQs

What kind of power does the Yamaha DXS12mkII subwoofer have?

The Yamaha DXS12mkII features an 800W amplifier, delivering powerful and clear bass performance suitable for a variety of live sound applications.

What are the input and output options on the Yamaha DXS12mkII?

The Yamaha DXS12mkII offers 2 XLR inputs and 2 XLR outputs (thru/HPF), providing flexible connectivity for integrating with other audio equipment.

What is the frequency range of the Yamaha DXS12mkII subwoofer?

The Yamaha DXS12mkII subwoofer has a frequency range of 42Hz to 150Hz, allowing it to deliver deep bass frequencies essential for live performances.

How does the Yamaha DXS12mkII handle low frequencies?

The Yamaha DXS12mkII is designed with a selectable crossover frequency (80Hz, 100Hz, 120Hz) and a D-XSUB processing feature, enhancing low-frequency output for impactful bass.

What is the maximum SPL of the Yamaha DXS12mkII?

The Yamaha DXS12mkII can achieve a maximum peak SPL of 134 dB SPL at 1 meter, offering robust sound pressure levels for demanding live sound environments.

What materials are used in the construction of the Yamaha DXS12mkII?

The Yamaha DXS12mkII is constructed from Meranti plywood with a black Polyurea coating, ensuring durability and protection during transport and use.
