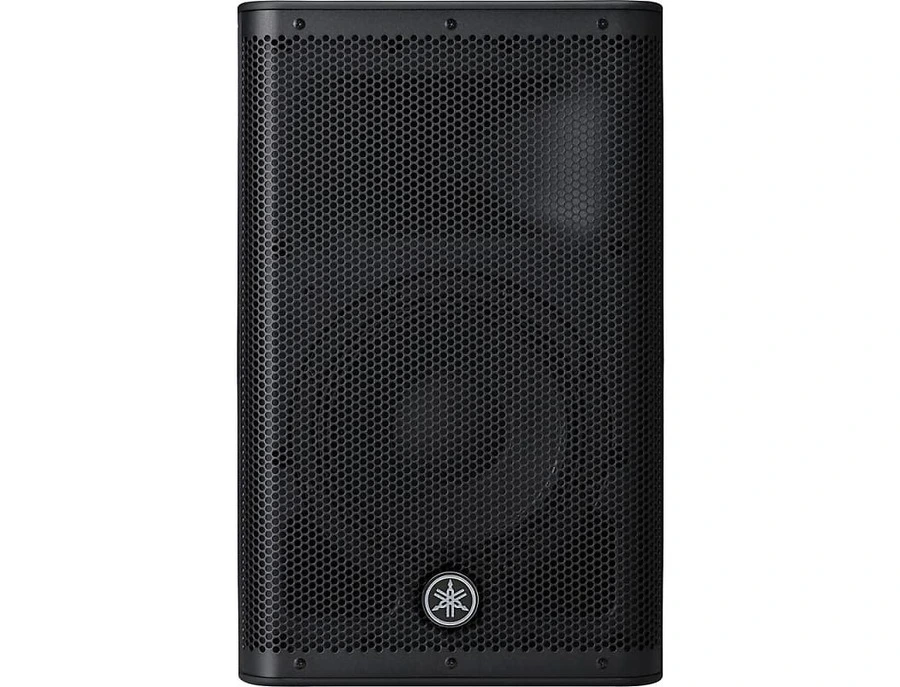

Elevate your sound experience with the Yamaha DXR10 mkII, a powerhouse in a compact form designed for live sound and stage applications. This active loudspeaker, with its Class-D 1100-watt amplifiers, is perfect for musicians, DJs, and audio professionals seeking top-tier audio clarity without the bulk. The DXR10 mkII is equipped with a 10" low-frequency driver and a 1.75" neodymium high-frequency compression driver, ensuring both deep bass and crystal-clear highs.

What sets the DXR10 mkII apart is its inclusion of Yamaha's D-Contour intelligent multiband compressor, which ensures consistent audio quality across all volume levels. Whether you're pushing the sound to its limits or keeping it subdued, your mix remains balanced and true. The advanced FIR-X tuning technology further enhances sound quality by optimizing frequency and phase response, providing a seamless crossover between drivers and delivering superior sound imaging.

For versatility, the built-in 3-channel mixer allows direct connectivity with microphones or line-level sources, making it an ideal solution for solo performers or smaller venues that don't require a full PA system. The robust ABS housing and 90° x 60° constant-directivity horn ensure durability and wide sound dispersion, respectively, making this loudspeaker a reliable choice for both indoor and outdoor events.

Key Features:

• 10" LF driver and 1.75" neodymium HF compression driver
• 1100-watt Class-D amplification (950W LF + 150W HF)
• D-Contour multiband compressor for consistent sound quality
• FIR-X tuning for optimized frequency and phase response
• Built-in 3-channel mixer for direct microphone or line-level input
• Durable ABS enclosure with 90° x 60° constant-directivity horn
• Frequency range: 56Hz - 20kHz
• Maximum SPL: 132 dB

Product specs

FAQs

What are the main connectivity options for the Yamaha DXR10 mkII loudspeaker?

The Yamaha DXR10 mkII offers versatile connectivity with 1 XLR-1/4" combo input for mic/line, 2 x 1/4" inputs for L/mono and R, and dual RCA stereo inputs. It also includes 1 XLR link out and 1 XLR thru output for easy integration with other audio equipment.

Is the Yamaha DXR10 mkII suitable for use as a stage monitor?

Yes, the Yamaha DXR10 mkII is designed for flexible use, including as a floor wedge stage monitor. Its 90° horizontal and 60° vertical coverage angles make it suitable for monitoring applications.

How powerful is the Yamaha DXR10 mkII, and what is its maximum SPL?

The Yamaha DXR10 mkII features a bi-amped Class-D power configuration with a total output of 1100 watts. It can deliver a maximum peak SPL of 132 dB, making it suitable for various live sound applications.

What is the frequency response range of the Yamaha DXR10 mkII?

The Yamaha DXR10 mkII has a frequency response range of 56Hz to 20kHz, ensuring clear and accurate sound reproduction across a wide spectrum of frequencies.

Can the Yamaha DXR10 mkII be mounted on a pole?

Yes, the Yamaha DXR10 mkII can be mounted on a pole, used as a floor wedge, or flown, providing flexibility for different live sound setups.

What type of drivers does the Yamaha DXR10 mkII use?

The Yamaha DXR10 mkII is equipped with a 10" low-frequency driver and a 1.75" neodymium compression driver, delivering powerful and precise audio performance.
