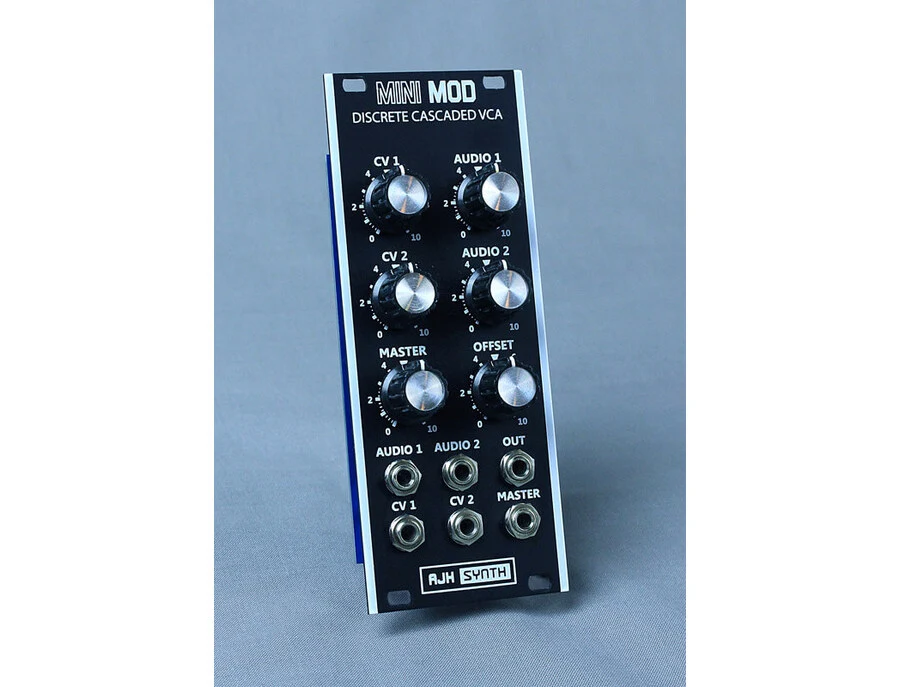

Unlock the full potential of your modular synthesizer with the AJH Synth MiniMod Discrete Cascaded VCA. Designed for those who crave sonic diversity, this module is a meticulously crafted replica of the iconic Model-D VCAs. Its discrete design provides a rich, analog warmth that digital models often struggle to replicate. Whether you're a seasoned pro or a modular enthusiast, this VCA promises a dynamic range that will elevate your soundscapes to new heights.

The MiniMod Discrete Cascaded VCA features an offset controller for VCA1 and a high-gain mode jumper for switchable overdrive, allowing you to sculpt your tones with precision. With two audio inputs, you can layer sounds effortlessly, while the master output ensures they are delivered with clarity. The module also offers a master CV input and two adjustable CV inputs, providing extensive modulation options.

Compact yet powerful, this module fits seamlessly into your setup with a width of 10 HP and a depth of 26 mm. Its efficient design means it consumes only +40 mA on +12 V and -22 mA on -12 V, making it an energy-conscious choice for your sonic explorations.

Key Features:

• Replica of Model-D VCAs for authentic analog sound
• Discrete design for sonic diversity
• Offset controller for VCA1
• Switchable high-gain mode for overdrive
• Two audio inputs and one master output
• Master CV input and two adjustable CV inputs
• Width: 10 HP
• Depth: 26 mm
• Current consumption: +40 mA (+12 V) / -22 mA (-12 V)

Owner's manual

Product specs

FAQs

What type of VCA is the AJH Synth MiniMod Discrete Cascaded VCA?

The AJH Synth MiniMod Discrete Cascaded VCA is a linear VCA, designed for precise control over audio signals in a modular synthesizer setup.

How does the AJH Synth MiniMod Discrete Cascaded VCA affect sound in a modular setup?

This VCA provides smooth, detailed control over the amplitude of your audio signals, allowing for dynamic sound shaping and modulation in your modular synth patches.

What is the width of the AJH Synth MiniMod Discrete Cascaded VCA in a Eurorack system?

The AJH Synth MiniMod Discrete Cascaded VCA has a width of 10 TE/HP, making it a compact yet powerful addition to any Eurorack modular synthesizer setup.

Is the AJH Synth MiniMod Discrete Cascaded VCA suitable for both audio and CV signals?

Yes, the AJH Synth MiniMod Discrete Cascaded VCA can handle both audio and control voltage (CV) signals, offering versatile applications in sound design and modulation.

Does the AJH Synth MiniMod Discrete Cascaded VCA offer exponential control?

No, the AJH Synth MiniMod Discrete Cascaded VCA is designed for linear control, which provides a more consistent and precise response across the amplitude range.
