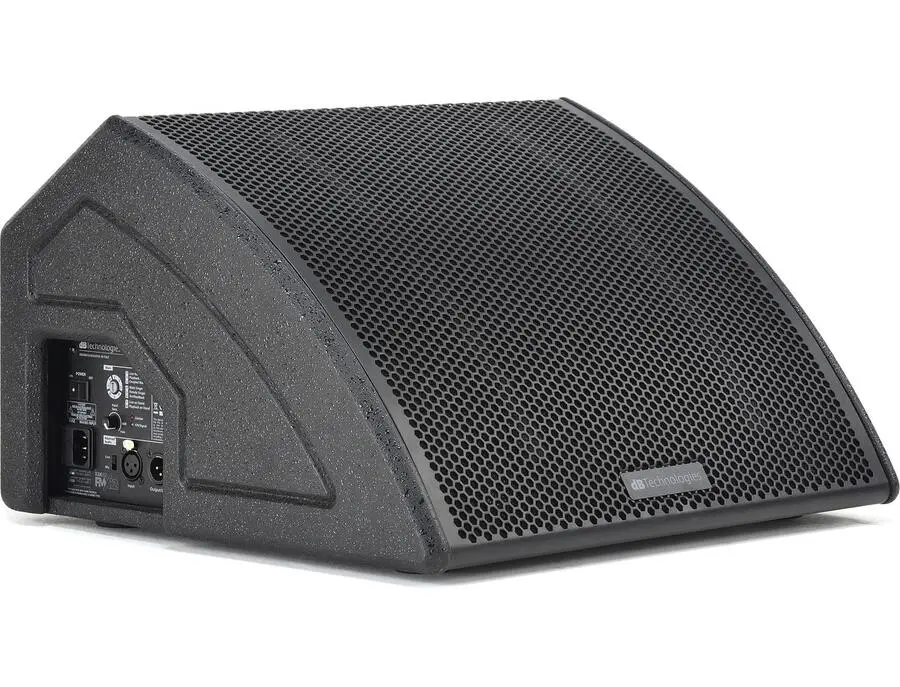

The dBTechnologies FMX12 12-inch Active Coaxial Stage Monitor is your passport to pristine stage sound. Engineered for performers who demand clarity and precision, this monitor combines robust Class D amplification with cutting-edge DSP processing. At its heart lies a coaxial acoustic design that promises seamless sound dispersion, whether you're rocking a packed stage or a cozy venue. With its rotatable horn, you can customize the sound field to suit your setup, offering 90° x 60° or 60° x 90° dispersion options.

The FMX12 doesn’t just sound good—it’s built to last. Housed in a durable plywood cabinet, it boasts a unique grille design and a convenient carrying handle for easy transport. The advanced DSP includes linear phase FIR filters and eight EQ presets, ensuring that you get the best sound possible, straight out of the box. Whether you're a seasoned sound engineer or a gigging musician, you’ll appreciate the monitor's ability to deliver sound with natural clarity and powerful presence.

Join the community of performers who trust dBTechnologies for their audio needs and elevate your stage setup with the FMX12.

Key Features:

• Active 2-way stage monitor with coaxial configuration
• Linear phase FIR filters for clear sound
• 24-bit/48kHz AD/DA conversion
• Rotatable horn with 90° x 60° or 60° x 90° dispersion
• 8 EQ presets for tailored sound
• Frequency response: 52Hz–19kHz
• Maximum SPL of 128dB
• Crossover frequency: 1,740Hz
• 24dB-per-octave LF/HF slope

Product specs

FAQs

What type of driver configuration does the dBTechnologies FMX12 use?

The dBTechnologies FMX12 features a 2-way active coaxial driver configuration with a 12-inch LF driver and a 1-inch HF compression driver.

How powerful is the dBTechnologies FMX12 stage monitor?

The dBTechnologies FMX12 delivers a total power of 1200W, with 600W RMS, providing ample output for live performance settings.

What is the frequency response range of the dBTechnologies FMX12?

The frequency response of the dBTechnologies FMX12 ranges from 52Hz to 19kHz, ensuring a wide coverage of audio frequencies for stage monitoring.

How does the dBTechnologies FMX12 handle input and output connections?

The dBTechnologies FMX12 is equipped with 1 XLR input and 1 XLR output, facilitating straightforward audio connectivity.

What is the maximum SPL of the dBTechnologies FMX12?

The dBTechnologies FMX12 can reach a maximum peak SPL of 128dB, making it suitable for high-volume stage environments.

Is the dBTechnologies FMX12 suitable for small to medium-sized venues?

Yes, with its 1200W total power and compact design, the dBTechnologies FMX12 is well-suited for small to medium-sized venues, offering clear and powerful sound reinforcement.
