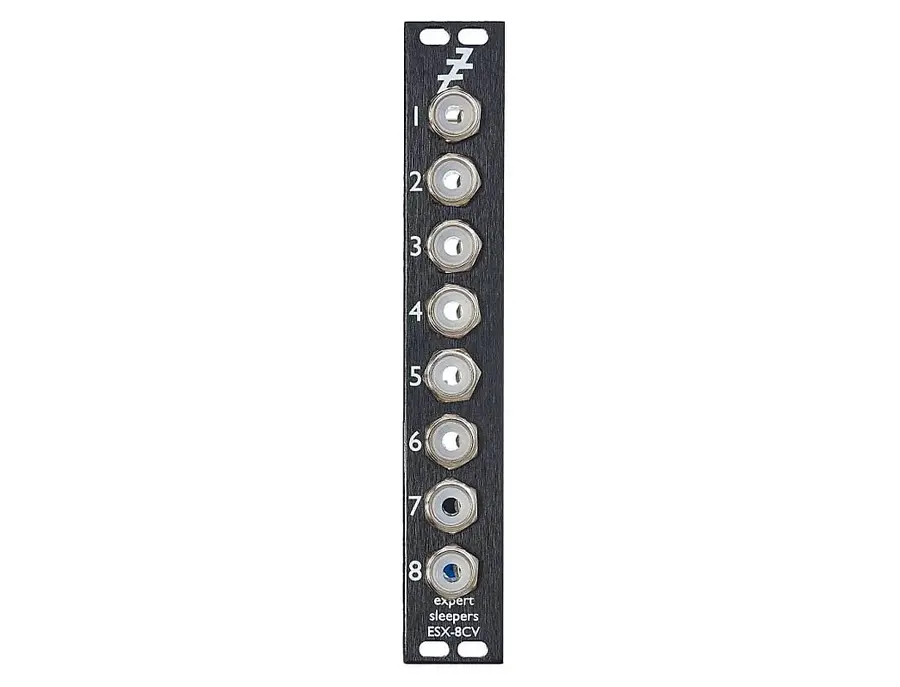

Elevate your modular synthesizer setup with the Expert Sleepers ESX-8CV MK2 CV Expander, a must-have for any Eurorack enthusiast seeking to enhance their sonic palette. This innovative module seamlessly integrates with the ES-4, ES-40, or ES-5, offering an impressive array of connectivity options that empower musicians to craft complex, evolving soundscapes.

The ESX-8CV MK2 is designed to expand your creative horizons with 8 CV outputs that are DC coupled and accessible via 3.5 mm mini jacks. This setup ensures that your modulation signals remain pristine, providing precise control over your analog gear. Whether you're dialing in the subtleties of a modular patch or adding dynamic expression to your live performances, this module is your reliable partner in musical exploration.

Central to the ESX-8CV MK2's capabilities is its 12-bit D/A conversion, ensuring high-quality signal processing that translates your digital instructions into rich, analog warmth. With hardware-calibrated output voltages of ±5.33V or uncalibrated settings up to ±9.5V via a simple jumper, you have the flexibility to tailor the module to your specific needs.

The power requirements are modest, drawing 41 mA at +12V and 33 mA at -12V, making it an efficient addition to your Eurorack system. Compact yet powerful, this CV expander is a sophisticated tool for both studio experimentation and live performance.

Key Features:

• CV extension for ES-4, ES-40, or ES-5 modules
• 8 CV outputs with 3.5 mm mini jack DC coupling
• Output voltages: ±5.33V hardware calibrated, ±9.5V uncalibrated (jumper setting)
• 12-bit D/A conversion for high-quality signal processing
• Power requirement: 41 mA at +12 V, 33 mA at -12 V

Product specs

FAQs

What is the primary function of the Expert Sleepers ESX-8CV MK2 CV Expander?

The Expert Sleepers ESX-8CV MK2 CV Expander is designed to extend the CV output capabilities of compatible Eurorack modules, allowing for additional control voltage outputs in modular synthesizer setups.

How does the ESX-8CV MK2 integrate with other Expert Sleepers modules?

The ESX-8CV MK2 is specifically designed to expand the CV outputs of the Expert Sleepers ES-4, ES-5, or ES-40 modules, providing up to eight additional CV outputs when connected.

Is the Expert Sleepers ESX-8CV MK2 suitable for use in a compact Eurorack setup?

Yes, with a width of only 4 HP, the ESX-8CV MK2 is compact and ideal for smaller Eurorack setups where space is at a premium.

Can the ESX-8CV MK2 be used for both audio rate and control voltage applications?

The ESX-8CV MK2 is primarily intended for control voltage applications, making it suitable for modulating parameters in your modular synth setup rather than processing audio signals.
