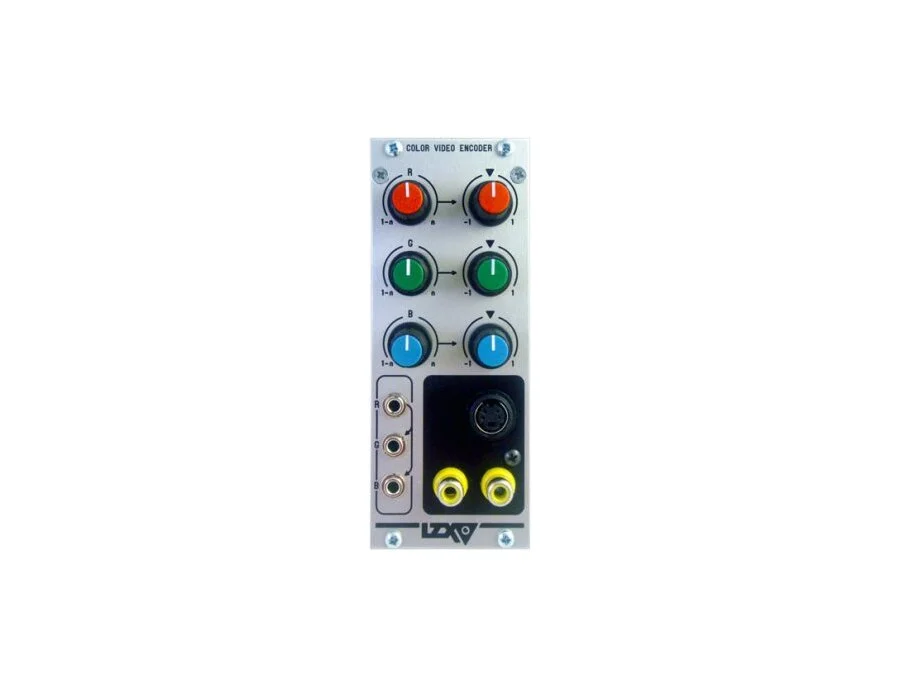

Dive into a world of visual creativity with the LZX Color Video Encoder, a pivotal component in the realm of modular synthesizers. Crafted specifically for the LZX Visionary System, this module transforms your video signals into a vibrant display, thanks to its sophisticated encoding process. By seamlessly integrating red, green, and blue input channels, it conditions and encodes them into valid YUV output video, supporting both composite and S-video formats. Whether you're aiming to project a vivid display or capture the moment with precision, this encoder ensures your visuals are always within the valid ranges dictated by professional video standards.

The module's design simplifies your creative workflow with input normalization, automatically connecting green and blue channels to the red input for hassle-free patching. Fine-tune your visual output with the bias control and attenuverter for each color channel, allowing precise adjustment and inversion of signals. This ensures your visuals maintain the perfect balance and brightness, regardless of the complexity of your setup.

For those who demand flexibility, the encoder supports PAL and NTSC formats with a simple jumper adjustment, catering to a variety of regional standards. Expand your system without limits; each encoder can draw synchronization from a single video sync generator, creating a cohesive network of color and creativity. Whether you're sending visuals to a monitor for preview or a projector for the audience, the encoder's three video outputs provide the versatility you need.

Key Features:

• Encodes RGB inputs to YUV output video for composite and S-video formats
• Input normalization for simplified patching
• Bias control and attenuverter for each color channel
• Supports PAL and NTSC formats via jumper adjustment
• Three video outputs: two composite, one S-video
• Requires master synchronization signals from a video sync generator
• Width: 10hp
• Maximum current draw: 100mA
