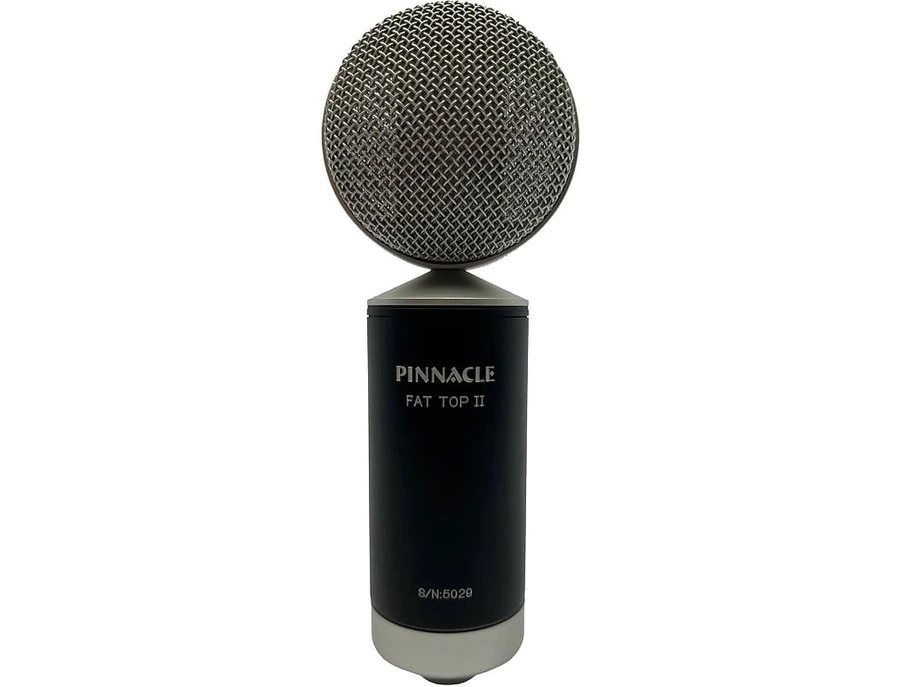

The Pinnacle Microphones Fat Top II Active/Passive Ribbon Microphone is a versatile and dynamic choice for any recording enthusiast or seasoned studio engineer. This short-ribbon microphone is designed to deliver a smooth, warm, and well-rounded tone, making it an exceptional tool for capturing the true essence of vocals, guitar cabinets, piano, brass, and percussion. With its innovative switchable active/passive electronics, you can enjoy up to 20dB of added gain, perfect for capturing quiet sources without compromising on quality or straining your preamp.

Equipped with an upgraded Lundahl LL2913 transformer, the Fat Top II extends its frequency range for improved sound definition, making it ideal for both studio and stage settings. Its bidirectional polar pattern ensures consistent sound capture from either side, with a large null that offers excellent isolation between sound sources. This makes it a go-to choice for recording engineers who need clarity and precision in their audio capture. With a maximum SPL of 135dB, it's well-suited for high-decibel sources like guitar amps and brass instruments, while still maintaining natural-sounding vocals.

Whether you're using it solo or in a Blumlein setup to capture an entire room, the Fat Top II is a reliable and high-performing addition to your microphone collection.

Key Features:

• Switchable active/passive mode with up to 20dB of added gain
• Upgraded Lundahl LL2913 transformer for extended frequency range
• Bidirectional polar pattern with excellent source isolation
• Handles up to 135dB SPL for high-decibel sound sources
• Perfect for guitar cabinets, piano, brass, and percussion
• Includes shockmount, carrying pouch, and aluminum case

Product specs

FAQs

What type of polar pattern does the Pinnacle Microphones Fat Top II have?

The Pinnacle Microphones Fat Top II features a symmetrical figure-8 polar pattern, which is ideal for capturing sound from both the front and rear, making it suitable for recording vocals and instruments in a studio setting.

Does the Pinnacle Microphones Fat Top II require phantom power?

Yes, in active mode, the Pinnacle Microphones Fat Top II requires 48V phantom power to operate, enhancing its versatility and performance in various recording environments.

What is the frequency response range of the Pinnacle Microphones Fat Top II?

The Pinnacle Microphones Fat Top II has a frequency response range of 30Hz to 15kHz (±3dB), providing a warm and natural sound that is well-suited for capturing detailed audio.

Can the Pinnacle Microphones Fat Top II handle high sound pressure levels?

Yes, the Pinnacle Microphones Fat Top II can handle a maximum sound pressure level of 135dB SPL, making it capable of recording loud sources without distortion.

What materials are used in the ribbon of the Pinnacle Microphones Fat Top II?

The ribbon in the Pinnacle Microphones Fat Top II is made from 99.99% pure aluminum, 2.5 microns thick, providing a responsive and detailed sound capture.

What accessories are included with the Pinnacle Microphones Fat Top II?

The Pinnacle Microphones Fat Top II comes with a Lundahl transformer, shockmount, carrying pouch, and an aluminum case, offering excellent value and protection for the microphone.
