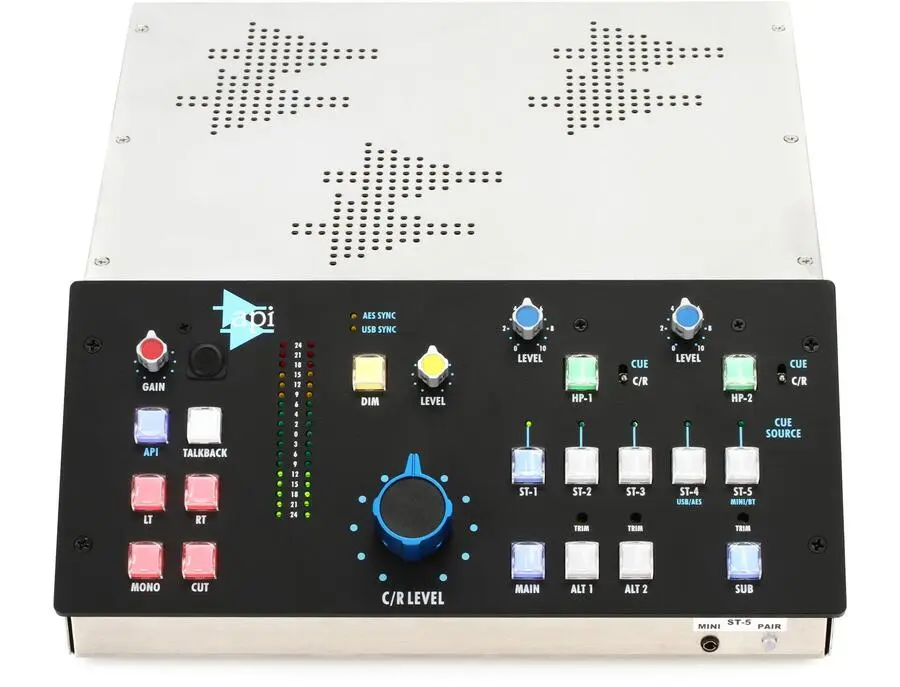

The API MC531 Monitor Controller is your gateway to a professional studio experience, designed to enhance any DAW-based workflow with precision and ease. Inspired by the heart of API's legendary analog consoles, this monitor controller is a powerhouse of features tailored for both commercial studios and personal creative spaces. Built with the exact same circuitry as API's renowned consoles, it promises low noise and crystal-clear sound reproduction, ensuring your mixes translate perfectly.

The MC531 offers unparalleled versatility with its extensive I/O options, accommodating your main monitors, alternate speakers, and even a subwoofer with seamless integration. With seven selectable stereo input sources, including analog, AES, USB, 3.5mm, and Bluetooth, this unit is ready for any audio source you throw its way. The 41-detent control room knob provides precise volume adjustments, while dual independent headphone outputs allow personalized mixes, making it perfect for collaborative sessions.

The built-in talkback microphone and mute, mono, and DIM functions are indispensable for efficient communication and control during sessions. Whether you're managing multiple monitor pairs or simply need a reliable controller that offers exceptional sound quality, the API MC531 is engineered to meet the demanding needs of today's audio professionals.

Key Features:

• Standalone version of API's analog console center section
• Low-noise, crystal-clear sound with API console circuitry
• Main and 2 alternate stereo outputs with speaker level matching
• Programmable subwoofer integration
• 7 selectable stereo input sources: analog, AES, USB, 3.5mm, Bluetooth
• 41-detent control room volume knob
• Dual independent headphone outputs
• Built-in talkback microphone
• Mute, mono, and DIM functions for all stereo outputs
• Integrated with API 2510 operational amplifier for inputs
• 18-segment LED meter for visual monitoring

Owner's manual

Product specs

FAQs

How many input sources can the API MC531 Monitor Controller handle?

The API MC531 Monitor Controller can handle up to seven stereo input sources, including both analog and digital inputs.

Does the API MC531 Monitor Controller support Bluetooth connectivity?

Yes, the API MC531 Monitor Controller features Bluetooth connectivity, allowing for wireless audio streaming from compatible devices.

Can the API MC531 Monitor Controller connect to multiple sets of studio monitors?

Yes, the API MC531 Monitor Controller supports three stereo balanced line level outputs for connecting up to three sets of studio monitors.

What type of digital input options are available on the API MC531 Monitor Controller?

The API MC531 Monitor Controller offers a digital input that is selectable between AES3 and USB.

Does the API MC531 Monitor Controller have a built-in talkback feature?

Yes, the API MC531 Monitor Controller includes a built-in talkback microphone with gain control and an activation button.

Is there a dedicated output for a subwoofer on the API MC531 Monitor Controller?

Yes, the API MC531 Monitor Controller has a mono balanced line level output specifically for feeding a subwoofer, with adjustable trim level.
