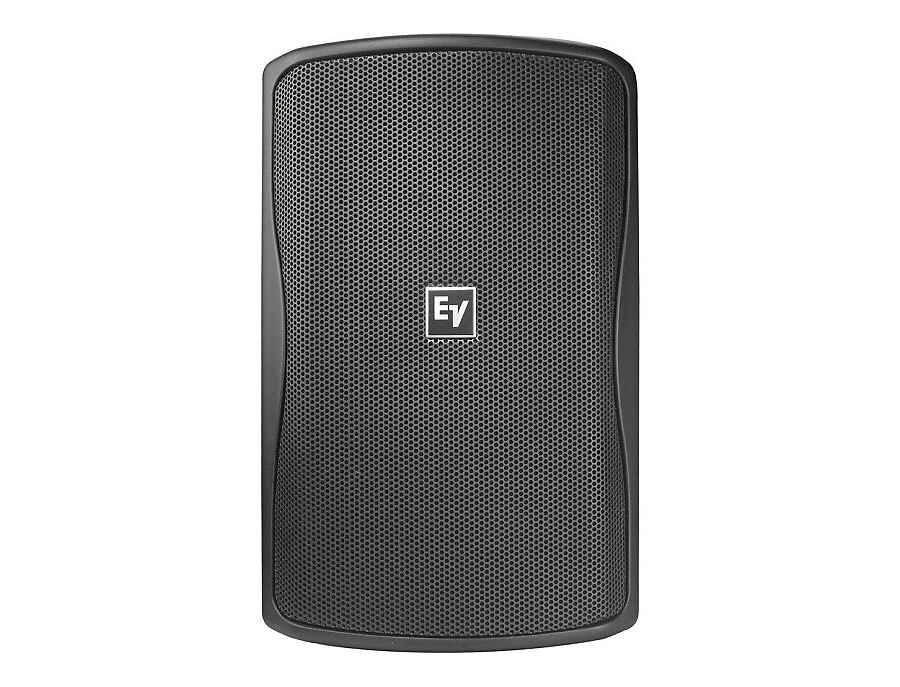

Looking for a versatile speaker that can handle both the rigors of the stage and the challenges of the outdoors? Meet the Electro-Voice ZX1i-90. This 8" 2-way passive speaker combines robust performance with the durability necessary for any setting, from concert halls to open-air venues. Its weather-resistant design, meeting IEC 529 and MIL-STD-810 standards, ensures that it will withstand the elements without compromising audio quality.

Beneath its sleek, molded ABS resin enclosure lies a powerhouse of sound. The 8" woofer and titanium high-frequency compression driver together produce a full-range frequency response from 60 Hz to 20 kHz, making every note crystal clear. The unique rotatable 90° x 50° horn supports long-throw and cluster applications, giving you flexible coverage options for any environment.

Installation is a breeze with the QuickSAM mounting system, allowing you to secure the speaker with ease. Plus, the removable 4-pin Euroblock connector simplifies connections, while the internal crossover network, equipped with a passive limiter, protects against overloads. Whether you’re a seasoned sound engineer or a passionate musician, the ZX1i-90 delivers reliability and exceptional sound performance.

Key Features:

• 8" EV8L long-excursion woofer and titanium high-frequency driver
• 200W continuous power handling (800W peak)
• Rotatable 90° x 50° horn for versatile coverage
• Weather-resistant ABS resin enclosure
• QuickSAM mounting system for easy installation
• Removable 4-pin Euroblock connector
• Internal crossover with passive limiter for overload protection

Product specs

FAQs

Is the Electro-Voice ZX1i-90 suitable for outdoor installations?

Yes, the Electro-Voice ZX1i-90 is a weather-resistant passive loudspeaker designed for both indoor and outdoor installations, making it ideal for various environments.

What is the power handling capability of the Electro-Voice ZX1i-90?

The Electro-Voice ZX1i-90 has an RMS power handling of 250 watts and can handle up to 800 watts peak, making it suitable for a wide range of sound reinforcement applications.

What is the horizontal and vertical beam angle of the ZX1i-90?

The Electro-Voice ZX1i-90 features a 90° horizontal and 50° vertical beam angle, providing a wide dispersion pattern suitable for diverse audio coverage needs.

Does the Electro-Voice ZX1i-90 have a mounting option for installations?

Yes, the ZX1i-90 is flyable with M8 mounting points and also features a 36 mm stand flange, offering versatile installation options for permanent and portable use.

What type of input and output connections does the ZX1i-90 speaker have?

The Electro-Voice ZX1i-90 utilizes Phoenix sockets for both input and output connections, ensuring secure and reliable connectivity for installation setups.
