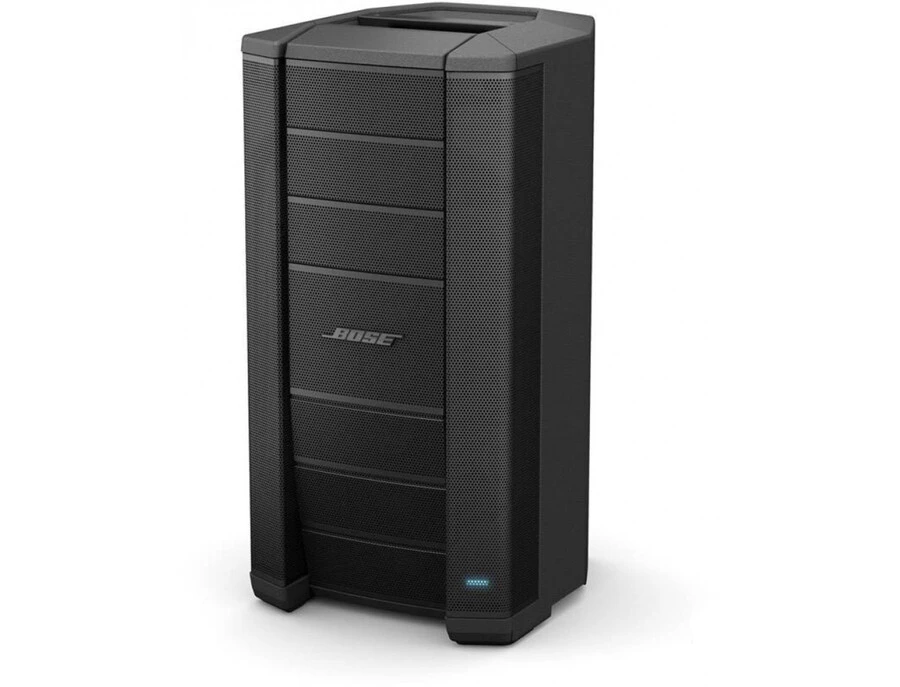

Get ready to elevate your live sound experience with the Bose F1 Model 812 Flexible Array Loudspeaker. This innovative speaker is designed to adapt to any venue, big or small, thanks to its unique Flexible Array Technology. Perfect for musicians, DJs, and presenters alike, the F1 Model 812 lets you tailor your sound coverage to suit the environment, ensuring your audience gets the best audio experience possible.

The F1 Model 812 is equipped with a powerful 1,000-watt amplifier and features a 12-inch woofer complemented by eight high-output mid/high drivers. These components work in harmony to deliver exceptional clarity and a full-range sound that reaches every corner of the room. With the ability to configure the speaker into four distinct vertical coverage patterns—Straight, C, J, and Reverse J—you have complete control to direct your sound exactly where it's needed.

Setting up the F1 Model 812 is a breeze, and its portability makes it a dream for on-the-go performers. Whether you're performing at floor level, on a stage, or in front of tiered seating, this loudspeaker adapts effortlessly, maintaining optimal tonal balance with automatic EQ adjustments. For those seeking even more punch, pair it with the optional Bose F1 Subwoofer for extended bass response.

Key Features:

• 1,000-watt bi-amplified design with a 12-inch woofer and eight high-output drivers
• Flexible Array Technology with four adjustable vertical coverage patterns
• Automatic EQ adjustments for consistent tonal balance
• Integrated 2-channel mixer with XLR, 1/4-inch, and RCA inputs
• Compatible with standard 35mm speaker stands
• Portable design with built-in handles for easy transport
• Optional F1 Subwoofer for enhanced low-frequency response (sold separately)

FAQs:

What is the Bose F1 Model 812?
The Bose F1 Model 812 is a powered, full-range loudspeaker with flexible array technology. Designed for live sound and portable PA use, it allows users to shape the vertical coverage pattern manually, making it adaptable to a variety of performance spaces.

What is Flexible Array Technology? How does it work?

• The speaker includes eight 2.25" mid/high drivers arranged in an adjustable array

• You can manually set the array to one of four patterns:

  • Straight

  • C

  • J

  • Reverse-J

• The system auto-adjusts EQ to match the selected pattern, optimizing tonal balance and coverage

What are the key specs and components?

• 1000W Class D bi-amplified power

• 12" woofer for low frequencies

• Eight 2.25" drivers for mids and highs

• Custom 100° waveguides for wide dispersion

• 2-channel integrated mixer

What inputs and outputs are available?

• Channel 1: XLR/TRS combo with mic/line switch and volume control

• Channel 2: Dual RCA and 1/4" TS/TRS with volume control

• Balanced XLR line output (mix of both channels)

What are its frequency range and SPL?

• Frequency Response (±3 dB): 55 Hz – 14 kHz

• Frequency Range (-10 dB): 48 Hz – 16 kHz

• Max SPL: 132 dB peak @ 1 meter

Is it designed to be used with a subwoofer?
Yes. It's ideal when paired with the Bose F1 Subwoofer, which includes an integrated stand and auto-engages a high-pass filter at 100 Hz for optimal frequency separation.

How portable is it?

• Material: High-impact composite with powder-coated steel grille

• Weight: 44.5 lbs (20.18 kg)

• Handles: Integrated for easy transport

Can it be pole-mounted?
Yes. It includes a 35mm pole socket for standard tripod mounts. It also connects seamlessly to the F1 Subwoofer’s built-in stand.

What applications is it best for?

• Live bands and solo performers

• Mobile DJs

• Worship services

• School and university events

• Hospitality venues

• Business presentations

Does it include DSP and protection features?

• Automatic EQ based on array position

• System limiter and overload protection for reliability

• Internal DSP for smooth performance

What’s the ideal pairing with the F1 Model 812?
The Bose F1 Subwoofer. It offers extended bass, a built-in stand, and cable management, making it the perfect match for a clean, pro setup.

Owner's manual

Product specs

FAQs

What is unique about the Bose F1 Model 812's flexible array feature?

The Bose F1 Model 812 allows you to control its vertical coverage pattern with four adjustable settings, making it adaptable for various venues whether you're at floor level, on a stage, or facing tiered seating.

Does the Bose F1 Model 812 require an additional subwoofer for optimal performance?

While the Bose F1 Model 812 can operate without a subwoofer, pairing it with the F1 subwoofer enhances low-frequency performance, especially in larger venues.

What are the connectivity options available on the Bose F1 Model 812?

The Bose F1 Model 812 offers a range of inputs including 1 x XLR/TRS combo, 1 x 1/4", and 1 x stereo RCA, plus an XLR output for versatile connectivity.

Is the Bose F1 Model 812 suitable for outdoor events?

With a powerful 1000W output and a maximum peak SPL of 132dB, the Bose F1 Model 812 is capable of delivering clear sound for outdoor events, though weather protection may be necessary.

How portable is the Bose F1 Model 812 for live performances?

Weighing 44.5 lbs and featuring a compact design with a tripod mount, the Bose F1 Model 812 is relatively easy to transport and set up for live performances.
