Description

Edit description

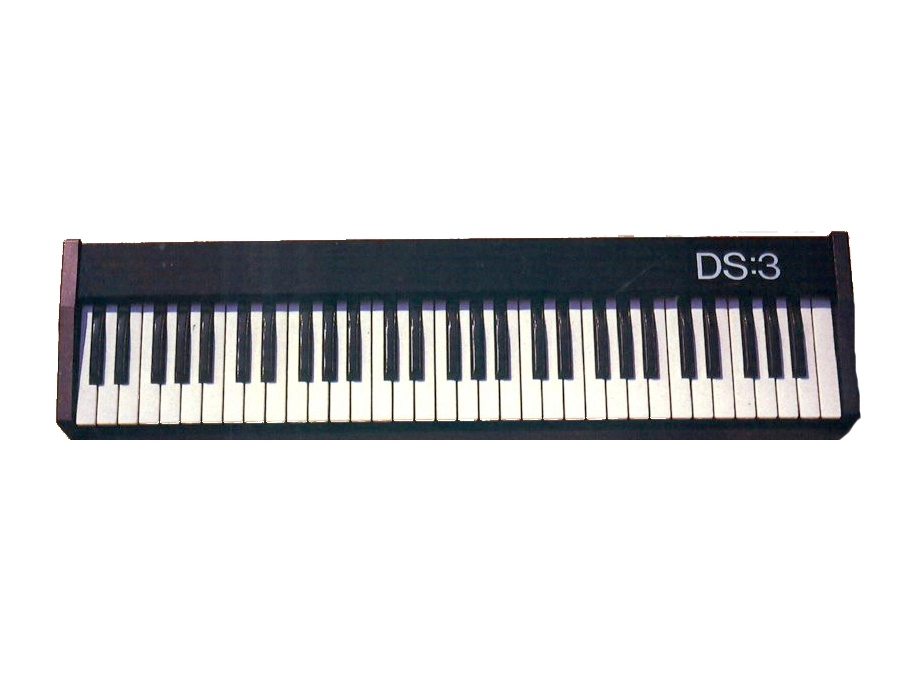

The DS:3 Sampler by Greengate. The Greengate DS:3 is a vintage sampler and keyboard expansion card for the Apple II+ (and compatible systems).

Specs:

• It was made in the 1980s. • Keyboard with 49 Keys • It is both a keyboard and a sampler card , so it lets you record (sample) sounds and then play them back via keys.
• It has limited polyphony (4‐note) but is multitimbral (can handle multiple samples/instruments) and supports layering of samples across the keyboard.
• The software for it includes features like a waveform editor viewed in oscilloscope style, pattern editing (e.g. arpeggios).
• All run on an Apple II with its basic text/graphics display.

Because so few of these units remain, there was a lot of mystery around how exactly they work:
• Many surviving cards have undocumented chips, or chips with their part numbers sanded off.
• One particular “mystery chip” turned out (via detective work) to be a DMA controller specifically matched to the Motorola MC6844 after pinout analysis.
• Someone (Bea Thurman) had a photo of the board and also the “album” that came with the Greengate, which used the PCB’s top‐layout as part of its artwork (helpful for reconstructing tracks / routing).
• The board has connectors: a DB‐25 via ribbon cable, and a 2×10 connector for the keyboard. Some of these connectors were nonstandard or modified in surviving units.
• Sample audio (cassette etc.) into memory.
• Very limited sample length compared to modern gear.
• Layer multiple samples across keyboard, use multiple timbres.
• Only 4‑voice polyphony.
• Pattern/arpeggio editing etc. for creative composition.
• User interface very basic (Apple II green screen, limited resolution etc.).
• Works with original keyboard hardware (if you can find it and adapt connectors).
• Hard to find parts (keyboard, foot pedals, ribbon cables), and lots of repair / wiring work needed.

Owner's manual

Greengate DS:3 User Manual

Videos

Add video

House of Angels

Sampler Greengate DS3, Apple II

House of Angels

Sampling, Synths and Computer Music on UK TV 1984 Greengate DS3

House of Angels

Reviews

Add review

Based on 0 Reviews and 0 Ratings

5 star

4 star

3 star

2 star

1 star

Artist usage

Add artist

Spike Edney

Guitarist, Keyboardist

Queen

Verified via Photo

In a 1985 Greengate brochure, a photo shows Spike Edney setting up a Greengate DS:3 alongside drummer Roger Taylor, likely for the ongoing Works tour. Colin Holgate, a software developer and co-founder of Greengate, has since further confirmed that Spike was a customer of theirs.
