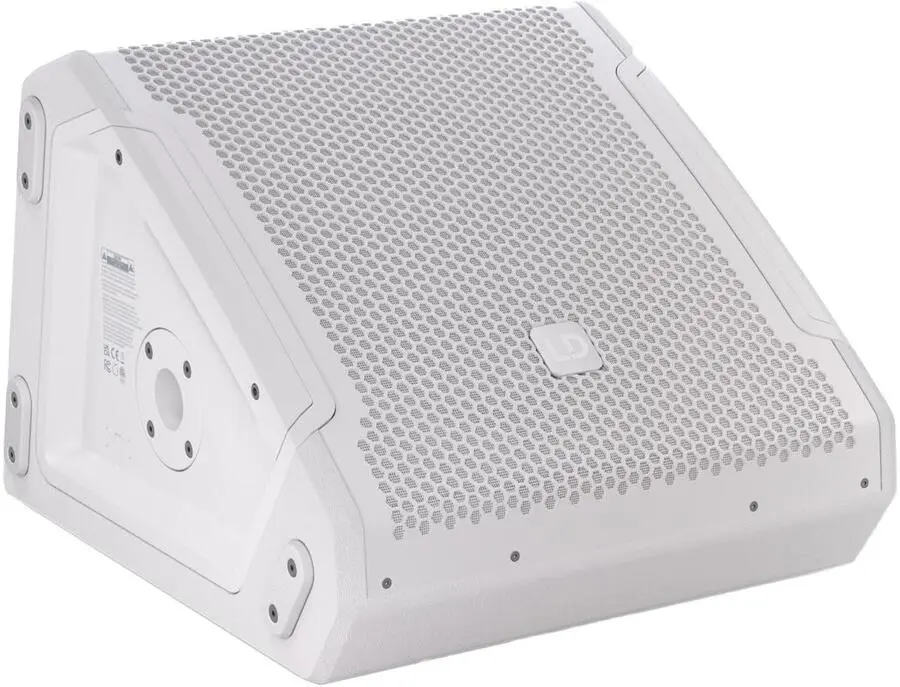

The LD Systems MON 10 A G3 is a compact powerhouse designed to elevate your live sound experience. This 10-inch powered coaxial stage monitor is equipped with a formidable 1,200-watt Class D amplifier, delivering a dynamic and assertive performance with every note. Its 10-inch woofer paired with a 1.75-inch titanium-diaphragm coaxial tweeter produces a rich, full-spectrum sound that spans from 58Hz to 20kHz. Whether you're playing in a small venue or a large stage, the BEM-optimized horn offers a generous 50-degree x 90-degree dispersion pattern, ensuring your sound reaches every corner of the stage.

Thanks to the state-of-the-art DynX DSP, the MON 10 A G3 provides distortion-free sound, even at maximum volume. This innovative technology includes four sound presets and a 3-band EQ for quick and intuitive sound adjustments. The tunable notch filter effectively eliminates feedback, while the delay line function compensates for distances up to 33 feet, making it versatile for various stage setups.

Built to last, the MON 10 A G3 features a robust polyurea coating and a heavy-duty front grille to withstand the rigors of the road. Its PowerCON-compatible loop-through power connection ensures a reliable power supply, allowing seamless daisy-chaining of multiple units. Add versatility to your setup with its 35mm speaker stand flange, perfect for front-of-house applications.

Key Features:

• 1,200-watt Class D amplifier with 126dB maximum SPL
• 10-inch woofer and 1.75-inch titanium-diaphragm coaxial tweeter
• 58Hz–20kHz frequency response with a 50° x 90° dispersion pattern
• Proprietary DynX DSP for distortion-free sound and feedback elimination
• 3-band EQ, four sound presets, tunable notch filter, and delay line function
• Rugged construction with polyurea coating and heavy-duty grille
• PowerCON-compatible loop-through power connection and speaker stand flange

Owner's manual

Product specs

FAQs

What is the power output of the LD Systems MON 10 A G3 stage monitor?

The LD Systems MON 10 A G3 stage monitor has a power rating of 300W RMS and a peak power output of 1200W, providing ample power for live performance settings.

What type of drivers does the LD Systems MON 10 A G3 use?

This stage monitor features a 10-inch woofer for low frequencies and a 1.75-inch high-frequency driver, arranged in a coaxial design for improved sound clarity and phase coherence.

Is the LD Systems MON 10 A G3 suitable for small to medium-sized venues?

Yes, with a maximum peak SPL of 126dB and a frequency response of 58Hz to 20kHz, the LD Systems MON 10 A G3 is well-suited for small to medium-sized venues, delivering clear and powerful sound.

What are the input and output options on the LD Systems MON 10 A G3?

The stage monitor offers two XLR-1/4" combo inputs and two 1/4" thru outputs, allowing flexible connectivity for various audio sources.

Does the LD Systems MON 10 A G3 stage monitor require an external amplifier?

No, the LD Systems MON 10 A G3 is a powered stage monitor, meaning it has an internal amplifier and does not require an external amplifier for operation.
