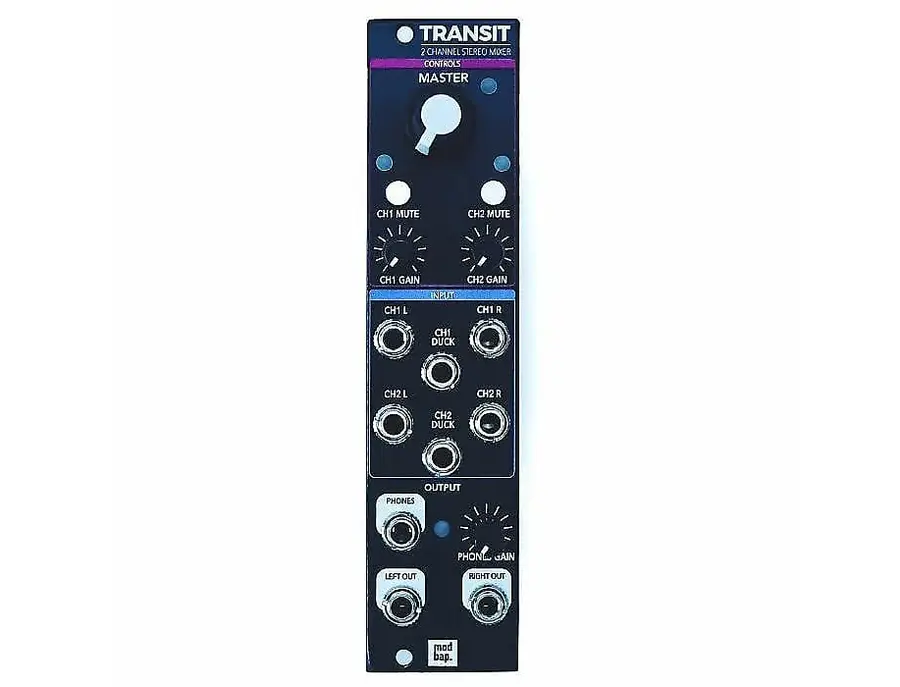

Unveiling the Modbap Modular Transit, a versatile 2-channel stereo mixer that embodies the innovative spirit of modular synthesis. This 6HP module is a sonic powerhouse, crafted with an all-analog signal path to ensure pristine audio quality. Each of its dual-mono stereo lanes offers individual gain control, mute functionality, and ducking inputs, enabling intricate soundscapes and dynamic mixes. The ducking feature allows for modular sidechain compression, with input signals, CV values, or trigger inputs such as LFOs or Clock controls. Front-panel LED indicators, which light up in a spectrum of colors, keep you visually informed of mute statuses and signal levels.

The Transit’s design doesn’t just stop at its robust internal capabilities. A dedicated 3.5mm headphone output with its own level control sits alongside the master volume knob, offering precision in monitoring and mixing. Whether you’re connecting it to Modbap’s Per4mer or expanding an existing setup, this module is engineered to seamlessly integrate into any Eurorack system, making it an indispensable tool for both seasoned synthesists and aspiring beatmakers.

Key Features:

• 6HP module size
• All-analog signal path for high-quality audio
• Dual-mono channel lanes with stereo output
• Independent gain controls for ducking inputs via signal, CV, or trigger
• LED-lit mute buttons for visual signal indication
• Dedicated 3.5mm headphone output with level control
• Master volume knob for overall output control

Product specs

FAQs

What is the primary function of the Modbap Modular Transit?

The Modbap Modular Transit is a 2-channel stereo mixer designed for Eurorack modular synthesizer systems, providing essential mixing capabilities within a compact 6HP module.

How many inputs and outputs does the Modbap Modular Transit have?

The Modbap Modular Transit features 6 analog inputs and 3 analog outputs, including 2 main outputs and 1 headphone output, all using 1/8" jacks.

Is the Modbap Modular Transit compatible with any Eurorack case?

Yes, the Modbap Modular Transit is compatible with any Eurorack case, requiring a power supply that provides +12V/50mA and -12V/50mA.

How deep is the Modbap Modular Transit module?

The Modbap Modular Transit module has a depth of 1.18 inches (30mm), making it suitable for most Eurorack cases.

Does the Modbap Modular Transit provide a headphone output?

Yes, the Modbap Modular Transit includes a dedicated 1/8" headphone output for convenient monitoring.
