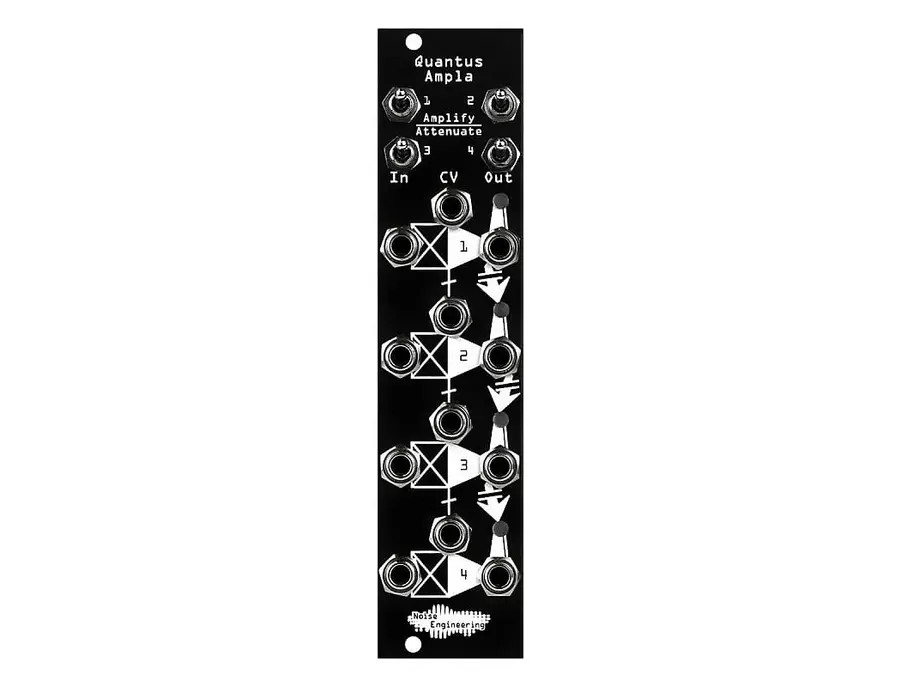

The Noise Engineering Quantus Ampla is a versatile 4-channel VCA module that promises to be an essential addition to any modular synthesizer setup. With its unique ability to handle both audio and CV signals through DC-coupled inputs, the Quantus Ampla offers a dynamic range of possibilities for sound sculpting. Each of the four channels includes a dedicated switch that toggles between amplifying and attenuating modes, allowing you to craft nuanced soundscapes with ease.

This 6HP module goes beyond the ordinary with its circular normalization of CV inputs, enabling simultaneous application of utilities to multiple voices. Whether you're looking to create synchronized pulsations or achieve complex ducking effects, the Quantus Ampla's flexibility ensures each channel can be independently modulated, giving you full control over your sonic environment. Additionally, its mixed-down outputs provide the option to function as a 3- or 4-channel mixer, or even as two 2-channel mixers, making it a compact powerhouse for any Eurorack enthusiast.

Join the community of innovative musicians who have discovered the endless opportunities presented by the Quantus Ampla, and elevate your sound design to new heights.

Key Features:

• 6HP module with 4-channel VCA control
• Amplify and Attenuate modes for each channel
• DC-coupled inputs for audio and CV signal modulation
• Dedicated CV inputs for independent channel modulation
• Mixed-down outputs for flexible mixer configurations
• Circular normalization for applying utilities to multiple voices simultaneously

Product specs

FAQs

What is the primary function of the Noise Engineering Quantus Ampla?

The Noise Engineering Quantus Ampla is a 4-channel compact VCA designed for amplifying and attenuating audio and CV signals in a modular synthesizer setup.

How many channels does the Quantus Ampla support, and what type of connections does it use?

The Quantus Ampla supports 4 channels, each with its own 1/8" analog input and output, as well as a CV input for control voltage modulation.

Does the Noise Engineering Quantus Ampla require any specific power supply?

Yes, the Quantus Ampla requires a Eurorack case and power supply, consuming +12V/65mA and -12V/60mA.

Can the Quantus Ampla be used for both audio and control voltage signals?

Yes, the Quantus Ampla is versatile and can be used to amplify or attenuate both audio and control voltage signals in a modular system.

What is the size of the Noise Engineering Quantus Ampla in HP?

The Quantus Ampla is a compact module with a size of 6HP, making it suitable for space-conscious Eurorack setups.

What controls are available on the Noise Engineering Quantus Ampla?

The module features 4 amplify/attenuate switches, allowing users to easily adjust the gain and signal flow for each channel.
