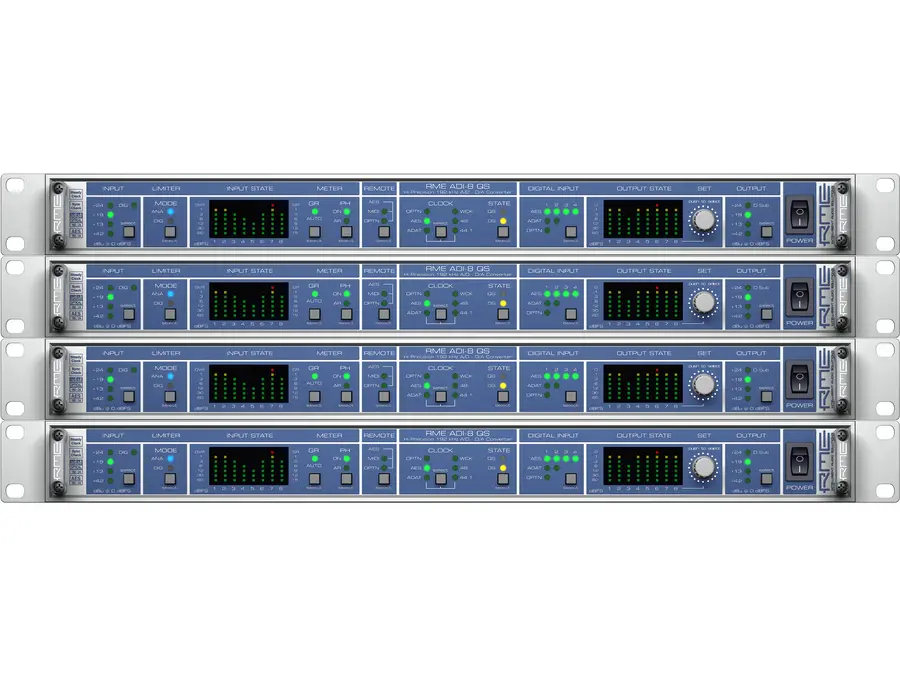

RME ADI 8 QS

AD/DA Converter 24 bit/192 kHz 8 x Balanced jack I/O 4 x AES / EBU I/O 2 x ADAT I/O Word clock sync MIDI I/O Optional MADI I/O Size: 19"/ 1 U Full remote control via MIDI

Remote Controllable 8-channel AD/DA Converter RME converters and interfaces are among of the most popular on the planet. The reason being, their excellent sound quality, extraordinary feature sets, and universal compatibility. In fact, most product specialists who come to Sweetwater to demo audio software of all types use RME interfaces since they will work with just about any system you plug them in to. Now RME adds a remote controllable 8-channel AD/DA conversion to their repertiore of products with the new ADI-8 QS AD/DA Converter. The ADI-8 QS is a new highly flexible and fully featured 8-channel AD/DA converter. The ADI-8 QS combines excellent analog circuit design with outstanding low latency AD/DA converter chips.

RME ADI-8 QS AD/DA Converter at a Glance: Reference class 8-channel, 24 bit/192 kHz remote controllable AD/DA converter New digital filters reduce the conversion delay to just 8 samples 2 x ADAT I/O, 25-pin AES/EBU, expansion slot for MADI option card Full remote control, intelligent Clock, SyncCheck, and SyncAlign 8-channel AD/DA Along with SteadyClock, the QS surely redefines the reference class of analog/digital converters. The compact 19"/ 1U device has a host of extraordinary features, including analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O up to 192 kHz, optional MADI I/O, remote control via MIDI, remote digital input trimming for full input calibration, remote volume control for all 8 analog outputs, either separately, globally, ganged and much more.

Serious Low-latency The analog inputs and outputs feature the same circuitry as RME's well-known ADI-8 series, ensuring excellent signal to noise ratio and low THD. On the digital side, SteadyClock, RME's unique clock technology and jitter suppression, further enhances the list of features, ensuring the best sound quality regardless of the quality of the reference clock signal. The QS uses the latest AD- and DA-converter circuits with up to 192 kHz, with S/N ratios of 120 dBA. New digital filters reduce the conversion delay from over 40 samples to just 8 samples. Now that's some serious low-latency!

Numerous Interface Options The ADI-8 QS also offers an unsurpassed choice of interface options. In addition to 2 ADAT I/Os that support up to 192kHz (S/MUX), the device also features a 25-pin AES/EBU interface for all inputs and outputs. And that's not all - The ADI-8 QS features RME's latest technological achievement - an expansion slot that makes the device even more flexible. The slot can host a MADI option card for direct connection to MADI systems. All interface options can be used simultaneously under all conditions; analog (balanced TRS and/or D-Sub), ADAT, AES/EBU and the MADI option card.

Remote Control Within the ADI-8 series of converters, the full remote controllability of the QS allows the device to be placed anywhere on stage or in the studio as a remote controllable SuperStageBox with full access from the control room or FOH mixer. Other typical RME features like Intelligent Clock Control (ICC), SyncCheck, and SyncAlign have also been implemented.

RME ADI-8 QS AD/DA Converter Features:

8-channel AD converter, fully symmetrical design, 120 dBA S/N 8-channel DA converter, double balanced output, 120 dBA DA Low latency conversion: only 8 samples of delay! 2 ADAT optical inputs, 24 bit, with RME's unsurpassed Bitclock PLL, up to 192 kHz 2 ADAT optical outputs, 24 bit, fully compatible, up to 192 kHz 8 AES/EBU I/Os, full channel count up to 192 kHz, 24 bit, connected via D-sub 8-channel Digital Input Trim over a range of 6 dB Full remote controllability via MIDI and MIDI via MADI All settings are stored permanently Included Remote Control for store/recall of presets, volume and dim Optional MADI module
