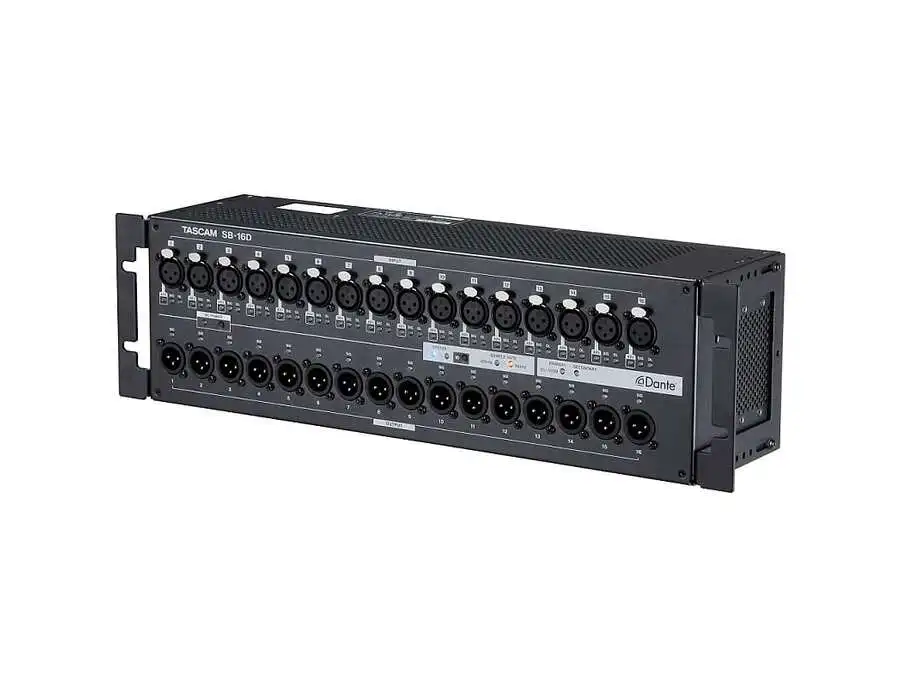

Transform your studio or live stage setup with the TASCAM SB-16D 16-Channel DANTE Stagebox, a powerhouse of connectivity and control. Seamlessly integrating with TASCAM Sonicview mixers, this Dante-enabled stagebox offers an impressive 16-in/16-out configuration, perfect for accommodating complex audio environments. Each of the 16 XLR mic/line inputs is equipped with +48V phantom power and Class 1 HDIA preamps, ensuring pristine audio quality with minimal noise and distortion.

The SB-16D's rugged design provides flexibility in placement, whether you're mounting it in a 3U rack or using it as a floor box. Equipped with dual etherCON-compatible Dante ports, it ensures redundancy and robust connectivity, supporting both AES67 and SMPTE 2110 interoperability. For those who need more, the SB-16D can be expanded by networking multiple units, making it ideal for large ensembles or complex audio installations.

Remote control is a breeze with the TASCAM IO Control app, offering offline editing and parameter adjustments from your macOS, Windows, or iPadOS devices. Whether in a concert hall, studio, or corporate event, this stagebox provides the versatility and reliability you need.

Key Features:

• 16 XLR mic/line inputs with +48V phantom power and SIG OL LED indicators
• 16 XLR line outputs with signal monitoring LEDs
• Class 1 HDIA preamps for superior audio fidelity
• Redundant Dante operation with primary/secondary lines
• Supports 96 kHz sampling and 32-bit precision
• Compatible with TASCAM Sonicview mixers for enhanced control
• Remote control via TASCAM IO Control app
• Expandable 8-in/8-out GPIO, doubling when used with Sonicview mixers
• Rackmountable (3U) or floor installation options
• EtherCON-compatible Dante ports for robust connections
• Supports AES67 and SMPTE 2110 interoperability
• DC input for optional redundant power supply (not included)

Product specs

FAQs

What is the primary function of the TASCAM SB-16D 16-Channel DANTE Stagebox?

The TASCAM SB-16D functions as a 16-input/16-output Dante stage box, providing seamless audio networking with Dante-enabled devices, ideal for live sound and studio applications.

Is the TASCAM SB-16D compatible with other Tascam products?

Yes, the TASCAM SB-16D is specifically compatible with the Tascam Sonicview series, allowing for integrated control and connectivity.

Can the TASCAM SB-16D be rack-mounted?

Yes, the TASCAM SB-16D supports both floor installation and 3U rack-mounting, providing flexible installation options to suit various setup needs.

Does the TASCAM SB-16D support redundant power supply?

The TASCAM SB-16D offers an optional redundant power supply feature, ensuring continued operation during power interruptions, though the redundant power supply is not included.

What are the connectivity options for the TASCAM SB-16D?

The TASCAM SB-16D features 16 XLR mic/line inputs, 16 XLR line outputs, and data I/O through 2 Dante ports and 1 DB-25 (GPIO), with computer connectivity via Ethernet.
