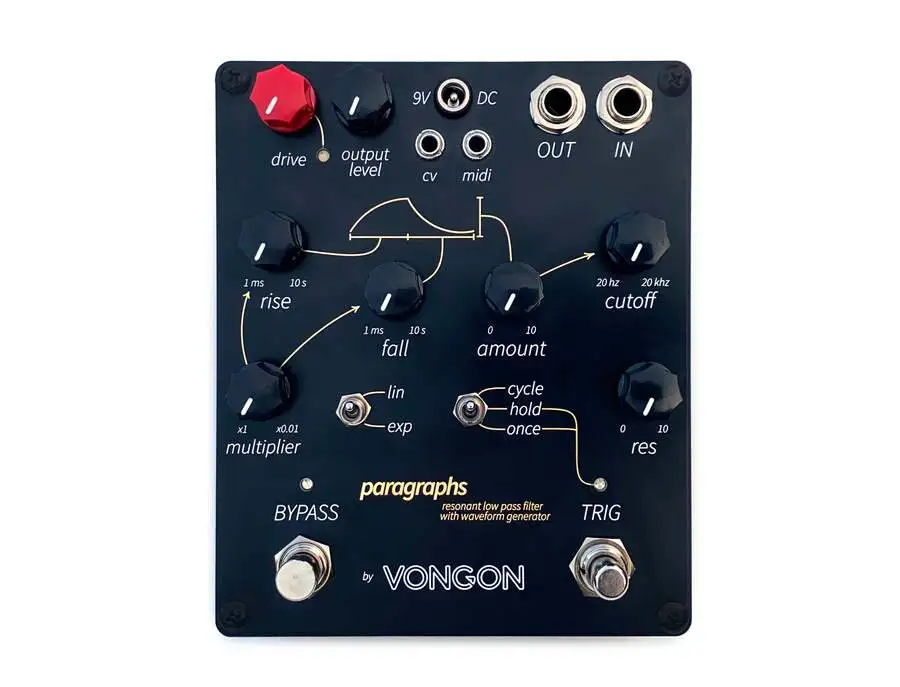

Paragraphs is an analog four-pole resonant low pass filter with an attack, decay (AD) envelope generator designed with focus on simplicity and flexibility.

Low Pass Filter

The heart of the filter circuit is the AS3320 analog chip — a modern replica of the same component used in analog classics like the Sequential Prophet 5, Pro-One mono-synth, Elka Synthex, and the LinnDrum. Cutoff spans the full audio spectrum and resonance starts to self-oscillate at about seventy percent.

Modulation

The envelope generator offers modulations in an uncommonly wide range of frequencies — starting as low as 0.05 hz for slowly evolving 20 second long cycles, and reaching up to (and past) the audio threshold at 300 hz for a wave shaping effect similar to sounds found on west coast style synthesizers (“think Buchla”).

Flexible Gain Stages

Paragraphs accepts instrument and line level signals. Dedicated controls for input (drive) and output level make it easy to move between a crystal clear clean tone and and a clipping fuzz. A multi-color LED provides a visual representation of the signal level. Red indicates clipping. Orange flashes indicate the start of overload. Green indicates the presence of signal at or below the nominal level.

CV and MIDI

Inputs for Control Voltage (CV) and midi are available to remotely trigger the envelope generator. This enables your Paragraphs to stay in rhythmic synchronization with external systems like midi sequencers, euroracks, and digital audio workstations.

Specifications

• 1/4” mono input/output jacks

• 2.1mm DC Connector

• 5.7” x 4.7” x 1.5” enclosure dimensions

• true bypass

• input impedance: 1MΩ

• output impedance: <1kΩ

• power supply: 9 to 9.6 VDC center negative

• current draw: 100mA max

Product specs

FAQs

What type of effects does the Vongon Paragraphs pedal offer?

The Vongon Paragraphs pedal provides filter and wah effects, along with noise generation capabilities, allowing for unique sound sculpting possibilities.

Is the Vongon Paragraphs pedal suitable for both guitar and bass?

Yes, the Vongon Paragraphs pedal can be used with both guitar and bass, offering versatile filtering and noise effects for different instruments.

What power supply is required for the Vongon Paragraphs pedal?

The Vongon Paragraphs pedal requires a standard 9V DC power supply, typical for most guitar pedals.

Can the Vongon Paragraphs pedal be used in a live performance setting?

Yes, the Vongon Paragraphs pedal is designed for live performance use, providing dynamic filter and noise effects that can be adjusted on the fly.

Does the Vongon Paragraphs pedal work well with other effects pedals?

The Vongon Paragraphs pedal integrates well with other effects pedals, allowing it to be part of a larger effects chain for creative sound design.
