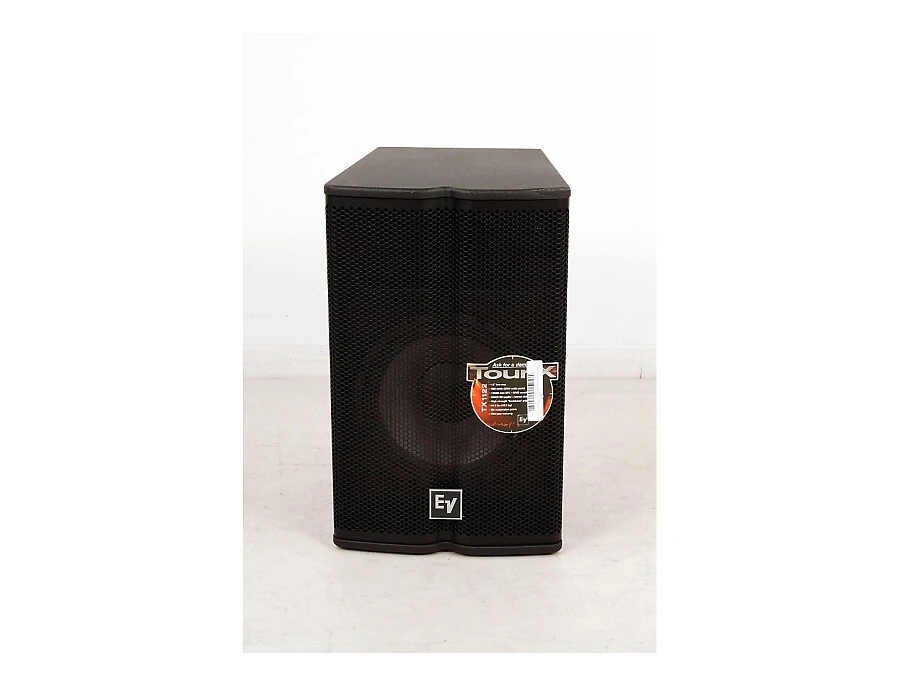

Elevate your live sound experience with the Electro-Voice TX1122 Tour Series 12" 2-Way Passive Speaker, engineered for versatility and exceptional audio performance. This powerhouse of a loudspeaker is designed for those who demand high-quality sound reinforcement in a user-friendly, lightweight design. Whether you're on the road or setting up a permanent installation, the TX1122 is your go-to solution.

At the heart of this speaker is the DH3, a high-output 1.25" titanium compression driver that works in concert with a 90-degree x 50-degree constant directivity horn. This ensures a clear and consistent sound from short to medium distances, all the way up to 20 kHz. Meanwhile, the SMX2120 12" woofer, featuring an FEA-optimized magnet structure, minimizes distortion, delivering crisp intelligibility even at high sound pressure levels.

The TX1122 is built for durability and functionality. Its enclosure is crafted from a robust mix of plywood and MDF, finished with EVCoat for added resilience without the heft. The speaker's grille is both strong and dent-resistant, perfect for the rigors of touring. With four-way handles, a pole mount, and multiple suspension points, the TX1122 adapts effortlessly to any setup. Plus, the recessed input panel featuring dual NL4 connectors allows for seamless integration with additional subwoofers, ensuring an extended bass response without the need for extra processing.

Key Features:

• High-output DH3 1.25" titanium compression driver
• SMX2120 12" woofer with FEA-optimized magnet structure
• Constant directivity 90° x 50° horn
• Durable plywood and MDF construction with EVCoat finish
• Versatile mounting options: pole mount, suspension points
• Recessed input panel with dual NL4 connectors
• Dent-resistant grille with rotatable logo

Product specs

FAQs

What is the power handling capacity of the Electro-Voice TX1122 speaker?

The Electro-Voice TX1122 speaker can handle 500 watts continuously and up to 2000 watts at peak power, making it suitable for high-demand live sound applications.

Does the Electro-Voice TX1122 require an external amplifier?

Yes, the Electro-Voice TX1122 is a passive speaker and requires an external amplifier to function, as it does not have built-in amplification.

What is the coverage pattern of the Electro-Voice TX1122 speaker?

The Electro-Voice TX1122 features a 90-degree by 50-degree full-range coverage pattern, providing wide dispersion suitable for various live sound environments.

Can the Electro-Voice TX1122 be mounted on a tripod?

Yes, the Electro-Voice TX1122 is equipped with a pole mount, allowing it to be easily mounted on a standard speaker tripod for flexible positioning.

What type of drivers does the Electro-Voice TX1122 use?

The Electro-Voice TX1122 uses a DH3 1.25" diaphragm, 1" exit pure titanium compression driver for high frequencies and an SMX2120 12" low-frequency transducer with fully symmetric drive.
