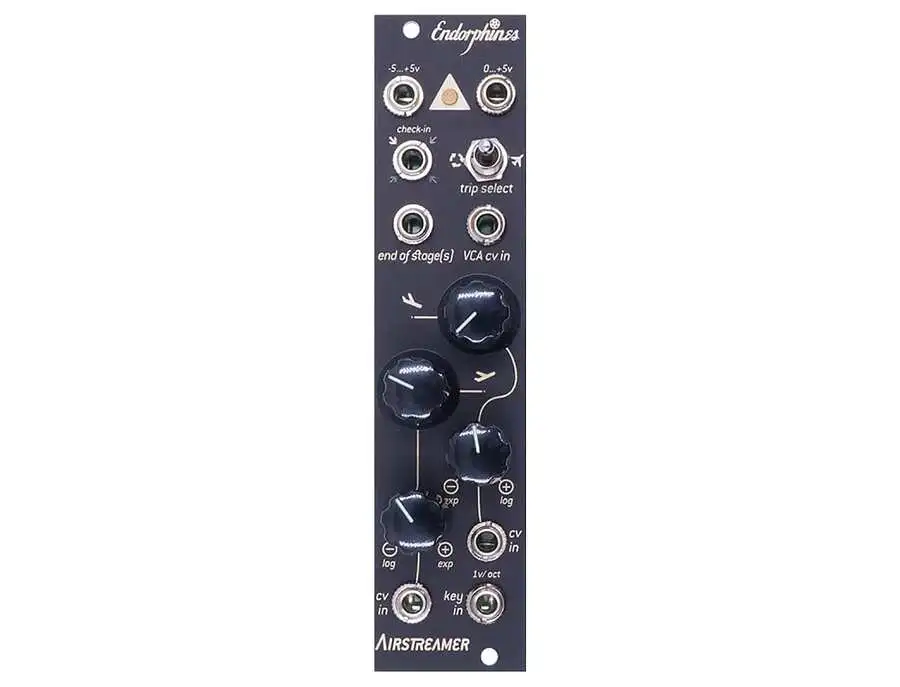

Dive into a world of sonic possibilities with the Endorphin.es Airstreamer 4 Eurorack Synth Module, a compact powerhouse designed for modular enthusiasts eager to expand their creative horizons. This versatile function generator is your gateway to dynamic sound shaping, offering a robust set of controls and features that cater to both seasoned musicians and aspiring sound designers.

With dedicated controls for Rise, Fall, and Characteristic, the Airstreamer 4 allows you to craft envelopes with precision, ranging from exponential to logarithmic curves. The mode switch effortlessly toggles between cycle/looping, AD envelope, and ASR envelope modes, providing flexibility to suit various musical contexts. Whether you're seeking to use it as a VCO, slew limiter, or sample & hold, the 1V/oct signal input ensures seamless integration with your existing setup.

The module also features a bipolar VCA CV input and Trigger/Gate/Reset input, alongside unipolar and bipolar signal outputs, offering expanded modulation capabilities. The End-of-Cycle (EOC) output is an added bonus, perfect for triggering other modules in your system. Despite its depth of functionality, the Airstreamer 4 maintains a sleek profile, drawing just 60mA on +12V and 15mA on -12V power rails, making it an efficient addition to any Eurorack system.

Key Features:

• Compact function generator with Rise, Fall, Characteristic, and Amp controls
• Mode switch for cycle/looping, AD envelope, and ASR envelope
• 1V/oct signal input for versatile use (VCO, slew limiter, etc.)
• Bipolar VCA CV input and Trigger/Gate/Reset input
• EOC output with unipolar and bipolar signal output
• Power consumption: 60mA (+12V) / 15mA (-12V)
• Width: 4 U, Depth: 26 mm

Product specs

FAQs

What type of synthesis does the Endorphin.es Airstreamer 4 module use?

The Endorphin.es Airstreamer 4 is a function generator module, often used for envelope generation or modulation purposes in a Eurorack setup, enabling complex modulation patterns.

How wide is the Endorphin.es Airstreamer 4 module for Eurorack systems?

The Endorphin.es Airstreamer 4 is 4 HP wide, making it a compact addition to your Eurorack setup.

Can the Endorphin.es Airstreamer 4 be used for audio rate modulation?

Yes, the Endorphin.es Airstreamer 4 can operate at audio rates, allowing it to be used for both modulation and audio signal processing in your modular system.

Is the Endorphin.es Airstreamer 4 suitable for beginners in modular synthesis?

The Endorphin.es Airstreamer 4 is suitable for both beginners and advanced users, offering straightforward functionality with the potential for complex modulation when combined with other modules.
