Description

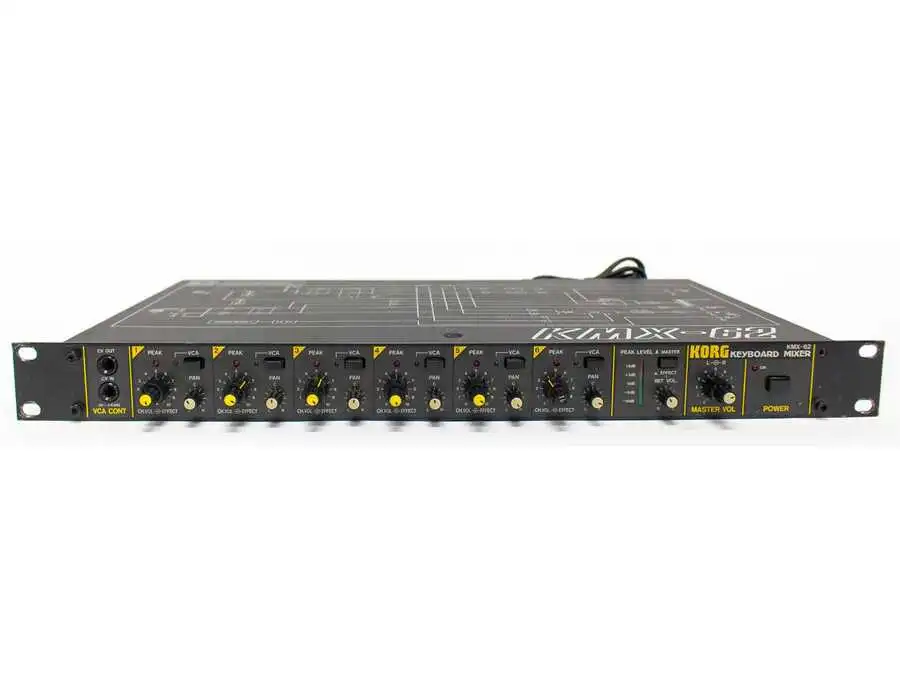

Korg KMX-62 Keyboard Mixer
The Korg KMX-62 is a vintage 6-channel rackmount keyboard mixer designed for synthesizers, drum machines, keyboards, and line-level instruments. Built in a compact 1U rack format, it provides independent control for each channel while keeping the setup simple and stage-ready.
Key Features
- 6-channel keyboard / line mixer
- Compact 1U rackmount design
- Stereo master output
- Individual channel volume controls
- Individual effect send controls
- L/R pan control per channel
- Peak level LEDs
- Master L/R volume controls
- Stereo effect return
- VCA control system for external volume control
- Foot pedal / control voltage compatibility
- Rugged vintage Korg construction
Technical Specifications
- Type: 6-channel rackmount keyboard mixer
- Format: 19-inch rack, 1U
- Inputs: 6 × 1/4" input jacks
- Input Level: -35 dB
- Input Impedance: 10 kΩ
- Outputs: Stereo L/R 1/4" outputs
- Effect Send: Mono send
- Effect Return: Stereo L/R return
- Effect Send Level: -20 dB
- Effect Return Level: -10 dB
- Input Control Range: 10 kΩ
- Output Impedance: 10 kΩ
- Headphone Output: 60 mW + 60 mW
- Dimensions: 482 × 273 × 44 mm
- Weight: Approx. 3.7 kg
- Power Consumption: 10 W
- Accessories: Rack mounting screws
- Optional Accessories: Korg VC-002 foot pedal volume control, connection cords
The Korg KMX-62 is ideal for keyboard players and synthesizer setups that require a simple, compact mixer with hands-on controls, effect routing, stereo output, and external VCA volume control. Its 1U rackmount size makes it especially useful for live rigs, studio racks, and vintage synth systems.
Reviews
Based on 0 Reviews and 0 Ratings
Artist usage
Add artist
A noroism Instagram archive post about Issei Noro’s October 1987 post-Platinum setup lists the Korg KMX-62 as part of his late-1980s rack-based guitar system. It appears at the mixing/routing stage of the effects chain after the modular effects and rack processors.
