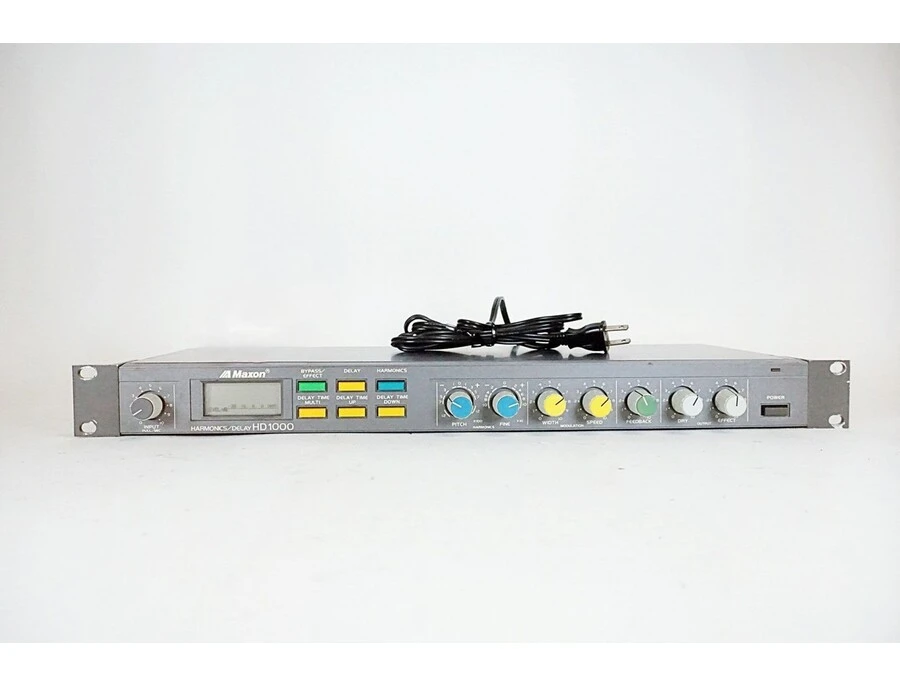

Maxon HD1000 Harmonics / Delay

The Maxon HD1000 Harmonics / Delay is a vintage 1U digital rack processor that combines a high-quality pitch shifter/harmonizer with a full-featured digital delay. Introduced in the early 1980s and also marketed under the Ibanez name, the HD1000 was one of the first affordable processors to integrate real-time harmonizing and digital delay in a single unit, making it popular for studio recording, live performance, and PA applications. :contentReference[oaicite:0]{index=0}

Using proprietary digital signal processing and a phase-splice algorithm, the HD1000 produces smooth pitch shifting with significantly reduced audible glitches compared to many early digital harmonizers. It can shift pitch up or down by up to 13 semitones, making it suitable for octave effects, melodic harmonies, micro-pitch doubling, and experimental sound design. :contentReference[oaicite:1]{index=1}

In addition to its harmonizer, the HD1000 includes a versatile digital delay with up to 504 ms of delay time. Built-in modulation allows the delay to create flanging, chorus, vibrato, automatic double tracking (ADT), slapback echo, hard reverb, and long echo effects. The processor also features an LCD status display, external bypass control, and an effects loop that can be inserted into the feedback path for advanced processing techniques. :contentReference[oaicite:2]{index=2}

Key Features

• Vintage digital harmonizer and delay processor
• Real-time pitch shifting up to ±13 semitones
• Digital delay with up to 504 ms delay time
• Built-in LFO modulation for chorus, flanging, and vibrato
• Coarse and fine pitch adjustment
• Pitch modulation capability
• Proprietary phase-splice pitch-shifting algorithm
• LCD display for delay time, pitch shift, and input level
• External bypass footswitch input
• External feedback loop for advanced effects routing
• Microprocessor-controlled operation
• 19-inch, 1U rackmount design
• Made in Japan

Technical Specifications

• Model: Maxon HD1000 Harmonics / Delay
• Type: Digital Harmonizer / Digital Delay
• Rack Format: 19-inch, 1U
• Year Introduced: 1983
• Country of Manufacture: Japan
• Pitch Shift Range: ±13 semitones
• Fine Pitch Adjustment: 10-cent resolution
• Delay Time Ranges:
  • 0–126 ms @ 8 kHz bandwidth
  • 0–252 ms @ 4 kHz bandwidth
  • 0–504 ms @ 2 kHz bandwidth
• Delay Resolution: 2 ms steps
• LFO Speed: 0.05–10 Hz
• LFO Waveform: Triangle
• Input Impedance: 500 kΩ (Mic / Instrument)
• Output Impedance: 10 kΩ
• Equivalent Input Noise: -93 dBm
• Input Types: Microphone, Instrument, Line
• Outputs: Dry Output, Mixed Output
• Remote Control: Footswitch bypass
• Power Requirements: 120 V AC 60 Hz / 220–240 V AC 50 Hz
• Power Consumption: 10–12 W
• Dimensions: 482 × 44 × 205 mm
• Weight: Approx. 3.6 kg

The Maxon HD1000 remains a sought-after vintage digital processor for its unique combination of harmonizer and delay functions. Its ability to generate convincing harmonies, octave effects, ADT, chorus, and creative pitch-based textures—combined with flexible routing options and classic early-1980s digital character—has made it a favorite among collectors, studio engineers, and musicians looking for distinctive vintage digital processing.
