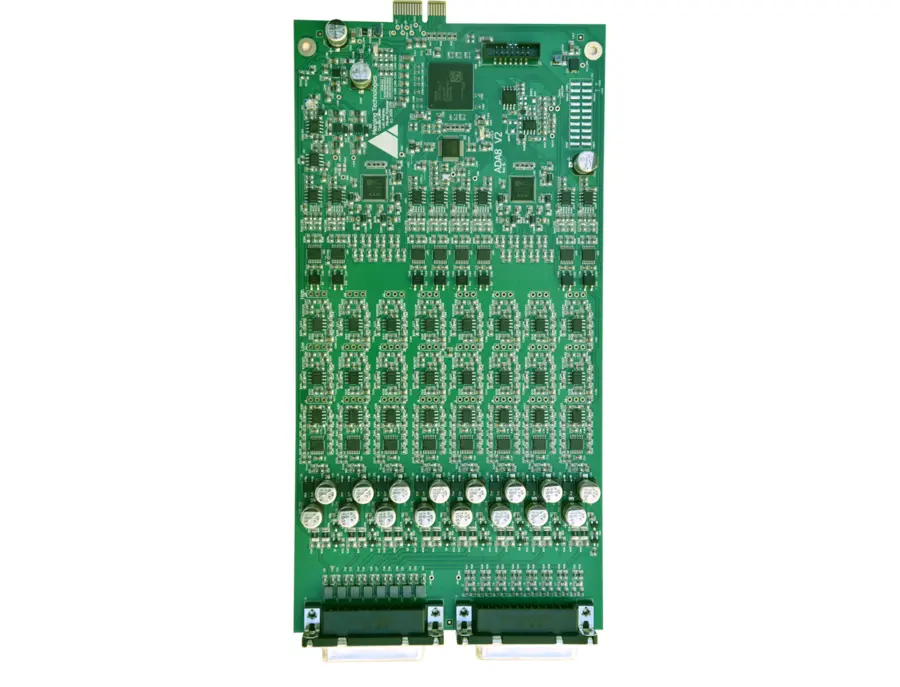

Introducing the Merging Technologies ADA8S, your gateway to unparalleled audio fidelity in studio recording. This versatile AD/DA Mic/Line I/O Card is the perfect addition to your Hapi MkII or Horus networked audio interface, bringing you eight channels of premium, remote-controlled analog I/O. Designed with precision in mind, the ADA8S features Swiss-engineered preamps inspired by the acclaimed Anubis series, ensuring crystal-clear audio capture with up to 66dB of gain.

With sampling rates reaching a remarkable 192 kHz, the ADA8S guarantees that every nuance of your sound is preserved with stunning accuracy. Each channel can seamlessly switch between mic-level and line-level inputs, offering you flexibility in any recording situation. The card’s modular design means it's not just about adding channels; it's about configuring your setup to meet the unique demands of your workflow.

Key controls are accessible remotely, allowing for easy adjustments to phantom power, polarity inversion, low-cut filtering, and impedance on a per-channel basis. The ADA8S also boasts an impressive dynamic range of 139dB on inputs and 125dB on outputs, complemented by auto-mute circuitry for smooth, pop-free power cycling.

Whether you're capturing the subtlety of a live performance or the intricacies of studio production, the ADA8S ensures you're working with some of the finest AD/DA technology available, giving you the confidence to create without compromise.

Key Features:

• 8 channels of premium, remote-controlled analog I/O
• Anubis-inspired mic preamps with 66dB of gain
• Sampling rates up to 192 kHz
• Switchable mic-level and line-level inputs per channel
• Digitally controlled output trims
• Per-channel phantom power, polarity invert, low-cut filter, and impedance adjustments
• Dynamic range: 139dB (inputs), 125dB (outputs)
• Auto-mute circuitry for no-pop power cycling

Product specs

FAQs

What devices is the Merging Technologies ADA8S compatible with?

The Merging Technologies ADA8S is compatible with the Hapi MkII and Horus devices, serving as an I/O extension card for these systems.

How many channels does the Merging Technologies ADA8S support?

The ADA8S supports 8 channels, providing ample input and output options for professional audio setups.

What are the analog connection options on the Merging Technologies ADA8S?

The ADA8S features 1 x DB-25 connector for both analog inputs and outputs, facilitating streamlined connectivity.

What is the maximum sample rate supported by the Merging Technologies ADA8S?

The ADA8S supports a sample rate of up to 192kHz, ensuring high-resolution audio capture and playback.

What bit depth does the Merging Technologies ADA8S operate at?

The ADA8S operates at a 32-bit depth, providing a wide dynamic range and precise audio detail.
