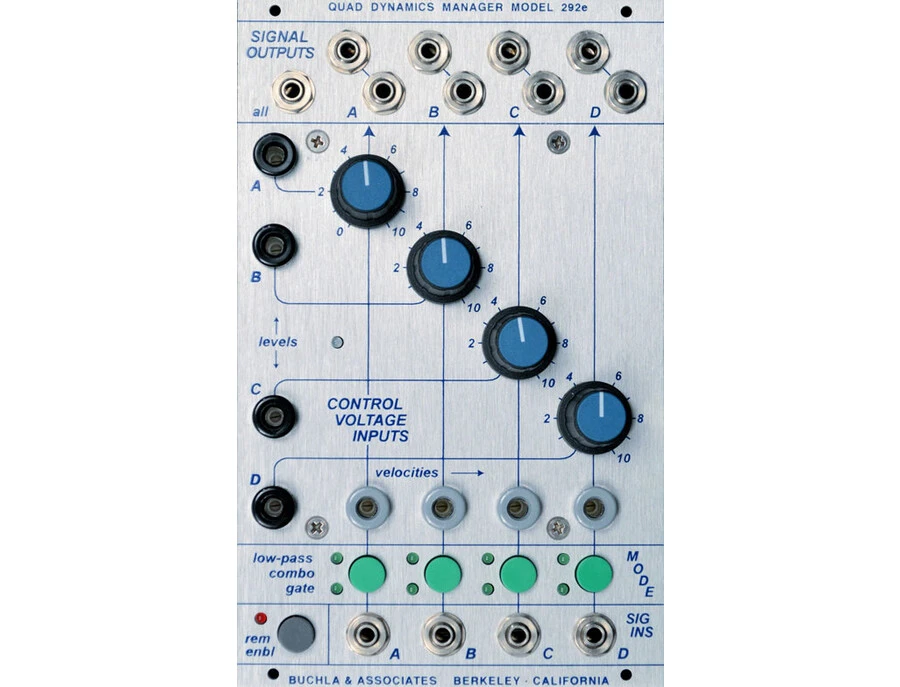

The Buchla 292e Quad Dynamics Manager is an iconic piece of modular synthesizer technology that bridges the gap between traditional synthesis and modern electronic music needs. Building on the legacy of its predecessor, the 292e boasts four independently operating amplifiers, each with voltage-controlled gain ranging from -120dB to +3dB. This feature allows musicians to sculpt their sound with precision, creating complex and dynamic audio landscapes. Uniquely, the 292e incorporates velocity inputs, granting an exceptional level of control over gain dynamics, whether through CV or via the internal MIDI bus when paired with the 225e module.

Each channel features a 3-state switch, offering options for a VCA, VCF, or a combined mode that dynamically adjusts spectral response as the gain changes. This flexibility allows for the creation of rich overtones and textural depth, making the 292e a favorite among sound designers and electronic musicians seeking to push the boundaries of their sonic palette. Designed to be both intuitive and versatile, the module supports storage and recall of settings and presets when used with a compatible preset manager, ensuring your favorite configurations are always at your fingertips.

Key Features:

• Four independently operating amplifiers with voltage-controlled gain (-120dB to +3dB)
• Velocity input for enhanced performance dynamics
• 3-state switch for VCA, VCF, and combination modes
• MIDI control capability via internal bus with 225e
• Settings and presets storage with compatible preset manager (225e or 206e)

Product specs

FAQs

What is the primary function of the Buchla 292e Quad Dynamics Manager?

The Buchla 292e Quad Dynamics Manager functions as a quad low-pass gate, allowing for dynamic control over amplitude and frequency, which is essential for shaping the sound in a modular synthesizer setup.

How many inputs and outputs does the Buchla 292e have?

The Buchla 292e features 4 analog inputs and 9 analog outputs, providing extensive connectivity for complex modular patching.

What type of connectors does the Buchla 292e use for control voltage?

The Buchla 292e uses Buchla Banana connectors for its 8 CV inputs, which are standard in Buchla systems for reliable and flexible patching.

Does the Buchla 292e require a specific power supply?

Yes, the Buchla 292e requires a Buchla Case and Power Supply to operate, ensuring it integrates seamlessly into a Buchla modular system.

Is the Buchla 292e suitable for both analog and digital modular systems?

The Buchla 292e is an analog module designed for use within Buchla modular systems, which are primarily analog, offering unique dynamics control not typically found in digital systems.
