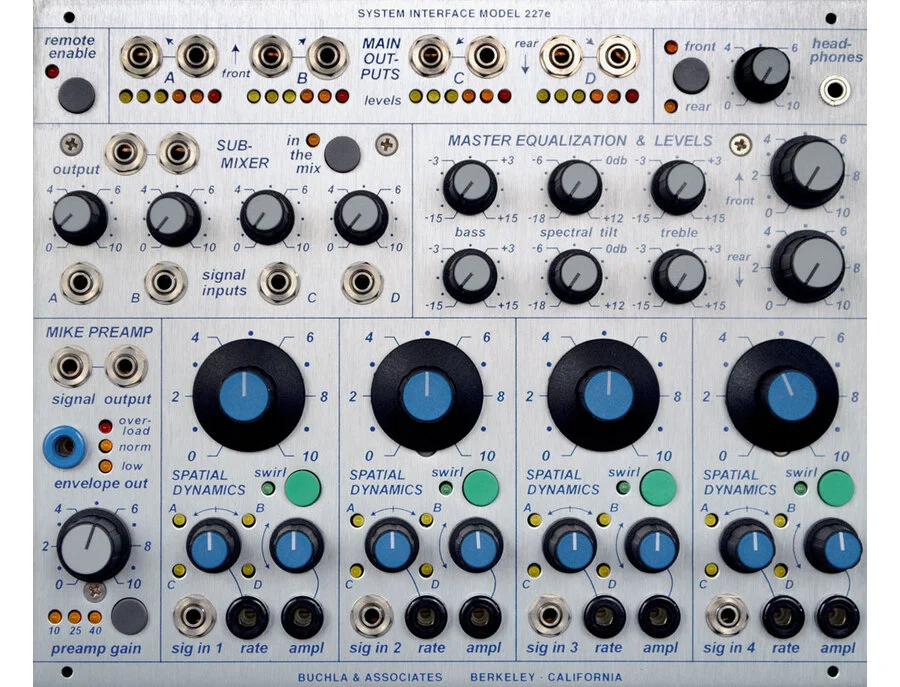

The Buchla 227e System Interface is not just another mixer; it’s a gateway to a quadraphonic soundscape. Perfect for musicians deeply invested in modular synthesis, this module is all about creating a rich, immersive auditory experience. Designed to seamlessly integrate with your Buchla system, the 227e transforms how you perceive sound, allowing for intricate spatial dynamics.

With the ability to manage audio across a 4-channel space, you can automate audio motion using control voltages, giving you precise control over the rate, direction, and radius of your sound. The quadraphonic functionalities are complemented with an equalizer for both front and rear channels, ensuring your sound is as balanced as it is expansive. Meanwhile, the spectral tilt function adjusts for the high treble energy often required in such setups, with individual EQ masters available for fine-tuning.

In addition to its spatial capabilities, the “Mike Preamp” brings a touch of ingenuity with its envelope detector and adjustable gain settings. Whether you're using it as an independent submixer or as an extension of your existing channels, the dedicated submixer ensures that every nuance is captured and presented with clarity. With its roots in Buchla's innovative legacy, the 227e System Interface is a must-have for any modular synth enthusiast aiming to push the boundaries of sound.

Key Features:

• Designed for quadraphonic mixing, creating immersive audio environments
• Spatial dynamics can be manually controlled or automated via control voltages
• Includes a dedicated submixer for versatile channel management
• Equipped with a microphone preamp featuring envelope detection and gain control
• Compatible with Buchla 3.58mm TiniCables for optimal performance

Product specs

FAQs

What is the primary function of the Buchla 227e System Interface?

The Buchla 227e System Interface is designed to manage audio routing and spatial processing within a Buchla modular synthesizer setup, providing comprehensive control over audio distribution and localization.

How many inputs and outputs does the Buchla 227e System Interface have?

The Buchla 227e System Interface features 9 analog inputs and 11 analog outputs, along with a dedicated headphone output for monitoring.

Does the Buchla 227e System Interface support control voltage (CV) connections?

Yes, the Buchla 227e System Interface supports control voltage with 8 CV inputs and 1 CV output, using Buchla Banana connectors for integration with other modular components.

Is the Buchla 227e System Interface compatible with non-Buchla systems?

The Buchla 227e System Interface is specifically designed for Buchla systems, utilizing Buchla Banana connectors, which may require adapters for use with non-Buchla modular setups.

What power requirements does the Buchla 227e System Interface have?

The Buchla 227e System Interface requires a Buchla case and power supply for operation, as it does not include its own power source.
