The Ultimate Analog Delay

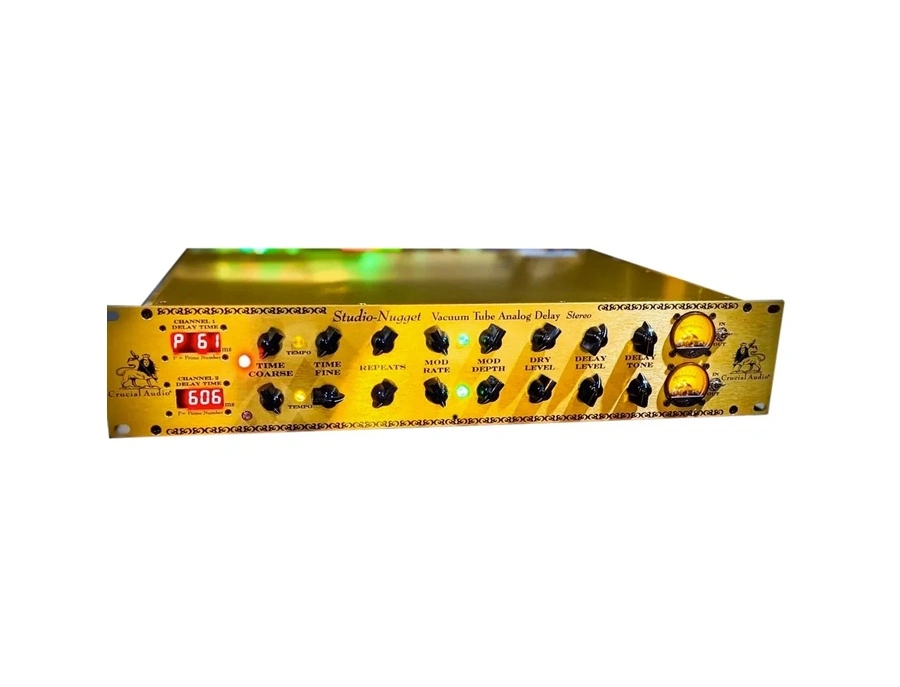

Upgrade your sound system with The Studio-Nugget Stereo Vacuum Tube Analog Delay. Amazing ‘tape-like’ pure analog tonality, and a feature set that will blow your mind. Sweeten your mixes with Crucial Audio’s world famous analog delay (BBD) circuitry driven by Four Transformer Coupled Class A Vacuum Tube Preamp stages. Prime Number & Tempo Indicators and Analog VU Meters guide you towards the ultimate echoes and sonic excellence for your mix!

FEATURES:

• Dual LED Delay Time Displays, with Prime Number Indicators
• Dual Analog VU Meters with Selectable Input & Output Monitors
• Transformer Balanced Inputs & Outputs on XLR connectors (+4dBu)
• Low Noise High Voltage Class A Vacuum Tube Preamps
• BBD Analog Delay with Dual Analog Clocks @ 1ms resolution range from 61ms to greater than 600ms
• Dual Coarse & Fine Delay Time Controls
• Tempo LEDs for Optical rhythm synchronization
• Dual Modulation Depth & Rate Controls plus Modulation Rate LEDs
• Dual Dry Level, Repeats, Delay Level & Tone Controls
• Mono/Stereo Input Mode Selector (on Rear Panel)
• Gold Anodized Rugged 19″ 2U Rackmount Enclosure
• 115/230Vac 50/60Hz World Wide Power Input featuring Independent Medical Grade Power Supplies
• 1 Year Limited Warranty

*A Crucial Audio Tech Note About Prime Numbers & Delay Times: *

Professional Producers & Recording Engineers have known that Delay Times/Echoes set to Prime Numbers deliver a sonic difference in overall Echo clarity & level in the Mix. It can be an effective technique at any song tempo.

A prime number can only be divided by 1 and itself. Thus less likely to create phase cancellations of fundamental frequencies during audible intermodulation events. One example is a multi-tone of 250Hz + 1kHz Dry & Delayed Sine Waves (summed with delay range of 80 – 120ms) @ 0dBv & -10dBv. Measurements on our Stanford Research Systems SR-760 FFT spectrum analyzer illustrate that a change of 1ms from a prime number can yield as much as -8dBv in delay gain at the 1kHz carrier during the 250Hz intermodulation. Hence the audible difference of reported echo clarity and level within the frequency feast of the ‘Mix’.
