Step into the world of modular synthesis with the Noise Engineering Pons Asinorum, a versatile 4-channel envelope generator and LFO that redefines compact power. This 6HP module is a masterclass in efficiency, offering flexible CV modulation without sacrificing valuable rack space. Each of the four channels operates independently, allowing you to seamlessly modulate multiple CV sources simultaneously. Whether you're crafting evolving soundscapes or injecting rhythmic variations into your performances, Pons Asinorum is equipped to handle it all.

The module's multifaceted design includes envelope generation, sample and hold capabilities, and LFO functions that you can customize per channel. Effortlessly switch between three ramp modes—up, up/down, and down—via an intuitive mode selector to instantly vary your sonic output. The per-channel CV inputs grant you the freedom to adjust modulation lengths, enabling more dynamic and intricate compositions.

For those spontaneous moments during live sets, the hit button is your best friend, allowing manual triggering of CV cycles or LFO phases with just a touch. Plus, its capability for true Quadrature LFO operations means envelope cycles are 90° out of phase, offering an extra layer of modulation complexity that sets your sound apart. Whether you're a Eurorack novice or a seasoned synthesist, the Pons Asinorum is a robust tool designed to inspire creativity and expand your sonic horizons.

Key Features:

• 6HP module with flexible, powerful CV modulation
• 4-channel structure for individuated operation of discrete sources
• Multimode functionality: envelope generation, sample & hold, LFO
• 3 ramp modes: up, up/down, down
• CV control for cycle duration adjustments
• Hit button for manual CV cycle or LFO phase triggering
• Capable of true Quadrature LFO operations with 90° phase offset

Product specs

FAQs

What is the primary function of the Noise Engineering Pons Asinorum?

The Noise Engineering Pons Asinorum is a 4-channel envelope generator and low-frequency oscillator (LFO) designed for modular synthesizers, providing flexible modulation sources for shaping sounds.

How does the Pons Asinorum integrate with other Eurorack modules?

The Pons Asinorum connects via 1/8" CV inputs and outputs, allowing seamless integration with other Eurorack modules to modulate parameters such as pitch, filter cutoff, and more.

What are the power requirements for the Noise Engineering Pons Asinorum?

The Pons Asinorum requires a Eurorack case and power supply with a draw of +12V/60mA and -12V/50mA.

Can the Pons Asinorum be used as an LFO and envelope generator simultaneously?

Yes, the Pons Asinorum can function as both an LFO and envelope generator, offering versatile modulation options across its four channels.

What controls are available on the Pons Asinorum for shaping modulation?

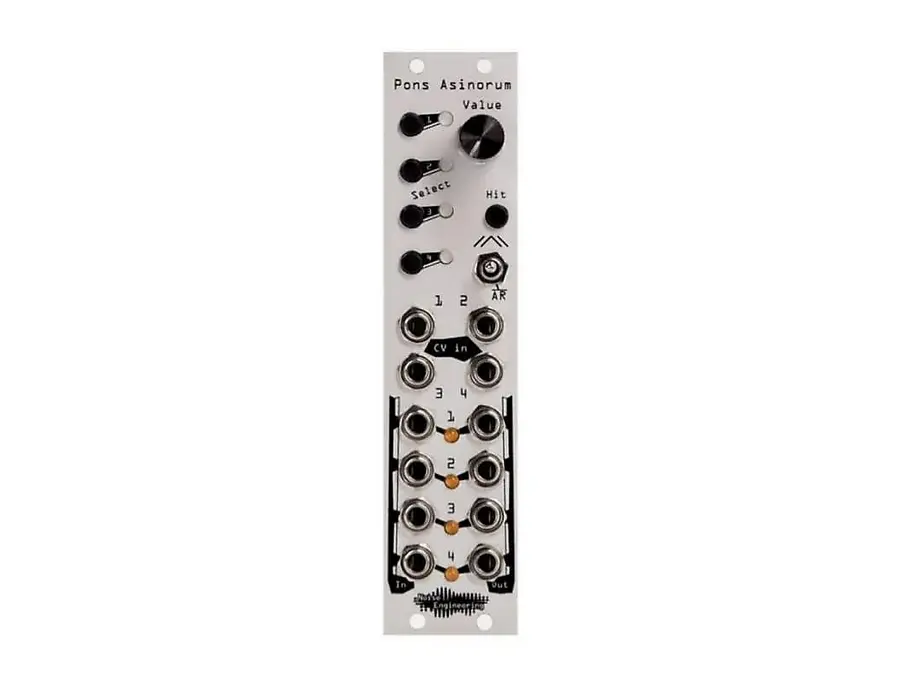

The Pons Asinorum features a Value Knob, AR Switch, Channel Select, and Hit button for precise control over its modulation outputs.
