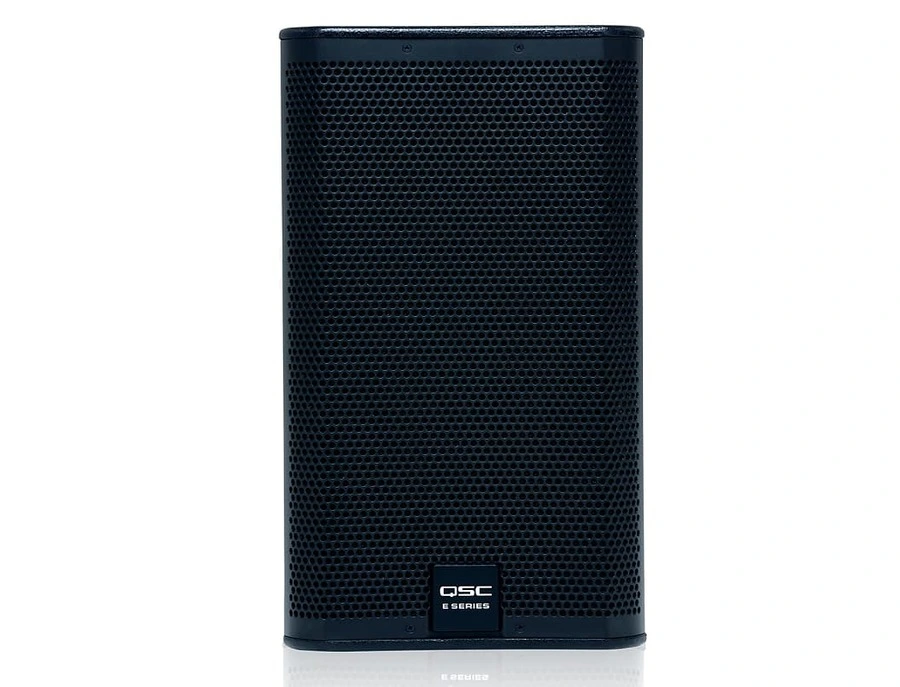

The QSC E110 2-Way 1200-Watt Passive Loudspeaker is your versatile companion for both live performances and permanent installations. This compact yet powerful speaker is armed with a 10-inch die-cast frame woofer and a 2.5-inch voice coil, providing robust sound with a deep, full-bodied bass. Its trapezoidal design and 85-degree wide DMT (Directivity Matched Transition) waveguide ensure expansive coverage, making it suitable for any venue setup.

Engineered for flexibility, the E110 can function seamlessly as both a main PA speaker and a stage monitor. When used as a monitor, its 55-degree angle positioning ensures optimal sound delivery right to the performer. Installation options are diverse, with a dual-angle 35mm pole socket that allows vertical mounting or a 10-degree down-angle setup to enhance audience coverage and minimize wall reflections.

The E110 is compatible with QSC GXD and PLD amplifiers and TouchMix digital mixers, enabling advanced signal processing for custom sound tuning. Its rugged plywood construction, coated in tour-grade textured paint, ensures durability on the road. Whether you're powering through a live gig or setting up for a long-term installation, this speaker offers the reliability and performance that QSC is renowned for.

Key Features:

• 1200-watt peak power handling
• 10-inch die-cast frame woofer with a 2.5-inch voice coil
• 85-degree DMT waveguide for wide coverage
• Dual-angle 35mm pole socket for flexible mounting
• Compatible with QSC GXD and PLD amplifiers, and TouchMix digital mixers
• Rugged plywood construction with tour-grade textured paint
• Suitable for both main PA and stage monitor use

Product specs

FAQs

What type of power does the QSC E110 10" Passive Loudspeaker require?

The QSC E110 is a passive loudspeaker, meaning it requires an external amplifier to power it. It is not self-powered.

Is the QSC E110 suitable for use as a stage monitor?

Yes, the QSC E110 can be used as a stage monitor. It features a floor wedge design and can be mounted on a pole, offering flexibility for live sound applications.

What is the frequency response of the QSC E110 loudspeaker?

The QSC E110 has a frequency response of 68Hz to 20kHz (-6 dB), providing a wide range suitable for various live sound applications.

How loud can the QSC E110 loudspeaker get?

The QSC E110 can reach a maximum peak SPL of 126 dB at 1 meter, making it capable of delivering high sound pressure levels for live performances.

What are the input options available on the QSC E110?

The QSC E110 offers 2 speakON (NL4) inputs and a barrier strip, allowing for flexible connectivity with different audio systems.
