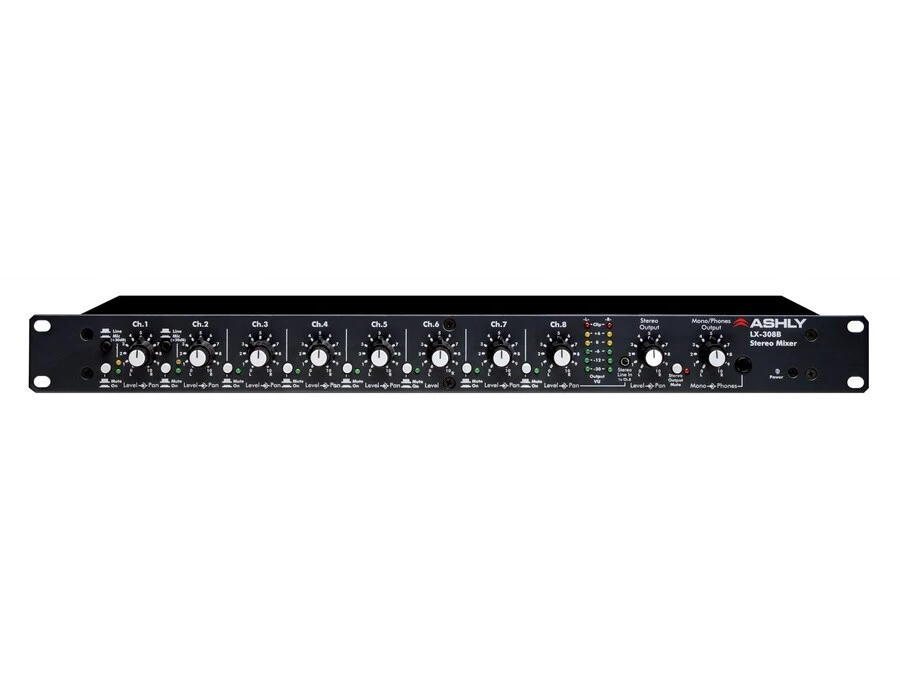

The Ashly LX308b Line Mixer is a versatile tool for any audio setup, whether you're in a recording studio, conference room, or out in the field. This true stereo 8-channel line mixer can also transform into a 16-channel mono mixer, offering flexibility no matter the scenario. Occupying just a single rack space, the LX308b is compact yet powerful, making it ideal for environments where space is at a premium. Its universal switching power supply ensures compatibility worldwide, allowing you to take this mixer anywhere without hassle.

Each channel features a pair of balanced 1/4" TRS line inputs with level and pan controls, making it easy to dial in the perfect mix. Channels one and two even offer switchable mic or line level inputs, eliminating the need for additional preamps. The front panel hosts LED meters that can switch between input sums or Left and Right stereo outputs, so you're always in the know about what your mix is doing. The mixer also features a convenient headphone output with its own level control for on-the-fly monitoring.

Outputs are equally flexible with servo-balanced Left and Right channels, as well as a mono summed output. For those looking to expand their setup, pre-master sub inputs and outputs allow for seamless integration with other mixers. Built to withstand the rigors of professional use, the LX308b is not just another piece of gear; it's a reliable partner in any audio endeavor.

Key Features:

• 8 stereo or 16 mono balanced inputs
• Selectable mic or line inputs for channels 1 and 2
• Balanced 1/4" TRS inputs and outputs
• LED meters with clip indicators for monitoring
• Individual channel and stereo output mute switches
• Stereo headphone output with level control
• Pre-master sub inputs and outputs
• Universal power supply (100 - 240VAC)
• Compact rackmountable design

Owner's manual

Product specs

FAQs

How many channels does the Ashly LX308b Line Mixer offer?

The Ashly LX308b Line Mixer provides 16 channels, with 8 stereo and 16 mono inputs, allowing for versatile audio mixing in various professional settings.

Can the Ashly LX308b Line Mixer be rack-mounted?

Yes, the Ashly LX308b Line Mixer is designed to be rack-mounted, occupying a single rack space with dimensions suitable for standard rack installations.

What type of inputs does the Ashly LX308b Line Mixer support?

The Ashly LX308b Line Mixer features 16 line inputs via 1/4" jacks, along with 2 additional 1/4" inputs for sub-mixing, providing flexible connectivity options for various audio sources.

Does the Ashly LX308b Line Mixer have a headphone output?

Yes, the Ashly LX308b Line Mixer includes a headphone output, allowing for direct monitoring of the mixed audio signal through a 1/4" jack.

What are the main output options on the Ashly LX308b Line Mixer?

The Ashly LX308b Line Mixer offers main outputs via 2 TRS jacks and a mono output through a 1/4" jack, ensuring compatibility with a wide range of audio systems.
