Description

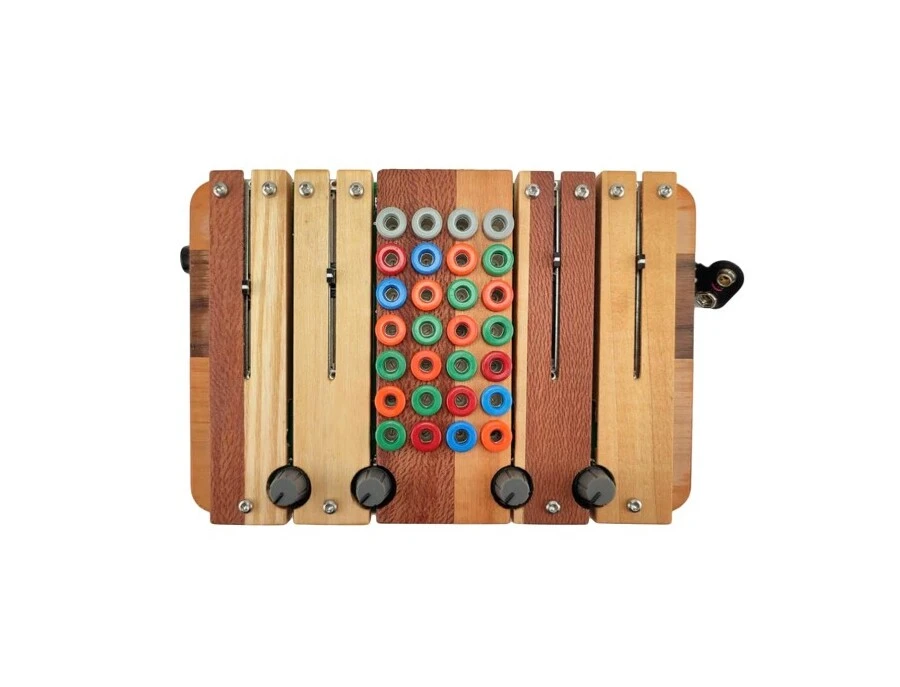

The Tetrax Organ follows a series of electronic instruments based on touch. It is a direct development of the Tetrazzi. By pressing the four wooden boards, sounds can be coaxed from the same number of oscillators. Each individual oscillator is equipped with a slider for fine tuning, which is embedded in the respective board. The instrument is equipped with two master pitch and two master chaos controls. The latter allow the sounds of the instrument, which are based on pure sawtooth waves, to turn into a nest of noise by amplifying the modulation from one oscillator to the next in a circular sequence. The reason for the two different controls being present in duplicate: The Tetrax is primarily about modulating the timbre by separately changing the rising and falling edges of triangular waves. There is therefore a control for the master pitch and master chaos, one for the rising and the falling part. Basically, the Tetrax is designed for funky bass and complex tonality, the Sidrax Organ for sweet melodies. Of course, both have noise available at all times!

Its 28 banana cable sockets are modulation points arranged in four columns - one for each wooden board. Their position is shifted diagonally so that the inputs are placed close to the outputs. This is to make it playable by touch: you can remove the metal pins from banana plugs, insert them into the sockets and touch them directly with your fingers to patch the instrument gesturally. Sockets with the cold colors blue, green and gray are inputs. Outputs are the warm colors: red and orange. The gray sockets are inputs for the rotary controls: the two left-hand sockets vary the master pitch, the right-hand ones the position of the master chaos controls. The color assignment of the individual wooden boards is as follows:

Two orange sockets output the pressing and releasing of the respective board.

A red socket outputs the pure triangular wave of the respective oscillator.

The two green sockets on each board are "glitch" inputs. These ensure that connections are made between the boundary conditions of one oscillator and the output of another. A type of modulation inspired by circuit bending techniques.

A blue socket is used to frequency modulate each individual oscillator.

On the back of the Tetrax Organ there is a minijack socket that outputs the audio signal in stereo: During a press-release cycle, each of the wooden boards outputs the corresponding audio signal on different channels. In addition to this audio output, the Tetrax Organ has a power switch, optionally built-in batteries or a clip for a 9-volt block.

The Live Room

The Live Room

One Take - Ciat Lonbarde [ Tetrax Organ ]

Video thumbnail for One Take - Ciat Lonbarde [ Tetrax Organ ] by The Live Room

One Take - Ciat Lonbarde [ Tetrax Organ ]

The Live Room

The Live Room

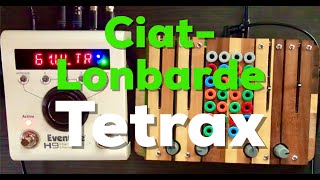

Video thumbnail for Ciat-Lonbarde Tetrax by Robin Rimbaud-Scanner

Ciat-Lonbarde Tetrax

Robin Rimbaud-Scanner

Robin Rimbaud-Scanner

Reviews

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Ciat Lonbarde Tetrax.

Use cases and applications

  • The Tetrax is noted for its funky sound, making it a suitable entry point for exploring the unique world of Ciat Lonbarde instruments.

    Source
  • The Cocoquantus is frequently used as a looper, known for generating "happy accidents" and adding grit and drive to compositions.

    Source

User experience

  • Owners describe the challenge and reward of mastering the Deerhorn Organ, likening its play style to that of a Theremin, which requires significant arm movement.

    Source
  • Tetrax's stereo-mini output provides unique channel separation during press/release cycles, enhancing spatial sound experimentation.

    Source

Features and functionality

  • The Sidrax is highlighted for its deep bass capabilities, offering a lyrical and expressive playing experience akin to acoustic instruments.

    Source
  • Tetrax's dual master chaos knobs allow separate modulation of upslope and downslope, creating complex timbres beyond basic triangle waves.

    Source
  • Sidrax's seven wooden bars enable nuanced control over oscillators, with embedded fine-tuning sliders for each bar.

    Source

Value and pricing

  • While considered expensive, Ciat Lonbarde gear is praised for its unique design and sound, offering a distinctive and rewarding musical experience.

    Source

Comparisons

  • The sound and play style of Ciat Lonbarde instruments differ significantly from Soma gear, catering to those seeking a distinct auditory experience.

    Source
  • Sidrax's focus on melodic triangle waves contrasts with Tetrax's emphasis on funky bass and timbre modulation.

    Source
