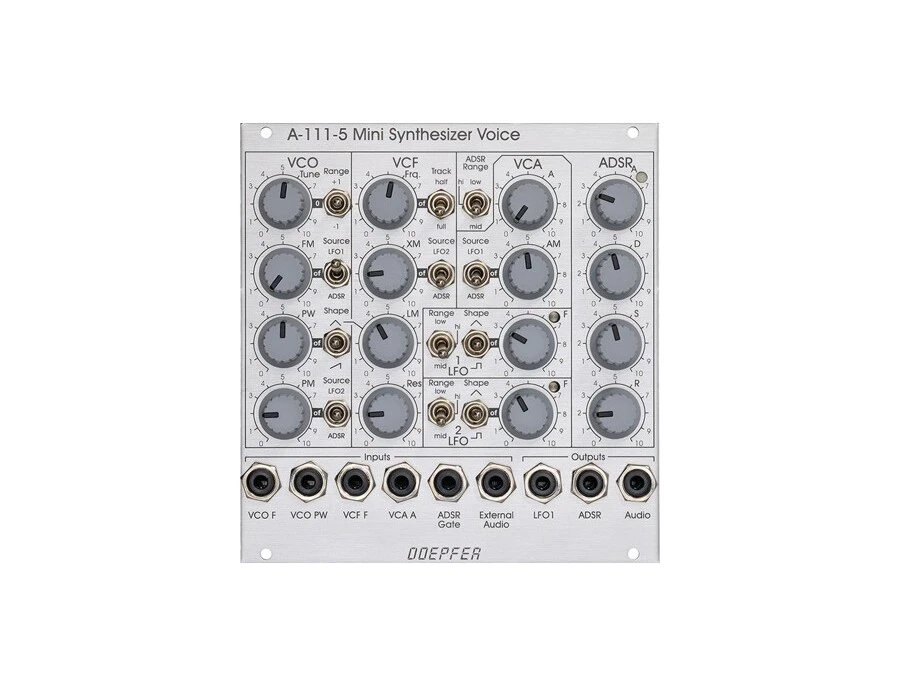

Unleash your creativity with the Doepfer A-111-5 Synthesizer Voice, a compact yet powerful monophonic synthesizer module designed for the ambitious musician and sound designer. Whether you're a seasoned modular synth enthusiast or a budding electronic artist, this Eurorack module brings a rich palette of analog warmth and dynamic sound-shaping capabilities right to your fingertips.

At the heart of the A-111-5 lies a versatile VCO capable of generating sawtooth, pulse, and triangle waveforms, with an adjustable pulse width for added tonal flexibility. Dive deeper into sound exploration with its FM capabilities via LFO1 or the ADSR envelope, enabling you to sculpt and modulate your soundscapes with precision. The module's low pass filter, featuring a steep -24 dB/octave slope and resonance, ensures you can achieve everything from smooth, creamy tones to aggressive, biting textures.

Performance is further elevated with two LFOs, each offering triangle and square waveforms across three selectable frequency ranges, and an ADSR envelope boasting three time settings for ultimate control over your sound evolution. The addition of linear and exponential filter FM offers more pathways to creative expression, making the Doepfer A-111-5 a must-have tool for any serious modular setup.

Key Features:

• Complete monophonic synthesizer voice
• VCO with sawtooth, pulse, and triangle waveforms
• Adjustable pulse width with PWM CV input and attenuator
• FM via LFO1 or ADSR envelope
• VCO frequency range: approximately 30 - 10000 Hz
• Low pass filter (-24 dB/oct.) with resonance
• Filter tracking switchable in two steps
• Linear and exponential filter FM
• VCA with AM via LFO1 or ADSR envelope
• ADSR envelope with 3 selectable time ranges
• 2 LFOs each with triangle and square waveforms and three selectable frequency ranges
• Outputs for LFO1, ADSR, and audio
• Current consumption: 80 mA (+12 V) / 50 mA (-12 V)
• Width: 24 TE
• Depth: 40 mm

Product specs

FAQs

Is the Doepfer A-111-5 Synthesizer Voice polyphonic or monophonic?

The Doepfer A-111-5 Synthesizer Voice is monophonic, meaning it can play one note at a time, which is ideal for basslines and lead sounds.

What type of oscillator does the Doepfer A-111-5 use?

The Doepfer A-111-5 Synthesizer Voice features a high-quality analog VCO (Voltage Controlled Oscillator) that provides rich and dynamic sound.

Does the Doepfer A-111-5 Synthesizer Voice integrate well with other Eurorack modules?

Yes, the Doepfer A-111-5 is designed to integrate seamlessly with other Eurorack modules, providing flexibility in modular setups.

What are the standout features of the Doepfer A-111-5's sound engine?

The Doepfer A-111-5 offers a classic analog sound with features such as a VCO, VCF, VCA, and ADSR envelope, providing a comprehensive synthesis experience.

Is the Doepfer A-111-5 suitable for beginners in modular synthesis?

While the Doepfer A-111-5 is user-friendly, it is best suited for those with some experience in modular synthesis due to its complexity and potential for deep sound design.
