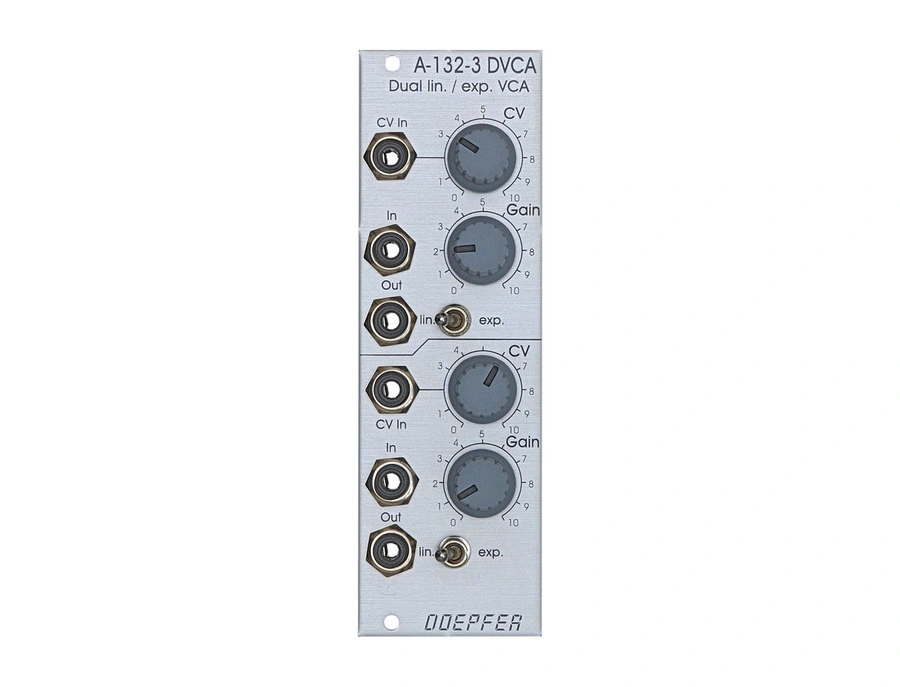

Elevate your modular synth setup with the Doepfer A-132-3 DVCA—an indispensable tool for any Eurorack enthusiast. This dual voltage-controlled amplifier (VCA) module offers unparalleled flexibility with its ability to handle both audio and control voltage (CV) signals. Perfect for dynamic sound sculpting, the A-132-3 allows you to switch seamlessly between linear and exponential response curves, giving you the creative control to craft the perfect sonic texture. Whether you're modulating complex patches or simply amplifying signals with precision, this module's robust performance and slim 8HP design ensure it fits snugly into any Eurorack configuration.

Beyond its compact architecture, the A-132-3 is engineered to accommodate a wide signal range, processing up to 16 volts without distortion. The module's DC-coupled inputs and outputs further extend its versatility, making it a key player in any modular rig. With low power consumption and a depth of just 50mm, it's a space-friendly powerhouse that won’t overload your system.

Key Features:

• Dual VCA module for Eurorack
• Switchable linear and exponential control scaling
• DC-coupled inputs and outputs for processing both audio and CV signals
• Handles up to 16-volt signal range without distortion
• Size: 8HP, depth: 50mm
• Power usage: +30mA (+12V) / -10mA (-12V)

Product specs

FAQs

What type of VCA is the Doepfer A-132-3?

The Doepfer A-132-3 is a dual linear/exponential VCA, offering both linear and exponential response modes for versatile modulation and amplitude control in a modular synth setup.

How does the Doepfer A-132-3 integrate into a Eurorack system?

The Doepfer A-132-3 is an 8HP Eurorack module that requires ±12V DC power from a Eurorack case. It features 2 x 1/8" inputs and outputs, along with 2 CV inputs for modulation.

Can the Doepfer A-132-3 handle both audio and CV signals?

Yes, the Doepfer A-132-3 is designed to process both audio and control voltage (CV) signals, making it a versatile component for shaping and modulating sound within a modular system.

What is the power consumption of the Doepfer A-132-3?

The Doepfer A-132-3 consumes 30mA of power and requires a ±12V DC power supply, which is standard for Eurorack systems.

Is the Doepfer A-132-3 suitable for dynamic sound shaping?

Yes, the dual linear/exponential VCA design of the Doepfer A-132-3 allows for dynamic sound shaping, offering flexibility in controlling amplitude with different response curves.
