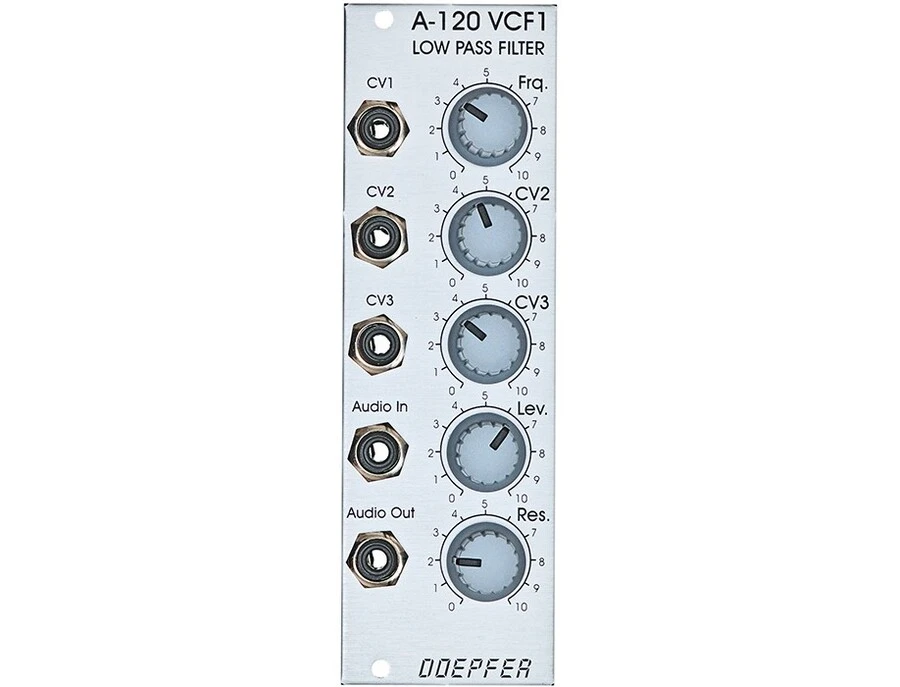

Step into the world of classic synth sounds with the Doepfer A-120 Low Pass Filter, a staple for any Eurorack modular synthesizer setup. This 24dB transistor ladder filter encapsulates the essence of the legendary Moog sound, offering a harmonic richness that defined an era of music. With its voltage-controlled design, the A-120 seamlessly filters out high-frequency components, allowing low frequencies to pass through unscathed, delivering that iconic warm and resonant audio signature.

The A-120 is not just about nostalgia; it's about flexibility. Featuring three CV inputs, this module provides ample opportunity for creative modulation — whether you're manually adjusting the cutoff frequency or experimenting with filter modulation using an LFO. Its resonance control is a standout feature, enabling the module to reach self-oscillation and function as a sine wave oscillator. This adds an additional layer of versatility, making it a dual-purpose tool in your sonic arsenal.

Compact yet powerful, the A-120’s design ensures it fits snugly into your Eurorack setup without compromising on performance. Whether you're a seasoned synth enthusiast or a newcomer to the modular scene, the Doepfer A-120 Low Pass Filter is an essential module for crafting rich, dynamic soundscapes.

Key Features:

• 24dB transistor ladder filter for Eurorack modular synthesizers
• Voltage-controlled low-pass filter with manual and CV modulation options
• Adjustable resonance reaching self-oscillation for use as a sine wave generator
• Compact size: 8HP wide, 40mm deep
• Power usage: +30mA (+12V), -20mA (-12V)

Product specs

FAQs

What is the function of the Doepfer A-120 Low Pass Filter in a modular synth setup?

The Doepfer A-120 Low Pass Filter is designed to remove high frequencies above a certain cutoff point, allowing only the lower frequencies to pass through. This creates a smoother, warmer sound by filtering out the higher harmonics.

How many HP does the Doepfer A-120 Low Pass Filter require in a Eurorack setup?

The Doepfer A-120 Low Pass Filter requires 8HP of space in a Eurorack modular synthesizer case.

Is the Doepfer A-120 Low Pass Filter compatible with all Eurorack power supplies?

Yes, the Doepfer A-120 Low Pass Filter is compatible with standard Eurorack power supplies, but it requires a Eurorack case and power supply to operate.

What is the depth of the Doepfer A-120 Low Pass Filter module?

The depth of the Doepfer A-120 Low Pass Filter module is 1.58 inches (40.3mm), making it suitable for most Eurorack cases.
